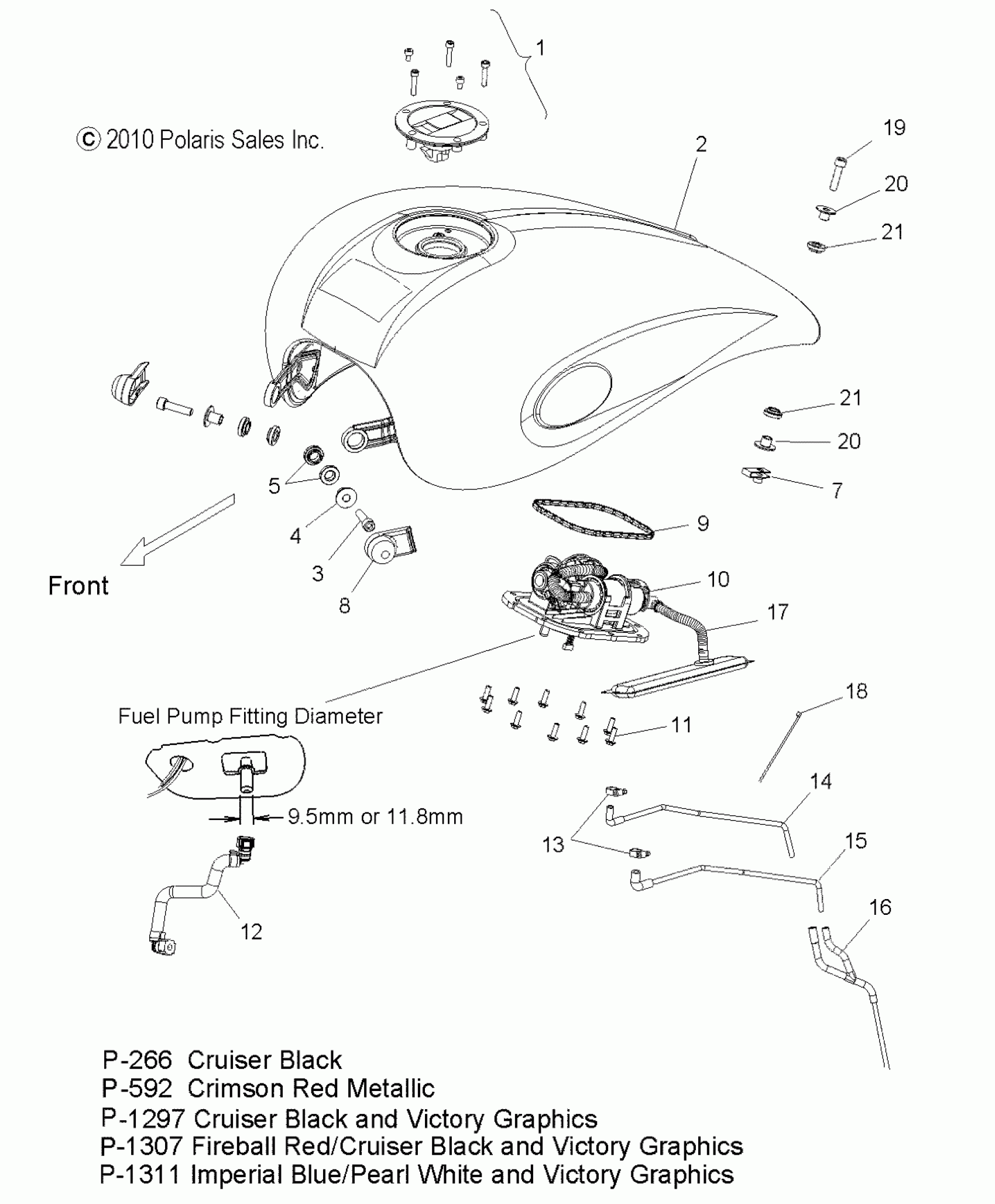

Polaris VEGAS/8 BALL/NESS ALL OPTIONS - V11GA36/GB36/GC36 BODY, FUEL TANK ASM. - V11GA36/GB36/GC36 ALL OPTIONS (49VICFUEL11VGS) Diagram

#

Description
Price

1

ASM., IGNITION SWITCH/FUEL CAP, BLACK

4012376-266

$285.62

1

Asm., Ignition/Fork Lock, Int'l, Black [Int'l]

4012377-266

$374.99

1

SCREW

7518086

$5.56

1

SCREW

7517515

$8.71

1

SCREW

7517845

$5.56

2

TANK, FUEL, SPINE

1018003-266

Unavailable

2

Tank, Fuel, Spine

1018003-1311

Unavailable

2

Tank, Fuel, Spine

1018003-592

$2,059.99

2

Tank, Fuel, Spine [Intl]

1018003-1307

$2,504.99

2

Tank, Fuel, Spine [NESS]

1018003-1297

$2,642.99

3

SCREW

7517946

$7.14

4

Bushing, Flange

5137570

$39.99

5

Bushing

5412480

$3.17

7

U-NUT

7547233

$10.32

8

COVER, MOUNT, LH

5412414

$32.37

8

COVER, MOUNT, RH

5412415

$32.37

9

SEAL, FUEL, MOLDED

5413346

$23.81

10

PUMP, FUEL

2521169

$409.99

11

SCREW

7518923

$0.79

12

Line, Fuel, Tank to Fuel Rail [For 11.8 mm Fuel Tank Fitting]

5414150

Unavailable

12

Line, Fuel, Tank to Fuel Rail [For 9.5 mm Fuel Tank Fitting]

5413413

$89.03

13

CLAMP, HOSE

7081151

$7.14

14

LINE, WATER DRAIN

5435764

Unavailable

15

LINE, FUEL VENT

5437376

Unavailable

16

LINE, WATER/FUEL TO GROUND

5435771

$71.41

17

ASM., FILTER, FUEL

2520909

$114.99

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

SCREW

7517946

$7.14

20

Bushing, Flange

5137570

$39.99

20

Bushing, Flange

5137570

$39.99

21

BUSHING, FLANGE, RUBBER

5413491

Unavailable

21

BUSHING, FLANGE, RUBBER

5413491

Unavailable
