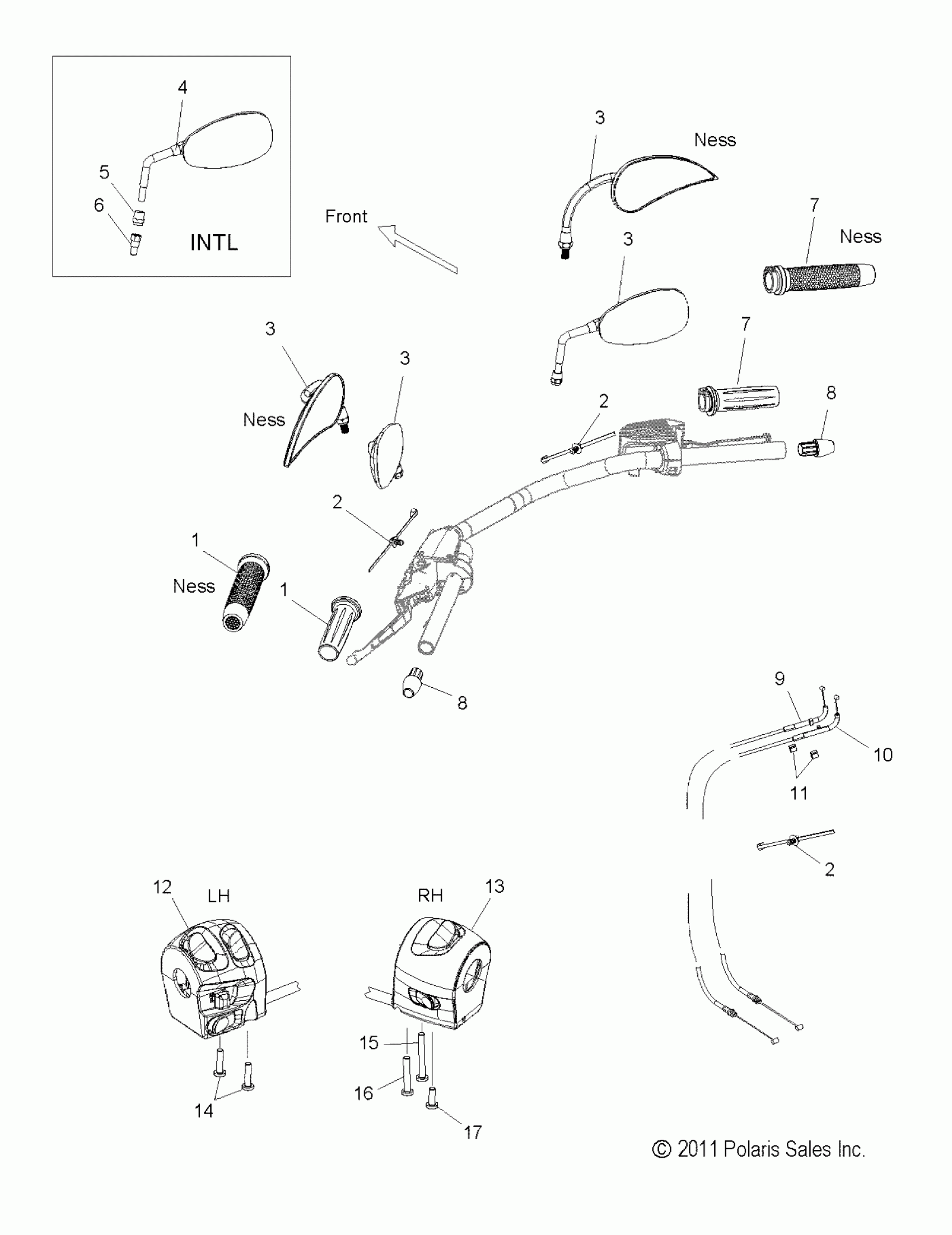

Polaris VEGAS 8-BALL ALL OPTIONS - V13GA36 STEERING, CONTROLS and MIRRORS - V13GA36EA/NA/NAA/NAC (49VICMIRRORS12VGS) Diagram

#

Description
Price

1

GRIP, HANDLEBAR, 1 INCH, LH

5413019

$36.41

1

GRIP, HANDLEBAR, 1 INCH, LH

5413019

$36.41

2

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

2

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

2

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

3

ASM., MIRROR, RH, BLACK [INCL. JAM NUT]

2633691-266

$119.05

3

ASM., MIRROR, LH, BLACK [INCL. JAM NUT]

2633690-266

$119.05

3

NUT, JAM, MIRROR, BLACK

7547397-266

$9.52

3

ASM., MIRROR, RH, BLACK [INCL. JAM NUT]

2633691-266

$119.05

3

ASM., MIRROR, LH, BLACK [INCL. JAM NUT]

2633690-266

$119.05

3

NUT, JAM, MIRROR, BLACK

7547397-266

$9.52

3

ASM., MIRROR, RH, BLACK [INCL. JAM NUT]

2633691-266

$119.05

3

ASM., MIRROR, LH, BLACK [INCL. JAM NUT]

2633690-266

$119.05

3

NUT, JAM, MIRROR, BLACK

7547397-266

$9.52

3

ASM., MIRROR, RH, BLACK [INCL. JAM NUT]

2633691-266

$119.05

3

ASM., MIRROR, LH, BLACK [INCL. JAM NUT]

2633690-266

$119.05

3

NUT, JAM, MIRROR, BLACK

7547397-266

$9.52

4

ASM., MIRROR, LH, BLACK [INCL. JAM NUT][INT'L]

2877740-266

$119.05

4

ASM., MIRROR, RH, BLACK [INCL. JAM NUT][INT'L]

2877741-266

Unavailable

5

NUT, MIRROR POST, BLACK [1 PER MIRROR][INT'L]

7547455-266

$119.05

6

NUT, JAM, MIRROR, LH THREAD, BLACK [1 PER MIRROR][INT'L]

7547456-266

$9.52

7

GRIP, HANDLEBAR, 1 INCH, RH

5413501

$36.41

7

GRIP, HANDLEBAR, 1 INCH, RH

5413501

$36.41

8

CAP, HANDLEBAR

5437103

$31.56

8

CAP, HANDLEBAR

5437103

$31.56

9

CABLE, THROTTLE, PULL

7081452

$67.46

10

CABLE, THROTTLE, PUSH

7081448

$72.84

11

CLIP, THROTTLE CABLE

5433039

$9.52

12

SWITCH, CONTROL, LH, BLACK

4012119-067

$189.99

13

SWITCH, CONTROL, RH, BLACK

4011357-067

$217.84

14

SCREW, 20MM, BLACK

7517816

$29.99

15

SCREW, 55MM [BLACK]

7518890

$29.99

16

SCREW, 40MM [BLACK]

7518888

$6.99

17

SCREW, 12MM [BLACK]

7518886

$3.97
