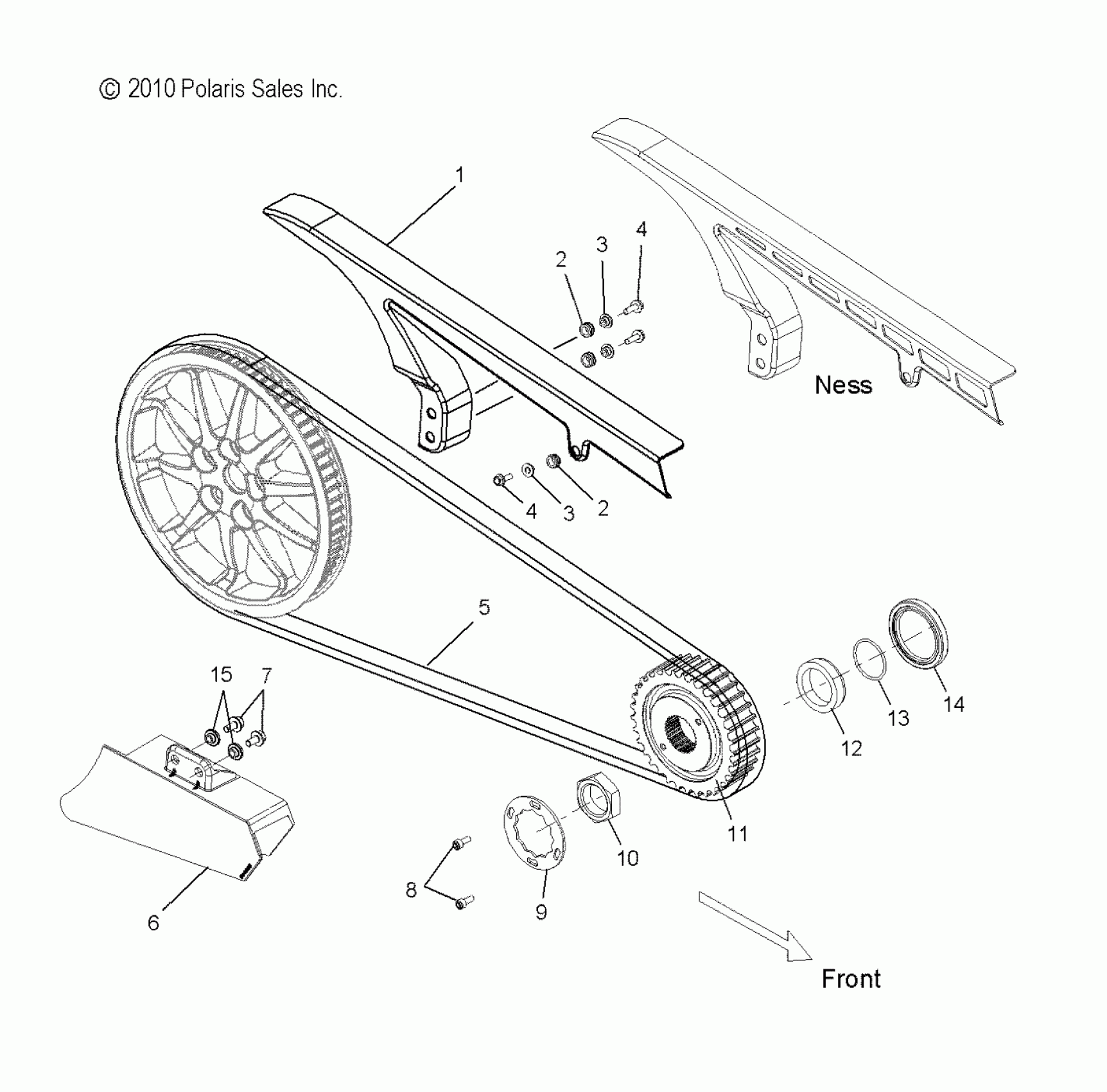

Polaris VEGAS 8-BALL ALL OPTIONS - V13GA36 DRIVE TRAIN, DRIVE SPROCKET, BELT, and GUARDS - V13GA36EA/NA/NAA/NAC (49VICDRVBELT11VGS) Diagram

#

Description
Price

1

GUARD, BELT, UPPER, BLACK

5247719-266

$216.99

2

GROMMET

5412265

$3.97

2

GROMMET

5412265

$3.97

3

SLEEVE

5134082

$3.17

3

SLEEVE

5134082

$3.17

4

SCREW

7518141

$4.76

4

SCREW

7518141

$4.76

5

BELT, DRIVE

3211102

$249.99

6

GUARD, BELT

5438684

$24.27

7

SCREW

7518591

$3.79

8

SCREW

7517272

$7.84

9

WASHER, LOCK

5244114

Unavailable

10

NUT, HEX, THIN

7547311

Unavailable

11

SPROCKET, DRIVE, 33T

3234580

Unavailable

12

SPACER, SPROCKET

5137737

$39.68

13

O-RING

5413767

$2.38

14

SEAL, LIP

3610118

$31.75

15

SLEEVE-TURNSIGNAL MOUNT

5134083

$3.17
