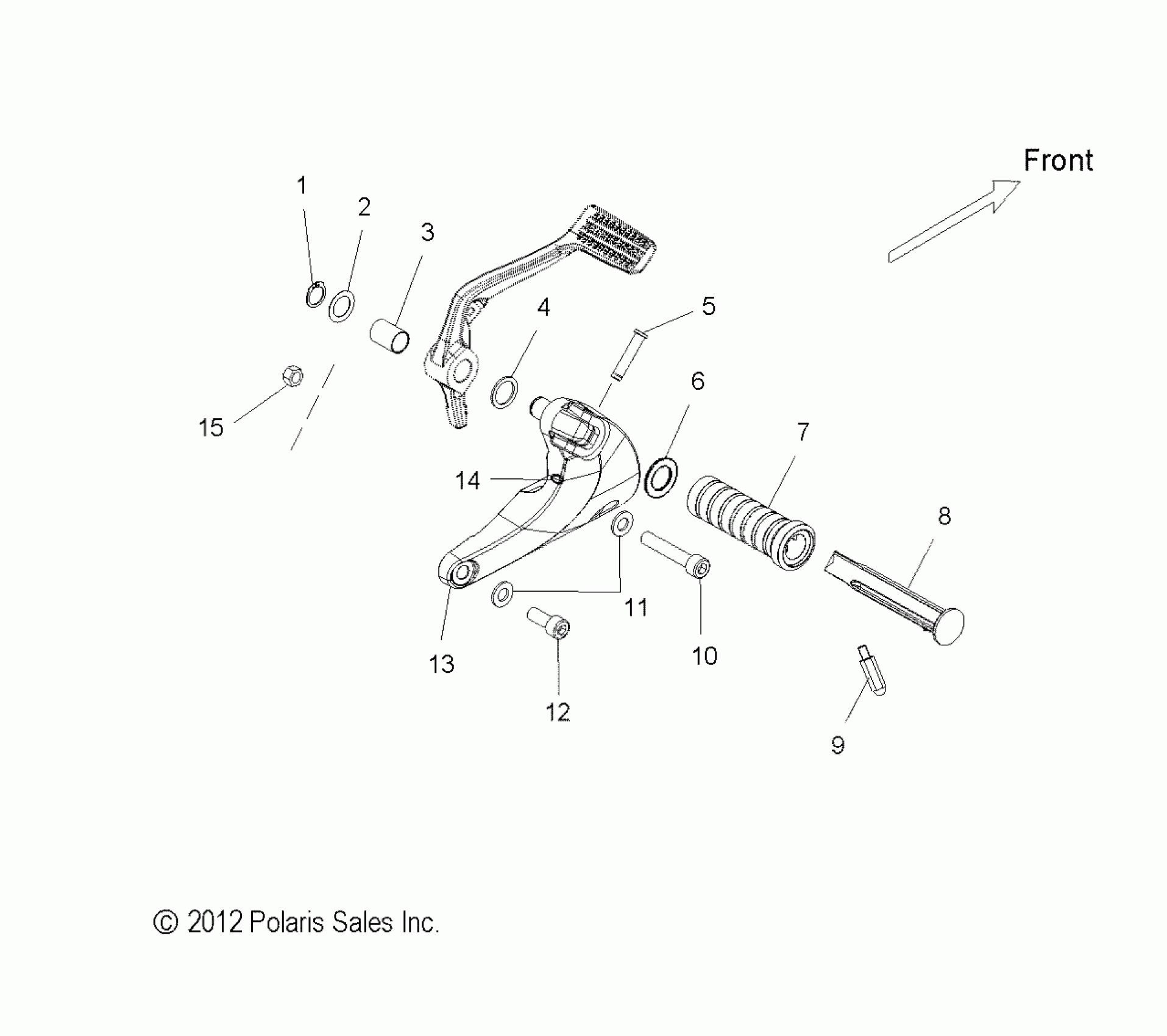

Polaris VEGAS 8-BALL ALL OPTIONS - V13GA36 CHASSIS, FOOTPEG, RH - V13GA36EA/NA/NAA/NAC (49VICFOOTPEGRH13VGS) Diagram

#

Description
Price

1

RING, RETAINING, EXTERNAL

7710499

$7.14

2

WASHER, FLAT

7556075

$11.33

3

BUSHING, SHIFT PEDAL

3514490

$6.65

4

WASHER, WAVE

7556273

$2.38

5

PIN-PIVOT,FOOTPEG

7661980

$11.32

6

WASHER-FOOTPEG,PIVOT

7556274

$3.17

7

PAD, FOOTPEG

5412256

$20.22

8

FOOTPEG, RH

5136036-411

Unavailable

9

FEELER, FOOTPEG

5137442

Unavailable

10

SCREW

7518146

$10.32

11

WASHER, FLAT

7556234

$3.17

12

SCREW

7518101

$7.94

13

SUPPORT, FOOTPEG, RH, BLACK

5136081-266

Unavailable

14

RING-RTNG,SPIRAL,EXT,SS

7710644

$1.98

15

NUT

7547039

$4.76
