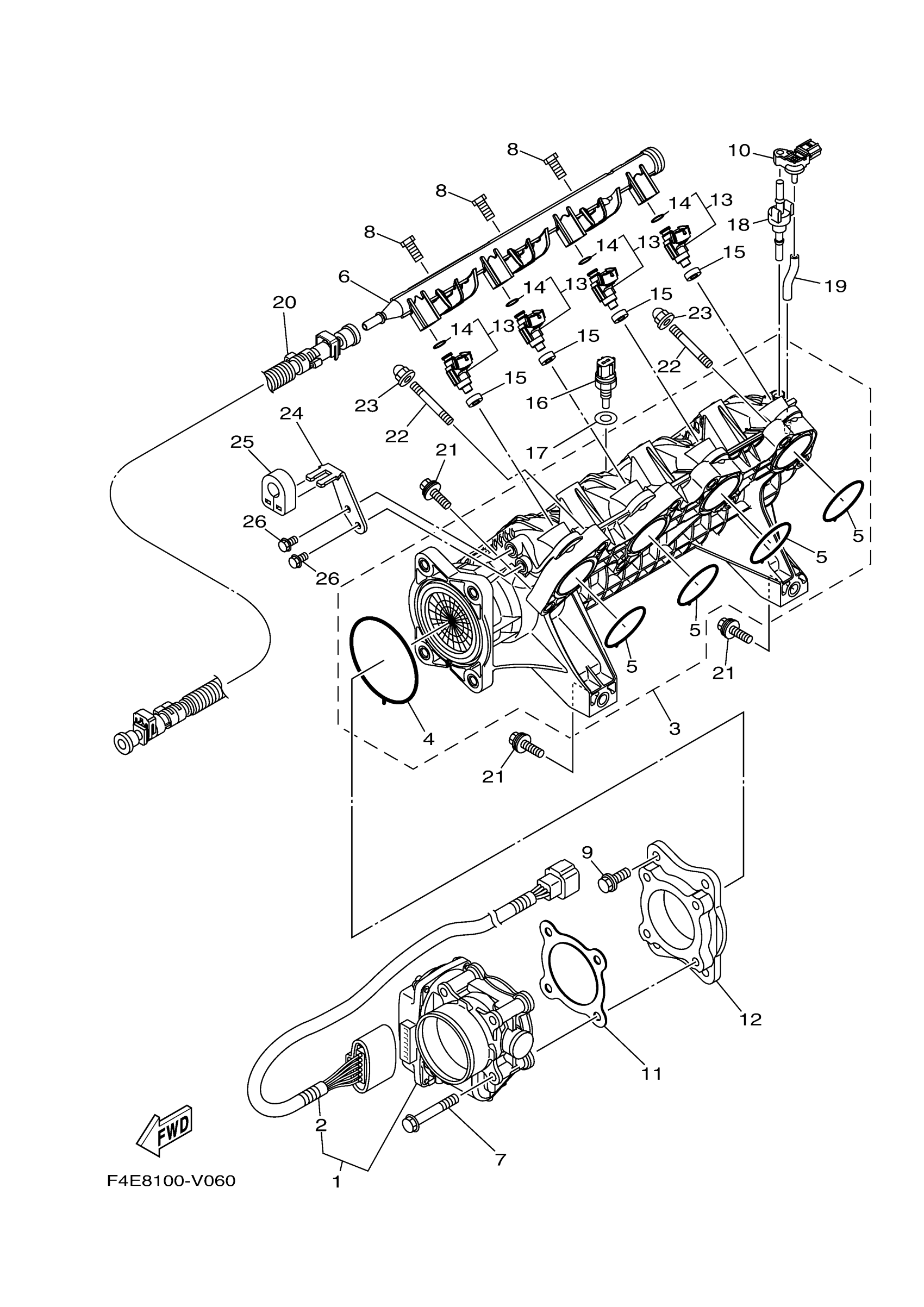

Yamaha VC1800V (VX CRUISER HO) F4E8 2020 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6BH-13750-11-00

Unavailable

2

. WIRE, SUB LEAD

6S5-82509-00-00

$116.40

3

MANIFOLD, INTAKE 1

6BH-13641-10-00

$374.61

4

. GASKET, INSULATING

6BH-14156-00-00

$19.39

5

. GASKET

6BH-14126-00-00

$12.91

6

DELIVERY PIPE

6CS-12880-00-00

$162.67

7

BOLT, FLANGE

90105-08243-00

$1.72

8

BOLT

6CS-14446-00-00

$8.94

9

BOLT (682)

97013-08025-00

$6.34

10

. SENSOR, PRESSURE

6BH-82380-00-00

$274.61

11

GASKET

6CR-14536-00-00

$9.11

12

SPACER

6CR-14163-00-00

$73.12

13

INJECTOR

6S5-13761-10-00

$164.15

14

. O-RING

68V-1416A-00-00

$11.01

15

. GASKET, MANIFOLD

8FP-13556-10-00

$5.69

16

THERMOSENSOR

65L-85886-00-00

$60.03

17

. WASHER

6S5-14285-00-00

$2.16

18

GROMMET

6BH-14445-00-00

$20.88

19

HOSE, VACUUM SENSING 3

6BH-13532-00-00

$6.27

20

FUEL HOSE ASSY

6CN-2450B-10-00

$128.34

21

BOLT, WITH WASHER

97513-08535-00

$1.72

22

BOLT, STUD

90116-08032-00

$3.41

23

NUT, CROWN(4BR)

90176-08080-00

Unavailable

24

PLATE, STAY

6CR-14572-00-00

$7.16

25

GROMMET

6CS-14445-01-00

$5.37

26

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable
