GUNWALE & MAT

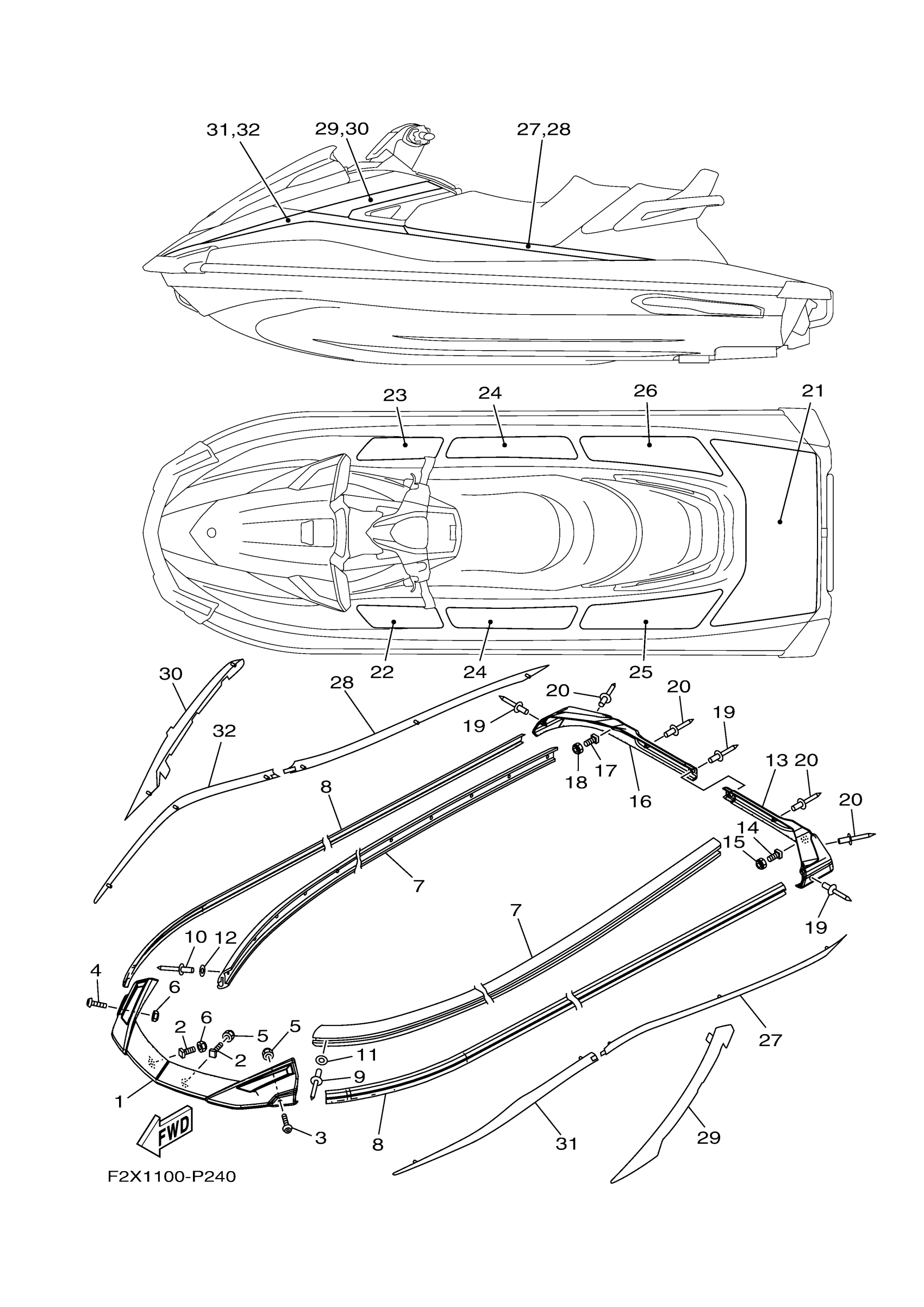

Yamaha VC1800V (VX CRUISER HO) F4E8 2020 GUNWALE & MAT Diagram
#
1
GUNWALE, BOW (YB)
F2X-U2511-10-00
Unavailable
1
GUNWALE, BOW (PURW)
F2X-U2511-20-00
Unavailable
2
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
3
BOLT, HEXAGON SOCKET HEAD
90110-06191-00
Unavailable
4
BOLT, HEXAGON SOCKET HEAD
90110-06191-00
Unavailable
5
NUT, LOCK
F2N-U142L-00-00
Unavailable
6
NUT, LOCK
F2N-U142L-00-00
Unavailable
7
GUNWALE, SIDE (YB)
F2X-U2512-10-00
Unavailable
7
GUNWALE, SIDE (PURW)
F2X-U2512-20-00
Unavailable
8
INNER,GUNWALE
F2X-U2519-80-00
Unavailable
8
INNER,GUNWALE (YELLOW)
F2X-U2519-D0-00
Unavailable
9
RIVET, BLIND
90267-489U8-00
Unavailable
10
RIVET, BLIND
90267-489U8-00
Unavailable
11
WASHER
9299R-05200-00
Unavailable
12
WASHER
9299R-05200-00
Unavailable
13
GUNWALE, STERN 1 (YB)
F2X-U251D-10-00
Unavailable
13
GUNWALE, STERN 1 (PURW)
F2X-U251D-20-00
Unavailable
14
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
15
NUT, LOCK
F2N-U142L-00-00
Unavailable
16
GUNWALE, STERN 2 (YB)
F2X-U251E-10-00
Unavailable
16
GUNWALE, STERN 2 (PURW)
F2X-U251E-20-00
Unavailable
17
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
18
NUT, LOCK
F2N-U142L-00-00
Unavailable
19
RIVET, BLIND
90267-48825-00
Unavailable
20
RIVET, BLIND
90267-48825-00
Unavailable
21
MAT, UPPER
F2X-U3581-01-00
Unavailable
21
MAT, UPPER
F2X-U3581-40-00
Unavailable
22
MAT, STEP 1
F2X-U351H-00-00
Unavailable
22
MAT, STEP 1
F2X-U351H-40-00
Unavailable
23
MAT, STEP 2
F2X-U351J-00-00
Unavailable
23
MAT, STEP 2
F2X-U351J-40-00
Unavailable
24
MAT, STEP 3
F2X-U351K-00-00
Unavailable
24
MAT, STEP 3
F2X-U351K-40-00
Unavailable
25
MAT, STEP 4
F2X-U351M-00-00
Unavailable
25
MAT, STEP 4
F2X-U351M-40-00
Unavailable
26
MAT, STEP 5
F2X-U351N-00-00
Unavailable
26
MAT, STEP 5
F2X-U351N-40-00
Unavailable
27
ORNAMENT, STERN LH (YB)
F2X-U89A8-00-00
Unavailable
27
ORNAMENT, STERN LH (PURW)
F2X-U89A8-50-00
Unavailable
28
ORNAMENT, STERN RH (YB)
F2X-U89A9-00-00
Unavailable
28
ORNAMENT, STERN RH (PURW)
F2X-U89A9-50-00
Unavailable
29
ORNAMENT, MIDDLE LH (YB)
F2X-U89AA-00-00
Unavailable
29
ORNAMENT, MIDDLE LH (PURW)
F2X-U89AA-50-00
Unavailable
30
ORNAMENT, MIDDLE RH (YB)
F2X-U89AB-00-00
Unavailable
30
ORNAMENT, MIDDLE RH (PURW)
F2X-U89AB-50-00
Unavailable
31
ORNAMENT, BOW LH (YB)
F2X-U89AC-00-00
Unavailable
31
ORNAMENT, BOW LH (PURW)
F2X-U89AC-50-00
Unavailable
32
ORNAMENT, BOW RH (YB)
F2X-U89AD-00-00
Unavailable
32
ORNAMENT, BOW RH (PURW)
F2X-U89AD-50-00
Unavailable
