CONTROL CABLE

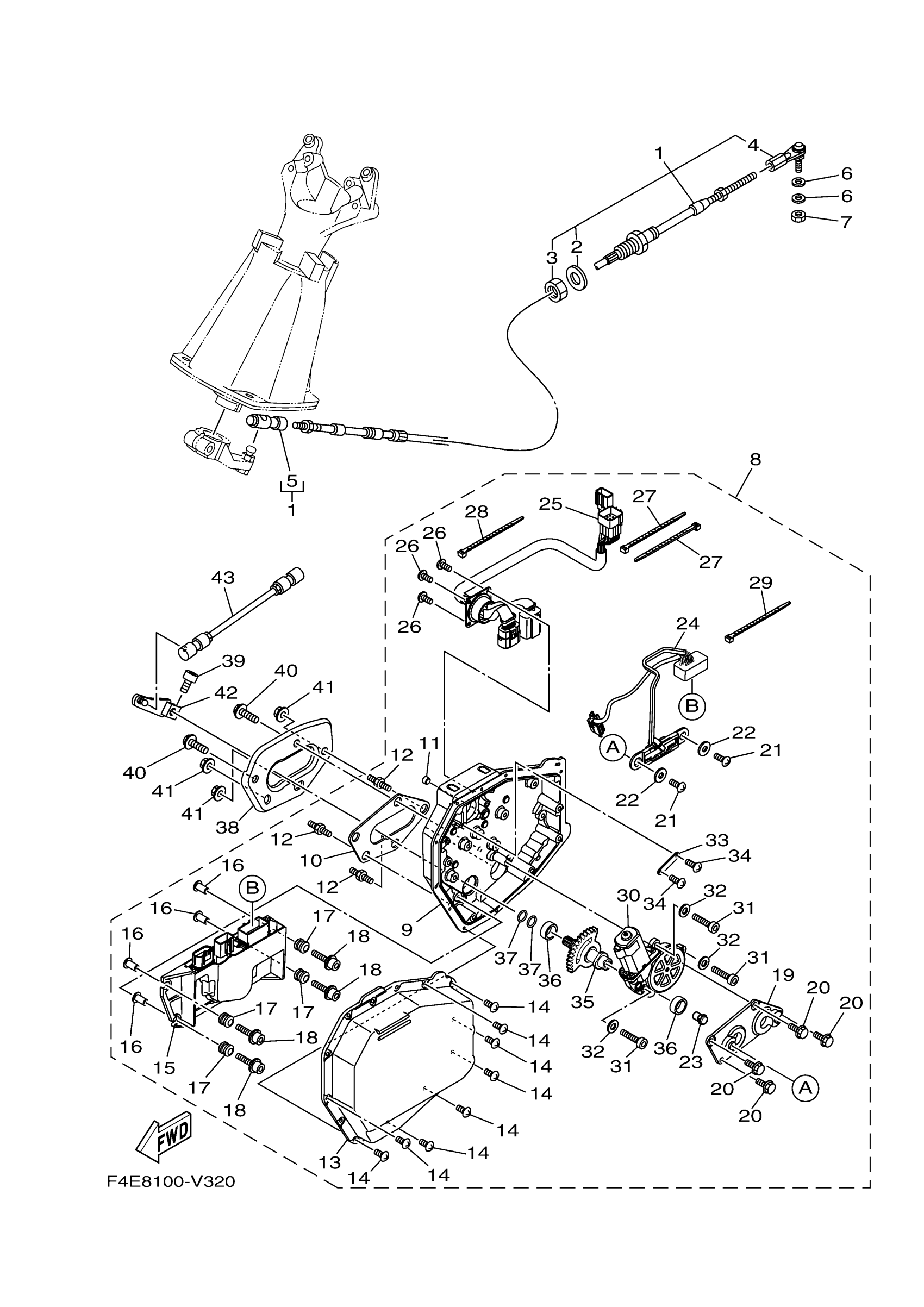

Yamaha VC1800V (VX CRUISER HO) F4E8 2020 CONTROL CABLE Diagram
#
1
CABLE, STEERING
F2N-61481-02-00
Unavailable
2
. PACKING C
F1B-61438-00-00
Unavailable
3
NUT
F1B-6151S-01-00
Unavailable
4
. STUD, JOINT BALL
F1B-61461-02-00
Unavailable
5
. BALL JOINT ASSY
F2N-61460-00-00
Unavailable
6
WASHER, PLATE
90201-06906-00
Unavailable
7
NUT
9538R-06700-00
Unavailable
8
MOTOR ASSY.
F2X-6140B-05-00
$2,545.99
9
. HOUSING
F3J-6152K-10-00
Unavailable
10
. SEAL
F3J-63262-00-00
Unavailable
11
. PLUG
F3J-613D0-00-00
Unavailable
12
. BOLT, STUD
F3J-67369-00-00
Unavailable
13
. COVER
F3J-6143J-00-00
Unavailable
14
. SCREW
F3J-68198-00-00
Unavailable
15
CONTROL UNIT
F2X-68197-01-00
Unavailable
16
. COLLAR
90387-06119-00
Unavailable
17
DAMPER, IGNITION C
6A0-82317-01-00
Unavailable
18
. BOLT
F3J-613B4-20-00
Unavailable
19
. PLATE
F3J-61256-00-00
Unavailable
20
. BOLT, HEXAGON
F3J-613B3-00-00
Unavailable
21
. SCREW
F3J-68198-20-00
Unavailable
22
. WASHER, PLAIN
F3J-613C3-10-00
Unavailable
23
. MAGNET, SENSOR
F3J-60428-00-00
Unavailable
24
SENSOR ASSY. 1
F2X-6E571-01-00
Unavailable
25
WIRE HARNESS ASSY.
F2X-68270-01-00
Unavailable
26
. SCREW
F3J-68198-00-00
Unavailable
27
. CLAMP, WIRE
F3J-68273-00-00
Unavailable
28
. CLAMP, WIRE
F3J-68273-00-00
Unavailable
29
. CLAMP, WIRE
F3J-68273-00-00
Unavailable
30
. MOTOR
F3J-68352-01-00
Unavailable
31
. BOLT
F3J-613B4-00-00
Unavailable
32
. WASHER, PLAIN
F3J-613C3-00-00
Unavailable
33
. PLATE
F3J-61348-00-00
Unavailable
34
. SCREW
F3J-68198-20-00
Unavailable
35
. SHAFT, 1
F3J-60221-00-00
Unavailable
36
. BUSH
F3J-61344-00-00
Unavailable
37
. O-RING
F3J-613A5-00-00
Unavailable
38
PLATE
F3Y-U8285-00-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD
90110-06280-00
Unavailable
40
BOLT, WITH WASHER
90119-08852-00
Unavailable
41
NUT, LOCK
F3Y-U142L-00-00
Unavailable
42
SHIFT ARM ASSY
F3J-6150F-00-00
Unavailable
43
ROD ASSY 2
F3J-6150D-00-00
Unavailable
