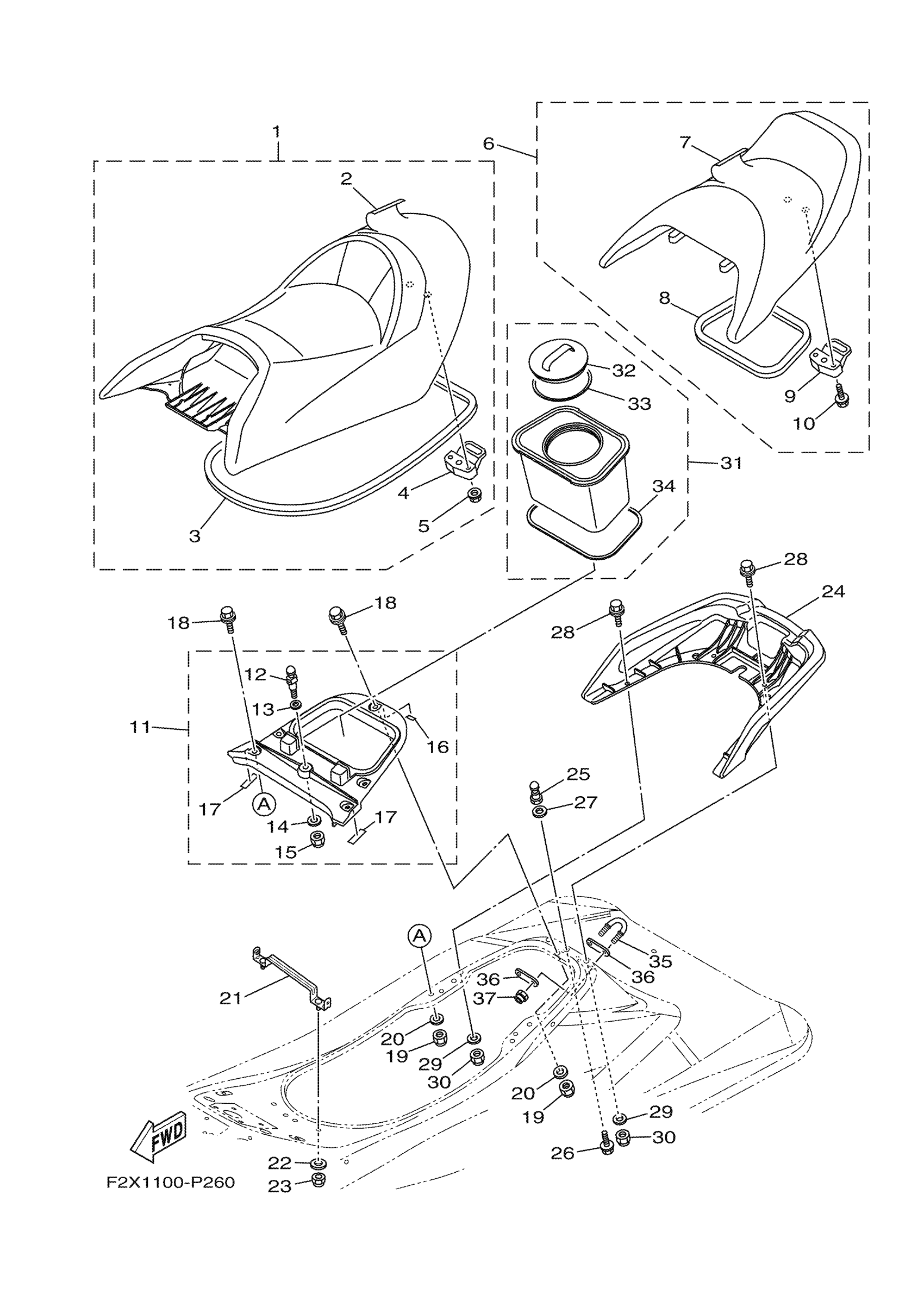

Yamaha VC1800U (VX CRUISER HO) F4E7 2019 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

SEAT ASSY

F2X-U371A-81-00

Unavailable

2

COVER, SEAT 1

F2X-U371B-81-00

Unavailable

3

. PACKING

F1W-U2664-01-00

$33.32

4

. SEAT LOCK ASSY

F2C-U3850-00-00

$22.97

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F2X-U372A-80-00

$457.97

7

. COVER, SEAT

F2X-U372B-80-00

$246.74

8

PACKING 5

F2C-U266D-01-00

$16.65

9

SEAT LOCK ASSY

F1B-U3850-02-00

$9.32

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

DECK BEAM ASSY

F2S-U890L-05-00

$53.02

12

PIN

GH1-U3774-00-00

$19.38

13

WASHER, PLATE

90201-109U6-00

$3.29

14

WASHER

9299R-10200-00

$1.63

15

NUT, NYLON

9572R-10300-00

$3.37

16

. PACKING 1

F2S-U375E-00-00

$4.24

17

. PACKING

F2S-U8244-00-00

$1.52

18

BOLT, WITH WASHER

90119-08828-00

$2.30

19

NUT, NYLON (6J8)

95780-08300-00

$10.55

20

WASHER

9299R-08200-00

Unavailable

21

STAY, SEAT 1

F2X-U378C-00-00

$24.98

22

WASHER, PLATE

90201-099U3-00

$2.16

23

NUT, NYLON (6J8)

95780-08300-00

$10.55

24

GRIP, HAND

F2X-U271B-10-00

$148.93

25

PIN

F1K-U3774-00-00

$15.07

26

BOLT,WITH WASHER

90119-10815-00

$4.09

27

WASHER

9299R-10200-00

$1.63

28

BOLT, WITH WASHER

90119-08828-00

$2.30

29

WASHER

9299R-08200-00

Unavailable

30

NUT, NYLON (6J8)

95780-08300-00

$10.55

31

CASE,ASSY 1

F2X-U591A-01-00

$48.47

32

. CAP,CASE

F2C-U591C-00-00

$5.67

33

. PACKING,CASE

F2C-U591D-01-00

$1.63

34

. PACKING,6

F2C-U266E-00-00

$14.35

35

STERN EYE

F2N-U1628-02-00

$4.96

36

PLATE A

GP7-U4953-10-00

$3.52

37

NUT, NYLON (6J8)

95780-08300-00

$10.55
