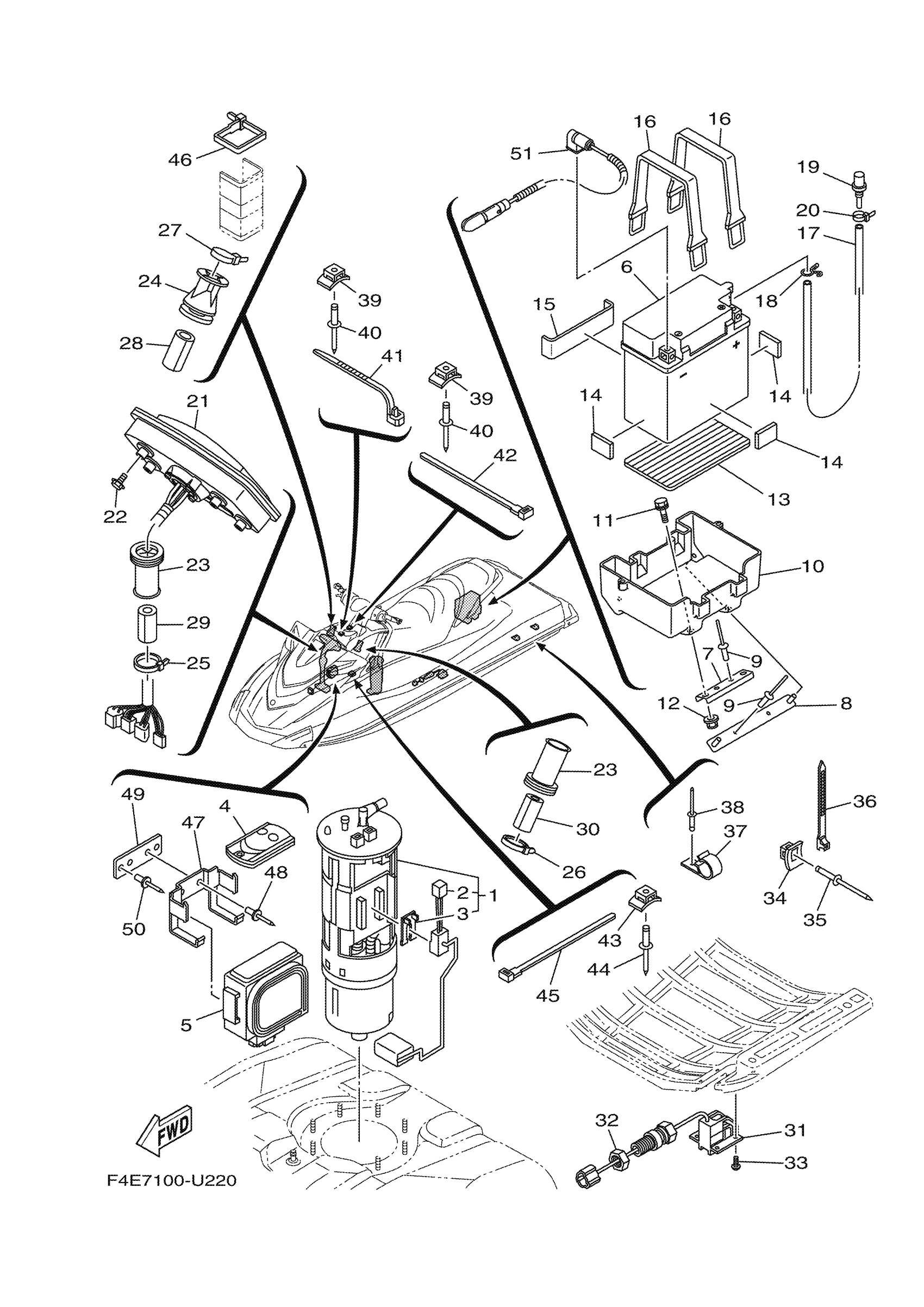

Yamaha VC1800U (VX CRUISER HO) F4E7 2019 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

XMTR. COMP.

6B6-86261-00-00

$228.48

5

RECEIVER COMPLETE

6B6-86265-00-00

$427.26

6

BATTERY ASSY

EU0-82110-08-00

Unavailable

7

PLATE, BASE 2

F2S-U8592-00-00

$5.83

8

PLATE, BASE 3

F2S-U8593-00-00

$5.45

9

RIVET (EU0)

90267-48938-00

$5.00

10

CASE, BATTERY

F2S-U8211-00-00

$9.62

11

BOLT, WITH WASHER

90119-06820-00

$3.52

12

NUT, LOCK

F2N-U142L-00-00

$1.00

13

PAD, BATTERY

F1S-U8221-00-00

$2.75

14

PAD, BATTERY

EU0-U8221-31-00

$1.65

15

PAD, BATTERY

F1K-U8221-00-00

$2.66

16

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

17

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

18

CLIP

90467-089U1-00

$1.44

19

NIPPLE

GJ3-6215F-00-00

$9.08

20

CLAMP

90465-10098-00

$1.68

21

METER ASSY

F4E-6820A-01-00

$612.11

22

BOLT, WITH WASHER

90119-05803-00

$4.01

23

GROMMET

GU2-6822E-01-00

$24.98

24

GROMMET

F3J-U822E-01-00

$5.59

25

CLAMP

90464-32801-00

$1.23

26

CLAMP

90464-32801-00

$1.23

27

CLAMP

90464-32801-00

$1.23

28

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

29

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

30

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

31

SENSOR SPEED

F1S-U8K31-03-00

$142.18

32

NUT

F2C-U151S-00-00

$1.59

33

SCREW, ROUND HEAD

90150-05807-00

$0.79

34

BASE, CLAMP

F1W-U828M-00-00

$1.23

35

RIVET, BLIND

90267-489U6-00

$1.37

36

CLAMP

90464-32801-00

$1.23

37

CLAMP

F3J-U8368-01-00

$5.83

38

RIVET, BLIND

90267-409U5-00

Unavailable

39

BASE, CLAMP

F1W-U828M-00-00

$1.23

40

RIVET, BLIND

90267-489U6-00

$1.37

41

CLAMP

90464-32801-00

$1.23

42

BAND

90601-200U2-00

$3.16

43

BASE, CLAMP

F1W-U828M-00-00

$1.23

44

RIVET, BLIND

90267-489U6-00

$1.37

45

BAND

90601-200U2-00

$3.16

46

BAND

90601-200U2-00

$3.16

47

BRACKET

F1W-U826C-00-00

$18.17

48

RIVET (EU0)

90267-48938-00

$5.00

49

PLATE

F1W-U8376-00-00

$2.80

50

RIVET (EU0)

90267-48938-00

$5.00

51

WIRE, MINUS LEAD

6JP-82116-00-00

$65.14
