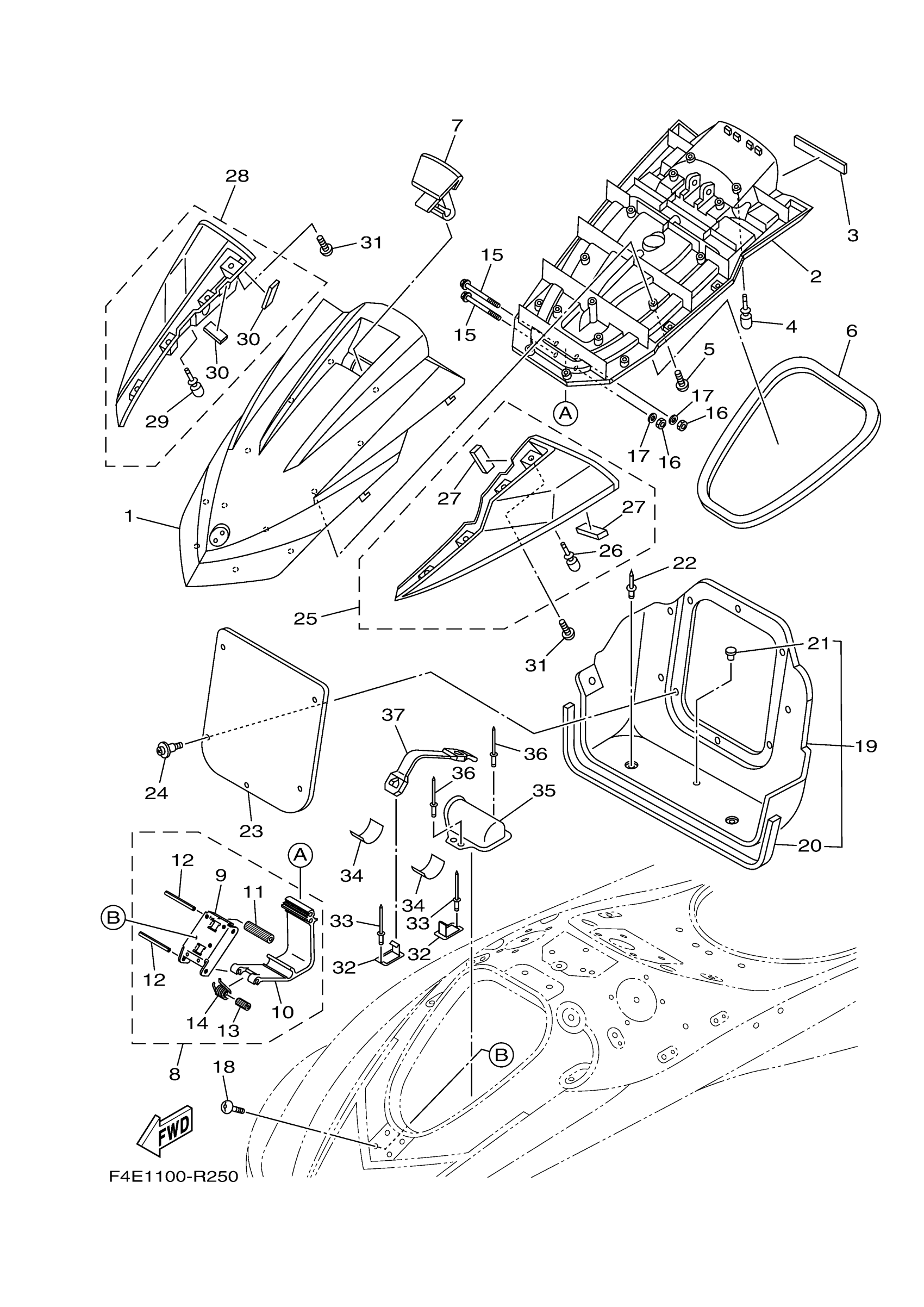

Yamaha VC1800T (VX CRUISER HO) F4E5 2018 ENGINE HATCH 2 Diagram

#

Description

Price

1

LID, ENGINE ROOM (PURW)

F2X-U517B-00-P2

Unavailable

2

INNER, ENGINE HATCH

F2X-U519G-00-00

Unavailable

3

DAMPER 1

F2C-U515D-00-00

Unavailable

4

. CUSHION, RUBBER

F1W-U3768-01-00

Unavailable

5

SCREW

F2S-U13C1-00-00

Unavailable

6

PACKING 1

F2N-U2663-01-00

Unavailable

7

LOCK, LID

F2X-U517C-01-00

Unavailable

8

HINGE ASSY.

F2X-U515A-01-00

Unavailable

9

. PLATE, HINGE LID

F1K-U518E-04-00

Unavailable

10

. HINGE, LID

F1K-U517D-05-00

Unavailable

11

. ROLLER, DETENT

F2X-U135C-00-00

Unavailable

12

PIN, HINGE

F1K-U517R-01-00

Unavailable

13

. SPACER 1

F1K-U471E-03-00

Unavailable

14

. SPRING, TORSION

F1K-U283B-02-00

Unavailable

15

BOLT, FLANGE

90105-06826-00

Unavailable

16

NUT, NYLON

9572R-06300-00

Unavailable

17

WASHER

9299R-06200-00

Unavailable

18

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

Unavailable

19

LOCKER,BOW

F2X-U475B-00-00

Unavailable

20

PACKING 4

F2C-U266C-00-00

Unavailable

21

. PLUG, BLIND

90605-502U1-00

Unavailable

22

RIVET

90269-08801-00

Unavailable

23

PLATE, LOKER BOW

F2S-U475F-00-00

Unavailable

24

RIVET

90269-08801-00

Unavailable

25

MIRROR ASSY. 1

F2X-U590D-70-00

Unavailable

26

. CUSHION, RUBBER

F1W-U3768-01-00

Unavailable

27

. PACKING 3

F1K-U266B-00-00

Unavailable

28

MIRROR ASSY. 2

F2X-U590E-70-00

Unavailable

29

. CUSHION, RUBBER

F1W-U3768-01-00

Unavailable

30

. PACKING 3

F1K-U266B-00-00

Unavailable

31

SCREW

F2X-U13C1-00-00

Unavailable

32

HOOK A

F1K-U5772-04-00

Unavailable

33

RIVET (EU0)

90267-48938-00

Unavailable

34

MAT 2

F1K-U759C-00-00

Unavailable

35

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

Unavailable

36

RIVET, BLIND

90267-48802-00

Unavailable

37

BAND 1

F2P-U828K-00-00

Unavailable
