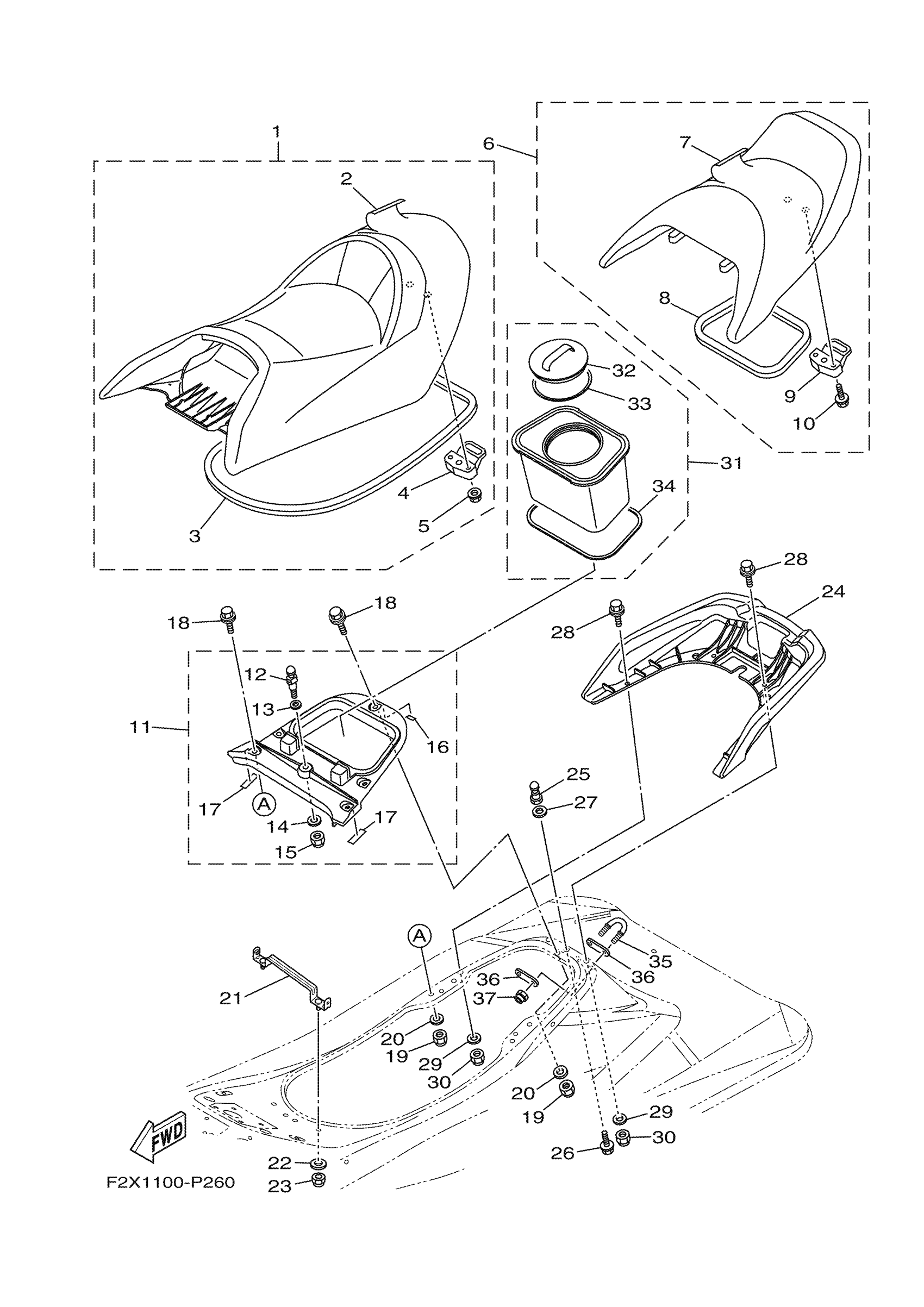

Yamaha VC1800S (VX CRUISER HO) F4E3 2017 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F2X-U371A-70-00

$769.77

1

SEAT ASSY

F2X-U371A-81-00

Unavailable

2

. COVER, SEAT 1

F2X-U371B-70-00

$368.64

2

COVER, SEAT 1

F2X-U371B-81-00

Unavailable

3

. PACKING

F1W-U2664-01-00

$32.82

4

. SEAT LOCK ASSY

F2C-U3850-00-00

$24.39

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F2X-U372A-70-00

$579.84

6

SINGLE SEAT ASSY

F2X-U372A-80-00

$457.97

7

. COVER, SEAT

F2X-U372B-70-00

$329.84

7

. COVER, SEAT

F2X-U372B-80-00

$258.13

8

PACKING 5

F2C-U266D-01-00

$16.40

9

SEAT LOCK ASSY

F1B-U3850-02-00

$10.04

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

DECK BEAM ASSY

F2S-U890L-05-00

$52.22

12

PIN

GH1-U3774-00-00

$20.81

13

WASHER, PLATE

90201-109U6-00

$3.43

14

WASHER

9299R-10200-00

$1.72

15

NUT, NYLON

9572R-10300-00

$3.52

16

. PACKING 1

F2S-U375E-00-00

$4.18

17

. PACKING

F2S-U8244-00-00

$1.49

18

BOLT, WITH WASHER

90119-08828-00

$2.44

19

NUT, NYLON (6J8)

95780-08300-00

$11.48

20

WASHER

9299R-08200-00

Unavailable

21

STAY, SEAT 1

F2X-U378C-00-00

$24.61

22

WASHER, PLATE

90201-099U3-00

$2.30

23

NUT, NYLON (6J8)

95780-08300-00

$11.48

24

GRIP, HAND

F2X-U271B-10-00

$155.81

25

PIN

F1K-U3774-00-00

$15.79

26

BOLT,WITH WASHER

90119-10815-00

$4.31

27

WASHER

9299R-10200-00

$1.72

28

BOLT, WITH WASHER

90119-08828-00

$2.44

29

WASHER

9299R-08200-00

Unavailable

30

NUT, NYLON (6J8)

95780-08300-00

$11.48

31

CASE,ASSY 1

F2X-U591A-01-00

$47.75

32

. CAP,CASE

F2C-U591C-00-00

$5.96

33

. PACKING,CASE

F2C-U591D-01-00

$1.72

34

. PACKING,6

F2C-U266E-00-00

$15.07

35

STERN EYE

F2N-U1628-02-00

$5.17

36

PLATE A

GP7-U4953-10-00

$3.65

37

NUT, NYLON (6J8)

95780-08300-00

$11.48
