- VC1800S (VX CRUISER HO) F4E3 2017
ELECTRICAL 1

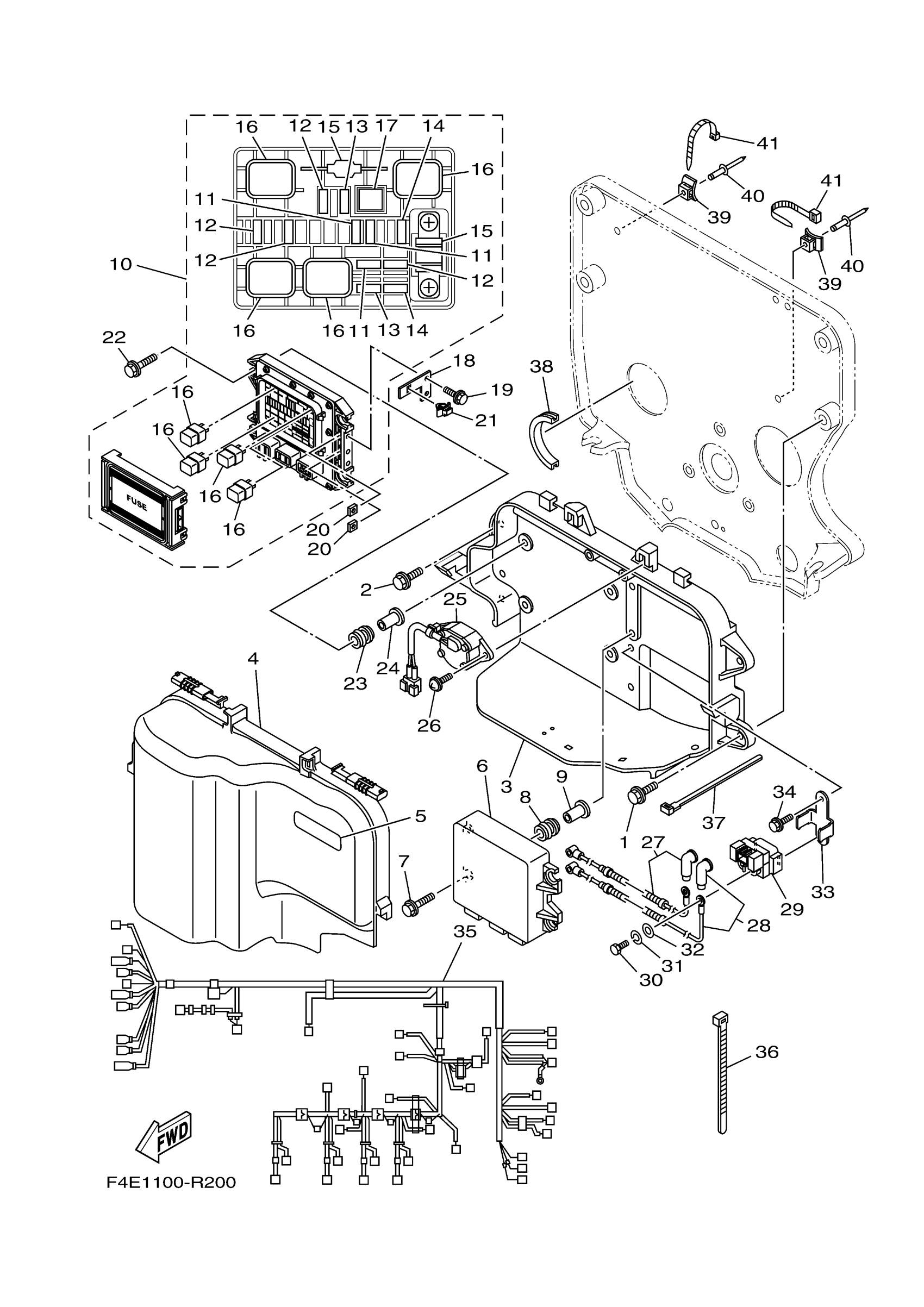

Yamaha VC1800S (VX CRUISER HO) F4E3 2017 ELECTRICAL 1 Diagram
#
1
BOLT, WITH WASHER
90119-089UT-00
Unavailable
2
BOLT, WITH WASHER
90119-089UT-00
Unavailable
3
PLATE
6CS-81845-00-00
Unavailable
4
COVER
6S5-81942-11-00
Unavailable
5
LABEL, CAUTION 7
60E-83627-00-00
Unavailable
6
ENGINE CONTROL UNIT ASSY
6CR-8591A-24-00
Unavailable
7
BOLT, WITH WASHER
90119-06311-00
Unavailable
8
DAMPER, IGNITION C
6A0-82317-01-00
Unavailable
9
. COLLAR
90387-06119-00
Unavailable
10
FUSE BOX ASSY
6EX-82170-02-00
Unavailable
11
. FUSE (3A)
67F-82151-30-00
Unavailable
12
. FUSE (10A)
67F-82151-40-00
Unavailable
13
FUSE
5JJ-82151-20-00
$7.99
14
FUSE
5JJ-82151-60-00
$7.99
15
. FUSE (50A)
6EX-82151-00-00
Unavailable
16
. RELAY ASSY
6EX-8195A-00-00
Unavailable
17
. PULLER, FUSE
6EX-2812A-00-00
Unavailable
18
PLATE
6CS-82588-00-00
Unavailable
19
BOLT, HEXAGON W/W DEEP RECESS
97E95-06514-00
Unavailable
20
NUT, SQUARE(1HV)
90173-06015-00
Unavailable
21
CLAMP
90464-09M47-00
Unavailable
22
BOLT, WITH WASHER
90119-06311-00
Unavailable
23
DAMPER, IGNITION C
6A0-82317-01-00
Unavailable
24
. COLLAR
90387-06119-00
Unavailable
25
SWITCH ASSY
6S5-8259E-00-00
Unavailable
26
SCREW, TAPPING
97780-60520-00
Unavailable
27
WIRE, PLUS LEAD
6JP-82115-00-00
Unavailable
28
WIRE, LEAD
6CS-82117-00-00
Unavailable
29
STARTER RELAY ASSY (2768102-A)
1B7-81940-00-00
Unavailable
30
BOLT(GH1)
97080-06012-00
Unavailable
31
WASHER, SPRING
92995-06100-00
Unavailable
32
WASHER, PLAIN (646)
92990-06600-00
Unavailable
33
STAY, RELAY
6CS-81953-00-00
Unavailable
34
BOLT, FLANGE
95814-06012-00
Unavailable
35
WIRE HARNESS ASSY 1
6FG-8259L-00-00
Unavailable
36
CLAMP
90465-14M66-00
Unavailable
37
BAND
90601-200U2-00
Unavailable
38
TRIM, 1
F1S-U828H-01-00
Unavailable
39
BASE, CLAMP
F1W-U828M-00-00
Unavailable
40
RIVET, BLIND
90267-48802-00
Unavailable
41
CLAMP
90464-32801-00
Unavailable
