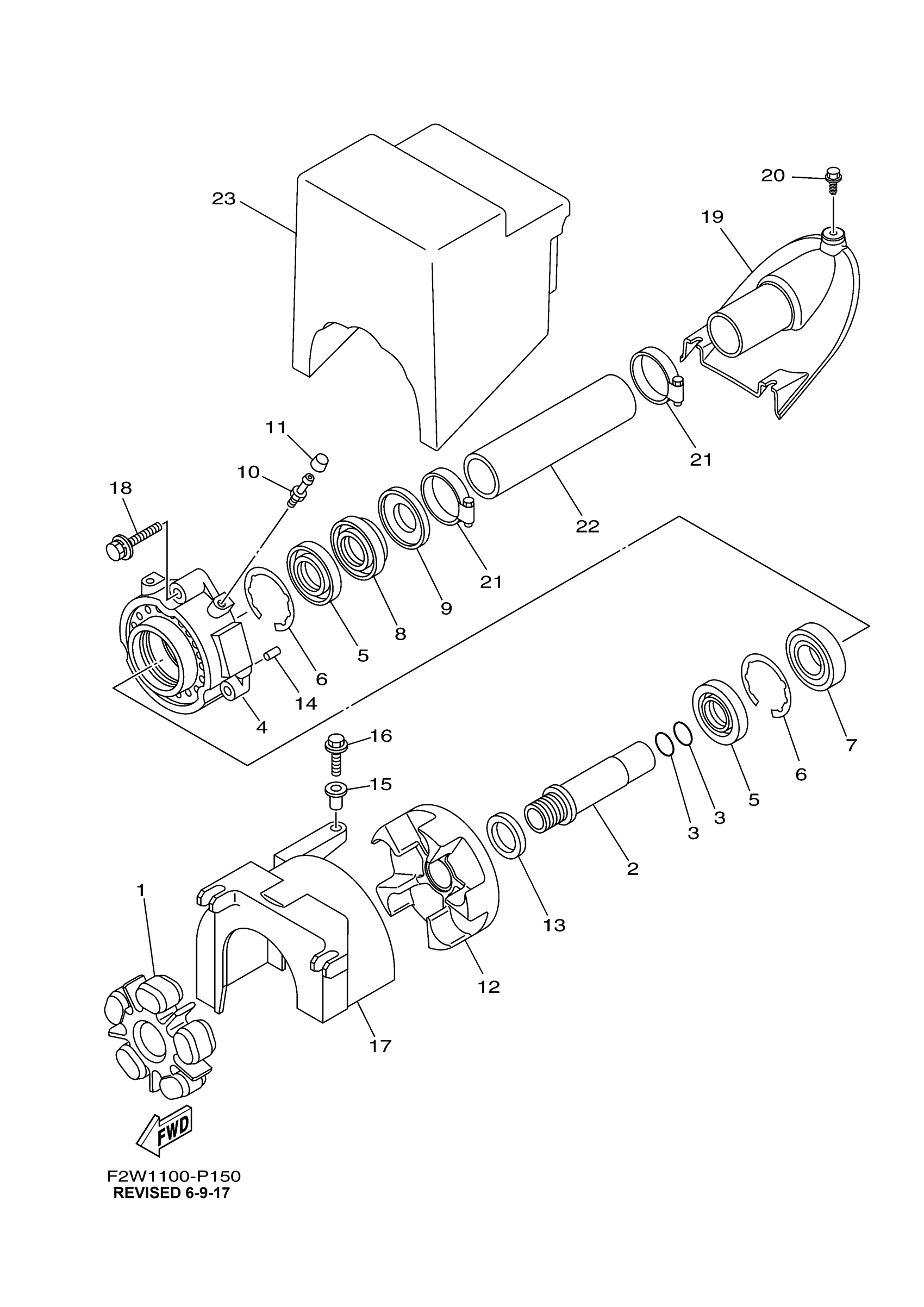

Yamaha VC1800R (VX CRUISER HO) F4E1 2016 JET UNIT 2 Diagram

#

Description
Price

1

RUBBER SHAFT COUPL

6BH-4581J-01-00

$129.25

2

SHAFT, COUPLER

6S5-R1323-00-00

$135.84

3

O-RING(6U1)

93210-22MF1-00

$4.65

4

HOUSING, BEARING

6S5-G5332-00-00

$209.50

5

. OIL SEAL

93102-29008-00

$22.79

6

CIRCLIP

93450-66156-00

$3.03

7

BEARING

93306-206Y8-00

$45.93

8

OIL SEAL

93102-29009-00

$51.70

9

WASHER, THRUST

6ET-45613-00-00

$23.30

10

NIPPLE, GREASE

93700-06M03-00

$7.89

11

CAP, GREASE NIPPLE

663-45119-01-00

$1.81

12

FLANGE, COUPLING 1

6S5-G5593-00-00

$45.93

13

WASHER

6ET-E2289-00-00

$4.51

14

PIN, DOWEL (614)

93606-12019-00

$3.50

15

COLLAR

90387-06289-00

$2.44

16

BOLT, WITH WASHER

90119-06892-00

$4.01

17

COVER

6S5-R1381-01-00

$4.37

18

BOLT, WITH WASHER

90119-089U1-00

$3.37

19

JOINT, PIPE

F2N-U883E-00-00

$9.32

20

BOLT

90109-06832-00

$2.58

21

BAND, HOSE 55

90601-155U4-00

$6.17

22

PIPE 1

F2M-U883B-00-00

$20.81

23

PAD

F1K-U892D-00-00

$23.12
