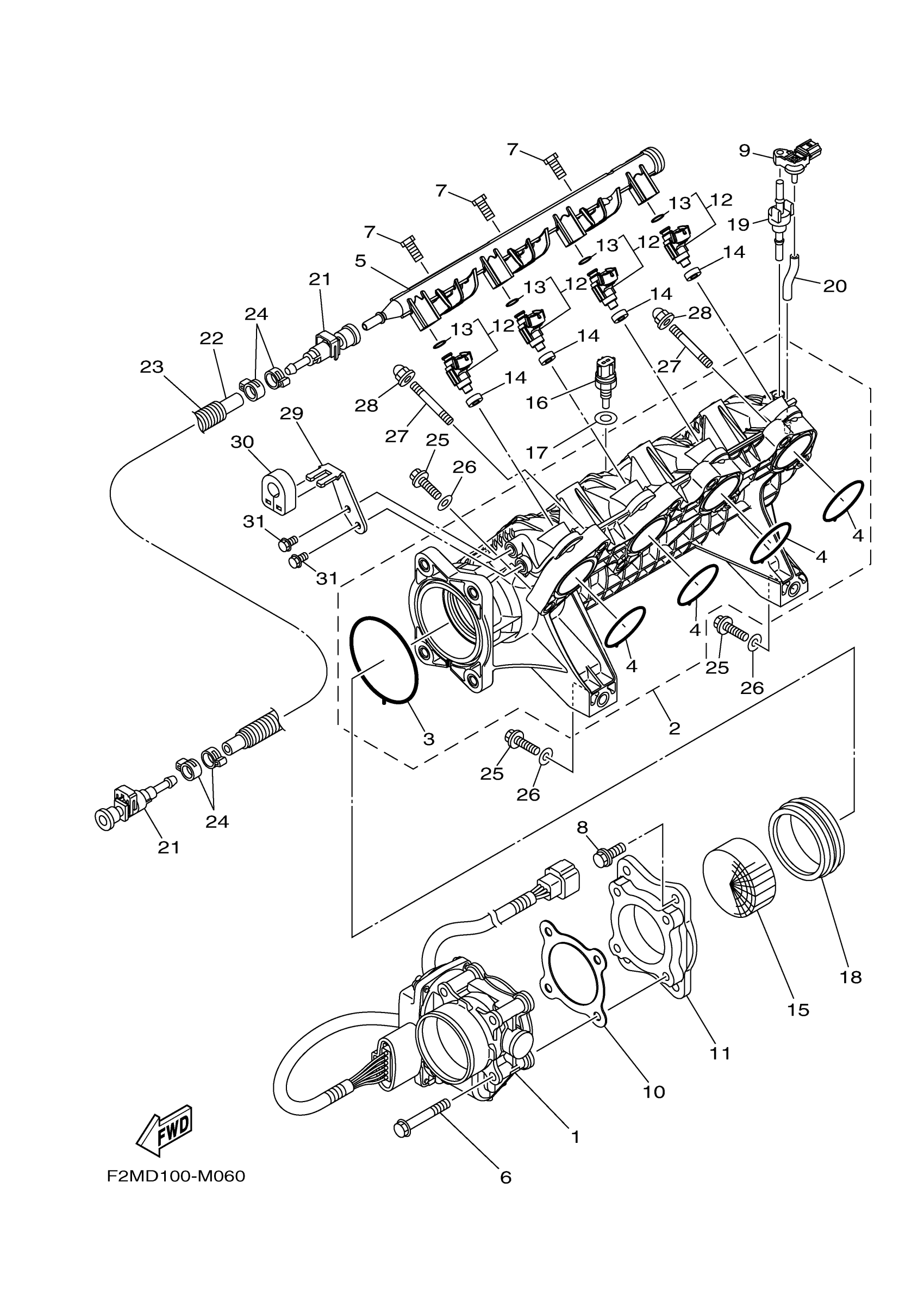

Yamaha VC1800R (VX CRUISER HO) F4E1 2016 INTAKE 1 Diagram
#
1
THROTTLE BODY ASSY
6BH-13750-03-00
Unavailable
2
MANIFOLD, INTAKE 1
6BH-13641-10-00
Unavailable
3
. GASKET, INSULATING
6BH-14156-00-00
Unavailable
4
. GASKET
6BH-14126-00-00
Unavailable
5
DELIVERY PIPE
6CS-12880-00-00
Unavailable
6
BOLT, FLANGE
90105-08243-00
Unavailable
7
BOLT
6CS-14446-00-00
Unavailable
8
BOLT (682)
97013-08025-00
$8.49
9
. SENSOR, PRESSURE
6BH-82380-00-00
Unavailable
10
GASKET
6CR-14536-00-00
Unavailable
11
SPACER
6CR-14163-00-00
Unavailable
12
INJECTOR
6S5-13761-10-00
Unavailable
13
. O-RING
68V-1416A-00-00
Unavailable
14
. GASKET, MANIFOLD
8FP-13556-10-00
Unavailable
15
RIBBON
6D3-1444B-01-00
Unavailable
16
THERMOSENSOR
65L-85886-00-00
Unavailable
17
. WASHER
6S5-14285-00-00
Unavailable
18
HOLDER
6S5-14457-00-00
Unavailable
19
GROMMET
6BH-14445-00-00
Unavailable
20
HOSE, VACUUM SENSING 3
6BH-13532-00-00
Unavailable
21
FUEL PIPE JOINT
6S5-24300-01-00
Unavailable
22
HOSE
6CN-14294-20-00
Unavailable
23
TUBE (L610)
90447-19020-00
Unavailable
24
HOSE CLAMP ASSY
90450-17M17-00
Unavailable
25
BOLT
97013-08035-00
Unavailable
26
.. WASHER, PLATE
92990-08600-00
Unavailable
27
BOLT, STUD
90116-08032-00
Unavailable
28
NUT, CROWN(4BR)
90176-08080-00
Unavailable
29
PLATE, STAY
6CR-14572-00-00
Unavailable
30
GROMMET
6CS-14445-01-00
Unavailable
31
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
