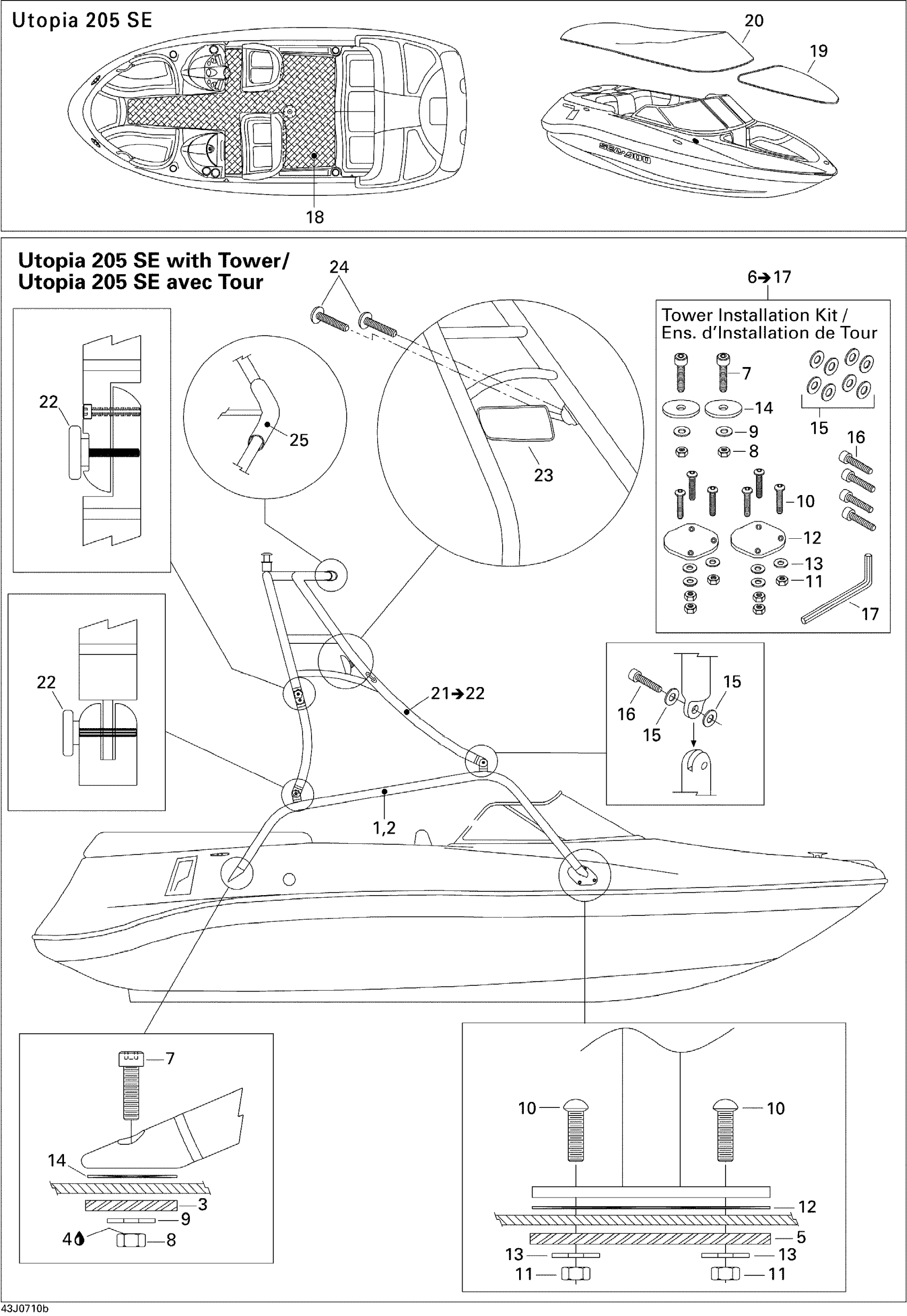

Sea-doo Utopia 205 SE 155NA, 2007 09- Tower Diagram
#
Description
Price
1
RH Tower Rail
204072226
Unavailable
2
LH Tower Rail
204072227
Unavailable
3
Tower Insert
204072271
Unavailable
4
Loctite 243, 10 ml
293800060
$21.49
5
TOWER INSERT, FRONT - Call your local BRP dealership
204072228
Unavailable
6
Tower Installation Hardware Kit | Includes 3 to 14
204072241
Unavailable
7
SOCKET HEAD SCREW 5/8? X 2-1/2? - Call your local BRP dealership | Without Tower
204100092
Unavailable
8
LOCK NUT 5/8 - Call your local BRP dealership | Without Tower
204100093
Unavailable
9
WASHER - Call your local BRP dealership | Without Tower
204071423
Unavailable
10
SCREW-CTSK.OV.HD. 1/4-20 X 2 - Call your local BRP dealership
204100151
Unavailable
11
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
12
Gasket, Front
204130106
Unavailable
13
Flat Washer 1/4", Stainless
204100157
Unavailable
14
GASKET, REAR - Call your local BRP dealership
204130010
Unavailable
15
Washer, Nylon
204100158
Unavailable
16
SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership
204100094
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Carpet, Cockpit
204072321
Unavailable
19
Cover, Bow
204072202
Unavailable
20
Cover, Cockpit
204072322
Unavailable
21
Tower Ass'y | Includes 1 to 2
204071416
Unavailable
22
Fluted Knob
204071433
Unavailable
23
SKI MIRROR - Call your local BRP dealership This part replaces 204071420.
295100386
Unavailable
24
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership
204100129
Unavailable
25
Tower pad
204072602
Unavailable
