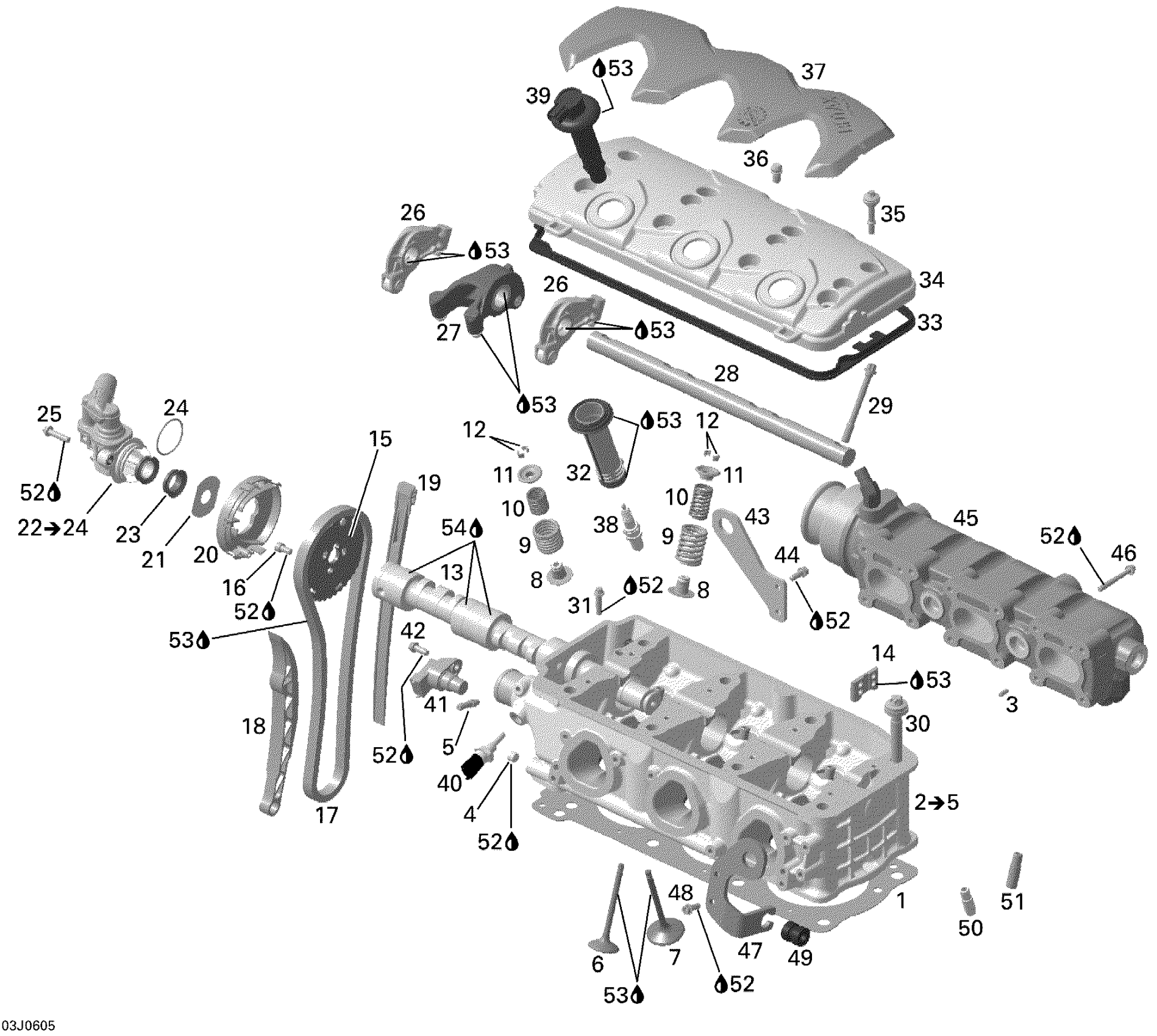

Sea-doo Utopia 205, Edition 2, 2006 01- Cylinder Head Diagram
#
1
Cylinder Head Gasket This part replaces 420950770.
420950771
$121.99
2
Cylinder Head Ass'y | Includes 2 to 5
420613978
$776.99
3
Drive Pin 5 X 10
420929650
$1.68
4
Plug Screw M10 X 1
420641323
$14.28
5
Hose Nipple
420924724
$14.83
6
Exhaust Valve, 31 mm
420254682
$104.99
7
Intake Valve 38MM
420253163
$41.49
8
Valve Steam Seal
420630202
$7.90
9
Valve Spring
420238180
$15.89
10
Valve Spring Inside
420838280
$12.72
11
Valve Spring Retainer
420254283
$8.57
12
Valve Cotter
420253645
$7.41
13
Camshaft This part replaces 420837851.
420637780
Unavailable
14
Camshaft Guide
420851694
$31.99
15
Timing Gear, 38 Teeth
420254309
$69.99
16
Allen Screw M6 X 12
420840032
$4.44
17
Camshaft Chain
420898042
$97.49
18
Chain Tension Guide
420236541
$15.89
19
Chain Guide
420236501
$14.28
20
Cover
420660037
$23.49
21
Thrust Washer
420627494
$7.41
22
Vent Valve | Includes 22 to 24
420856500
$98.49
23
V-Ring 20S FPM Blow By Valve
420630125
$11.63
24
O-Ring
420950870
$5.39
25
Torx Flange Screw M6 X 25
420641238
$3.27
26
Rocker Arm, Exhaust
420254329
$137.49
27
Rocker Arm, Inner
420254316
$179.99
28
Rocker Arm, Shaft
420854594
$201.49
29
Torx Screw M8 X 72
420641080
$5.29
30
Torx Flange Screw M11 X 147
420641110
$11.58
31
Torx Flange Screw M6 X 25
420641238
$3.27
32
Spark Plug Pipe
420851754
$27.49
33
Valve Cover Gasket | Included in gasket kit
420950820
$32.99
34
VALVE COVER - Call your local BRP dealership
420811587
Unavailable
35
Hex Screw M6 X 30
420440568
$8.58
36
TORX SCREW M6 X 8 - Call your local BRP dealership
420641488
Unavailable
37
Valve Cover
420660167
$58.49
38
Spark Plug, NGK DCP-R8E
715900637
$6.35
39
Ignition Coil Kit This part replaces 420664020.
296000307
$104.99
40
Temperature Sensor
278002895
$39.99
41
Camshaft Position Sensor Ass'y
420664046
$88.99
42
Torx Flange Screw M6 X 16
420641048
$2.96
43
Transport Bracket PTO
420851618
$27.49
44
Torx Flange Screw M6 X 16
420641048
$2.96
45
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.
296000422
$839.99
46
Torx Flange Screw M6 X 45
420641198
$4.12
47
TRANSPORT BRACKET FRONT - Call your local BRP dealership
420951380
Unavailable
48
Torx Flange Screw M6 X 16
420641048
$2.96
49
Rubber Bracket
420660090
$4.12
50
Valve Guide | Inner diameter machined
420253929
$46.49
51
Valve Guide | Inner diameter machined
420253929
$46.49
52
Loctite 243, 10 ml
293800060
$21.49
53
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
54
Isoflex Grease, TOPAS NB52, 50 g
293550021
$56.99
