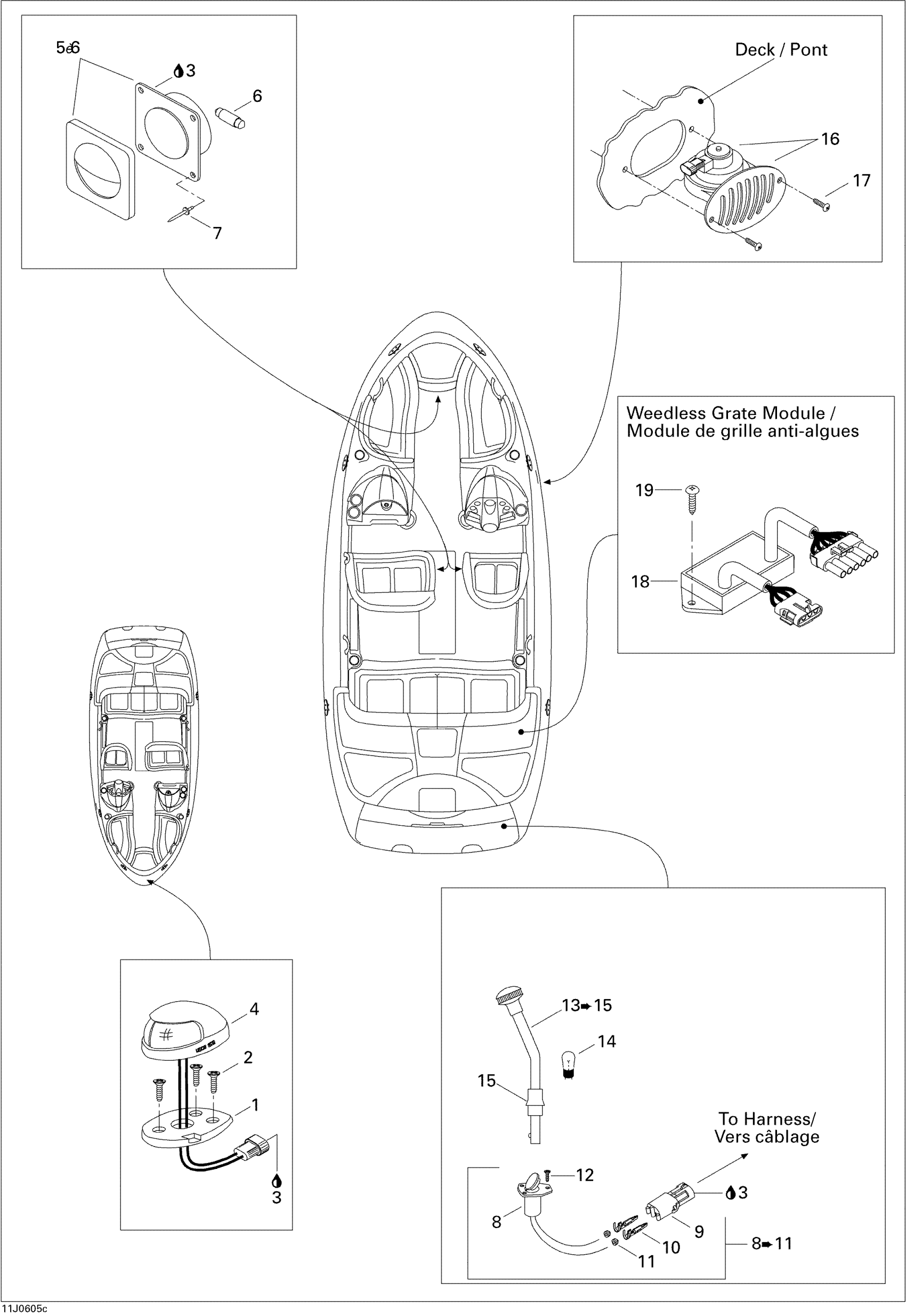

Sea-doo Utopia 205, Edition 1, 2006 10- Electrical Accessories 3 Diagram

#

Description
Price

1

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

2

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

Front Lamp

204470372

Unavailable

5

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

6

BULB - Call your local BRP dealership

204470081

Unavailable

7

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

8

REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.

204470642

Unavailable

9

Female Housing, 2 Circuits

278000217

$9.59

10

Male Terminal | XT Models

278000222

$3.19

11

Wire Seal

278000218

$4.39

12

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

13

REAR LAMP POLE - Call your local BRP dealership | Includes 26 to 28

204470625

Unavailable

14

Bulb

204470053

Unavailable

15

COLLAR - Call your local BRP dealership

204470350

Unavailable

16

HORN - Call your local BRP dealership

204470801

Unavailable

17

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

18

Weedless Grade Module

204470887

Unavailable

19

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable
