- Utopia 205, Edition 1, 2006
10- Electrical Accessories 2

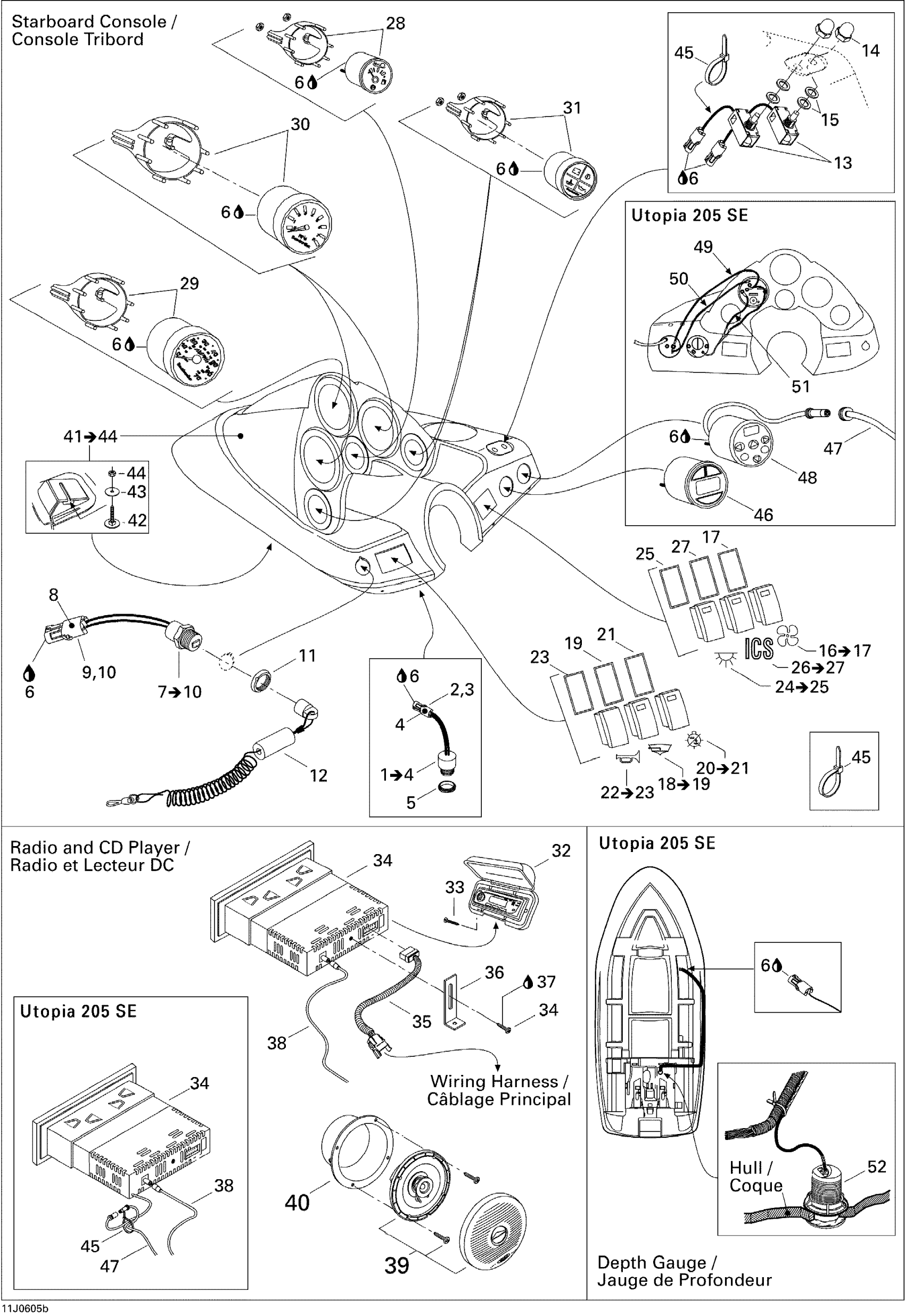

Sea-doo Utopia 205, Edition 1, 2006 10- Electrical Accessories 2 Diagram
#
1
Buzzer Ass'y
204470913
$92.99
2
Male Terminal | XT Models
278000222
$3.19
3
Wire Seal
278000218
$4.39
4
Female Housing, 2 Circuits
278000217
$9.59
5
Buzzer Nut
278000707
Unavailable
6
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
7
Safety Switch This part replaces 278002325.
278002773
$114.99
8
Male Housing, 3 Circuits
278000273
$9.59
9
Wire Seal
278000218
$4.39
10
Female Terminal
278000223
$3.19
11
Safety Nut (DESS Switch)
278002963
$3.28
12
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
13
IGNITION SWITCH - Call your local BRP dealership
278000621
Unavailable
14
IGNITION SWITCH CAP, RED - Call your local BRP dealership
278000565
Unavailable
15
FLAT WASHER - Call your local BRP dealership
204100027
Unavailable
16
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
17
Gasket
204470132
Unavailable
18
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
19
Gasket
204470132
Unavailable
20
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
21
Gasket
204470132
Unavailable
22
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
23
Gasket
204470132
Unavailable
24
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
25
Gasket
204470132
Unavailable
26
INLET CLEARANCE SYSTEM SWITCH, ICS - Call your local BRP dealership | Includes 34 To 35
204471048
Unavailable
27
Gasket
204470132
Unavailable
28
Fuel Gauge
204471055
Unavailable
29
Speedometer
204470943
Unavailable
30
Tachometer Gauge
204471019
Unavailable
31
ENGINE WARNING GAUGE - Call your local BRP dealership
204470959
Unavailable
32
RADIO CD PLAYER COVER - Call your local BRP dealership
204470894
Unavailable
33
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
34
Stereo Compact Disk Player/radio
204471056
Unavailable
34
Compact Disk Stereo Player/radio
204471057
Unavailable
35
Stereo Adaptor Harness
204470930
Unavailable
36
90 RADIO SUPPORT - Call your local BRP dealership
204470926
Unavailable
37
Loctite 243, 10 ml
293800060
$21.49
38
Antenna
204470931
Unavailable
39
Speaker, White
204471059
Unavailable
40
SPEAKER COVER ASS'Y - Call your local BRP dealership
204470982
Unavailable
41
Dash Panel Ass'y | Includes 49 to 52
204471009
Unavailable
41
Dash Panel Ass'y | Includes 49 to 50
204471036
Unavailable
42
Elevator Bolt
204000130
Unavailable
43
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
44
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
45
Tie Wrap 142 mm
293750002
$1.25
46
DEPTH GAUGE - Call your local BRP dealership
204470917
Unavailable
47
Stereo Remote Cable
204470993
Unavailable
48
Cd Player/radio Remote Control
204471058
Unavailable
49
Ground Wire | Utopia 205 SE
204471084
Unavailable
50
Back Light Wire Ass'y | Utopia 205 SE
204471085
Unavailable
51
Power Wire Ass'y, Purple | Wake
204470995
Unavailable
52
Depth Sensor
204471292
$194.99
