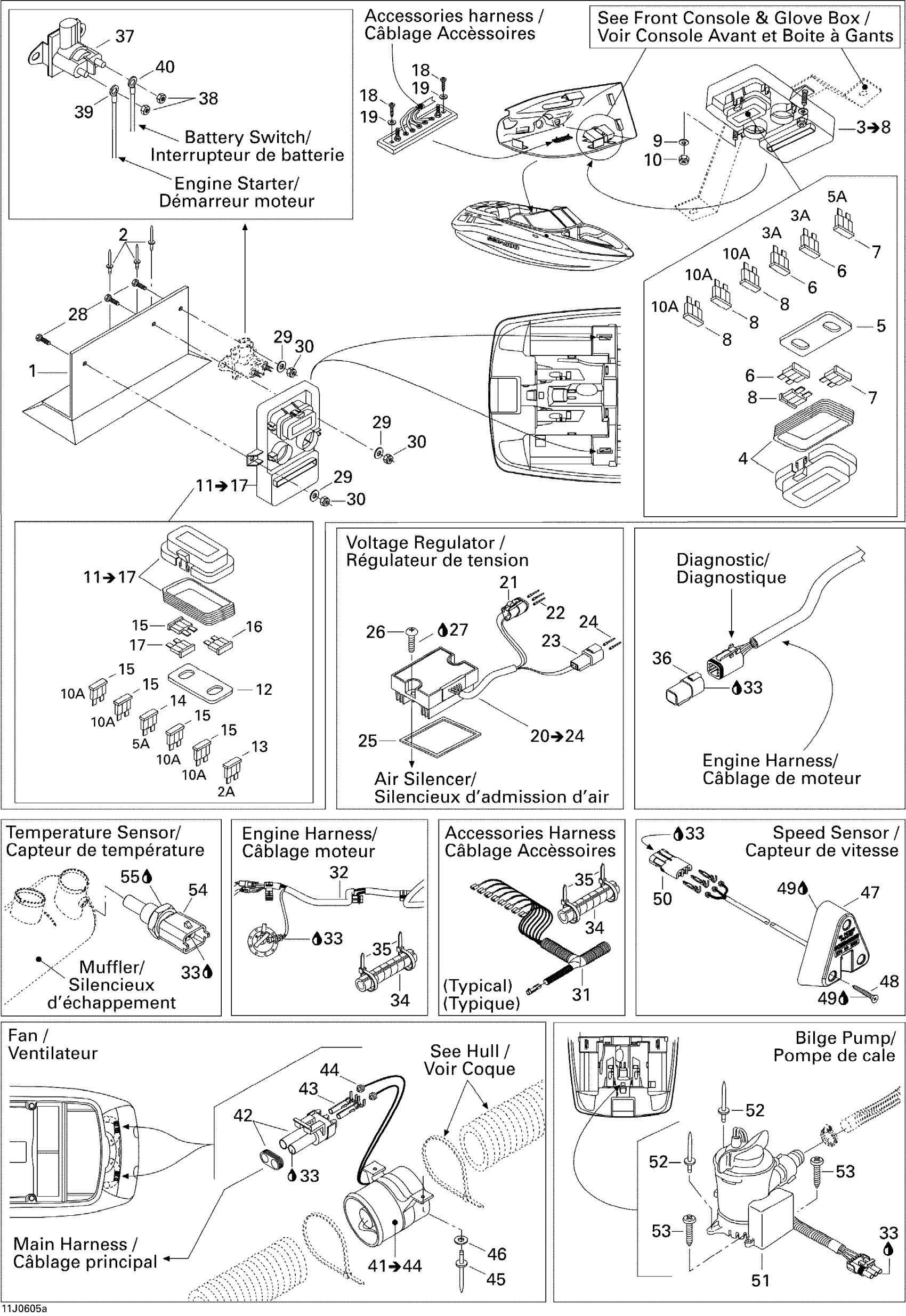

Sea-doo Utopia 205, Edition 1, 2006 10- Electrical Accessories 1 Diagram

#

Description
Price

1

BRACKET - Call your local BRP dealership

204471071

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.56

3

TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America

204471262

Unavailable

4

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

5

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

6

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

7

Fuse, 5 Amperes | CE

278000344

$3.28

8

Fuse, 10 Amperes | North America

278001197

$2.21

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

12

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

13

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

14

Fuse, 5 Amperes | CE

278000344

$3.28

15

Fuse, 10 Amperes | North America

278001197

$2.21

16

Fuse, 20 Amperes

409003900

$3.28

17

Fuse, 30 Amperes

410917200

$3.28

18

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

19

Flat Washer 4 mm, Stainless

234041600

$1.15

20

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

$174.99

21

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

22

Female Terminal

278000632

$2.09

23

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

24

Male Terminal

515175568

$9.12

25

SEAL - Call your local BRP dealership

293250123

Unavailable

26

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

27

Loctite 271, 10 ml

293800005

$26.99

28

Hex. Forming Screw M6 X 20

207162060

$1.29

29

Flat Washer M6, Stainless

234062600

$0.77

30

Hex. Elastic Stop Nut M6

232561600

$1.15

31

Accessory Harness

204471027

Unavailable

32

Engine Harness | Starboard

204470811

Unavailable

32

Engine Harness

204470973

Unavailable

33

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

34

SLIT CONDUIT - Call your local BRP dealership

204471077

Unavailable

35

Tie Wrap 142 mm

293750002

$1.25

36

Diagnostic Connector

278002704

$19.49

37

Starter Relay

278003012

$42.49

38

Hex. Elastic Stop Nut M6

232561600

$1.15

39

Red Cable

204470852

Unavailable

39

RED CABLE - Call your local BRP dealership

204470798

Unavailable

40

RED CABLE - Call your local BRP dealership

204470853

Unavailable

40

RED CABLE - Call your local BRP dealership | Starboard

204470838

Unavailable

41

Fan Ass'y | Includes 44 to 47

204470108

$144.99

42

Male Connector, 2 Circuits

278000220

$15.49

43

Female Terminal

278000223

$3.19

44

Wire Seal

278000218

$4.39

45

Pop Rivet 3/16"

293150008

$0.50

46

Flat Washer 5 mm, Stainless

234052600

$0.77

47

Speed Sensor

278001993

$169.99

48

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

49

Silicone Sealant 51388, 300 ml

296000309

$36.99

50

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

51

Bilge Pump

204471072

Unavailable

52

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

53

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

54

Temperature Sensor

278002895

$39.99

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
