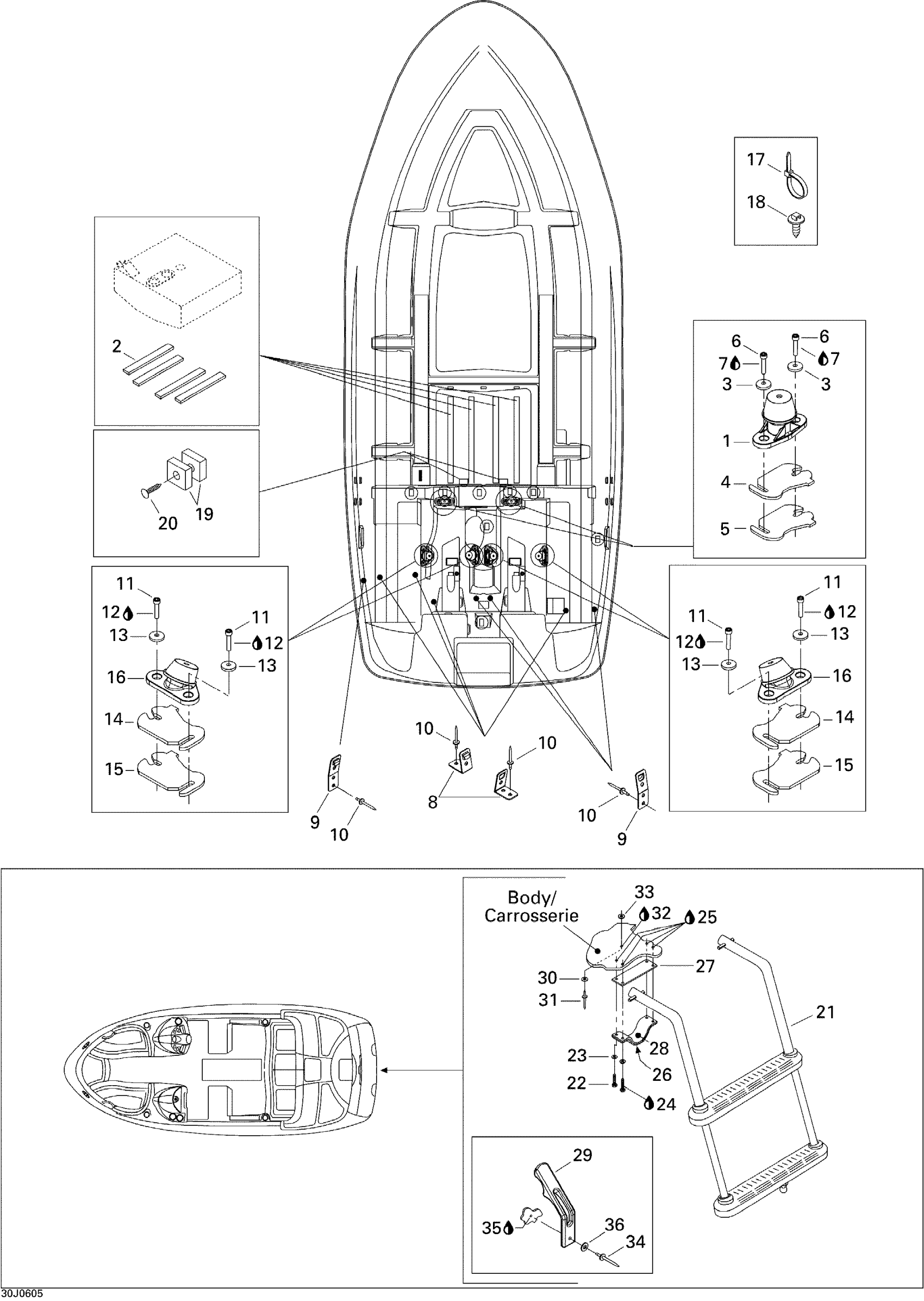

Sea-doo Utopia 205, Edition 1, 2006 09- Lower Hull And Ladder Diagram
#
Description
Price
1
RUBBER MOUNT - Call your local BRP dealership
270000671
Unavailable
2
PROTECTOR PAD - Call your local BRP dealership
204560115
Unavailable
3
Cone Washer
250200018
$5.61
4
Shim 0.3 mm - Call your local BRP dealership
204250048
Unavailable
5
SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.
204250049
Unavailable
6
Socket Head Screw M8 X 45
205084560
$3.59
7
Loctite 243, 10 ml
293800060
$21.49
8
Strap Clip 90°
204060017
Unavailable
9
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
10
Avdel Rivet 3/16"
293150037
$0.56
11
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
12
Loctite 243, 10 ml
293800060
$21.49
13
Cone Washer
250200018
$5.61
14
SHIM 0.3 MM - Call your local BRP dealership
270000445
Unavailable
15
Shim 1.3 mm
270000762
$12.99
16
Engine Support Ass'y
270001081
$109.99
17
Tie Wrap 368 mm
293750008
$1.04
17
Tie-Rap 180 mm
414115200
$0.11
18
Mount Dart
293730040
$1.04
19
RUBBER PAD - Call your local BRP dealership
204060684
Unavailable
20
Black Dart
293730014
$0.99
21
LADDER - Call your local BRP dealership
204060186
Unavailable
22
Hex. Screw M6 X 35
207163560
$1.49
23
Lock Washer Helical M6
234161601
$1.15
24
Loctite 243, 10 ml
293800060
$21.49
25
Silicone Sealant 51388, 300 ml
296000309
$36.99
26
LADDER CLIP - Call your local BRP dealership
204060055
Unavailable
27
PROTECTOR 97 - Call your local BRP dealership
204060057
Unavailable
28
PROTECTOR 158 - Call your local BRP dealership
204060056
Unavailable
29
Hood Latch
570027100
$13.49
30
Flat Washer M6, Stainless
234062600
$0.77
31
Pop Rivet 3/16"
293150043
$2.09
32
Silicone Sealant 51388, 300 ml
296000309
$36.99
33
Flat Washer M5, Stainless
234051600
$0.77
34
Pop Rivet 3/16"
293150013
$1.37
35
Silicone Sealant 51388, 300 ml
296000309
$36.99
36
Flat Washer 5 mm, Stainless
234052600
$0.77
