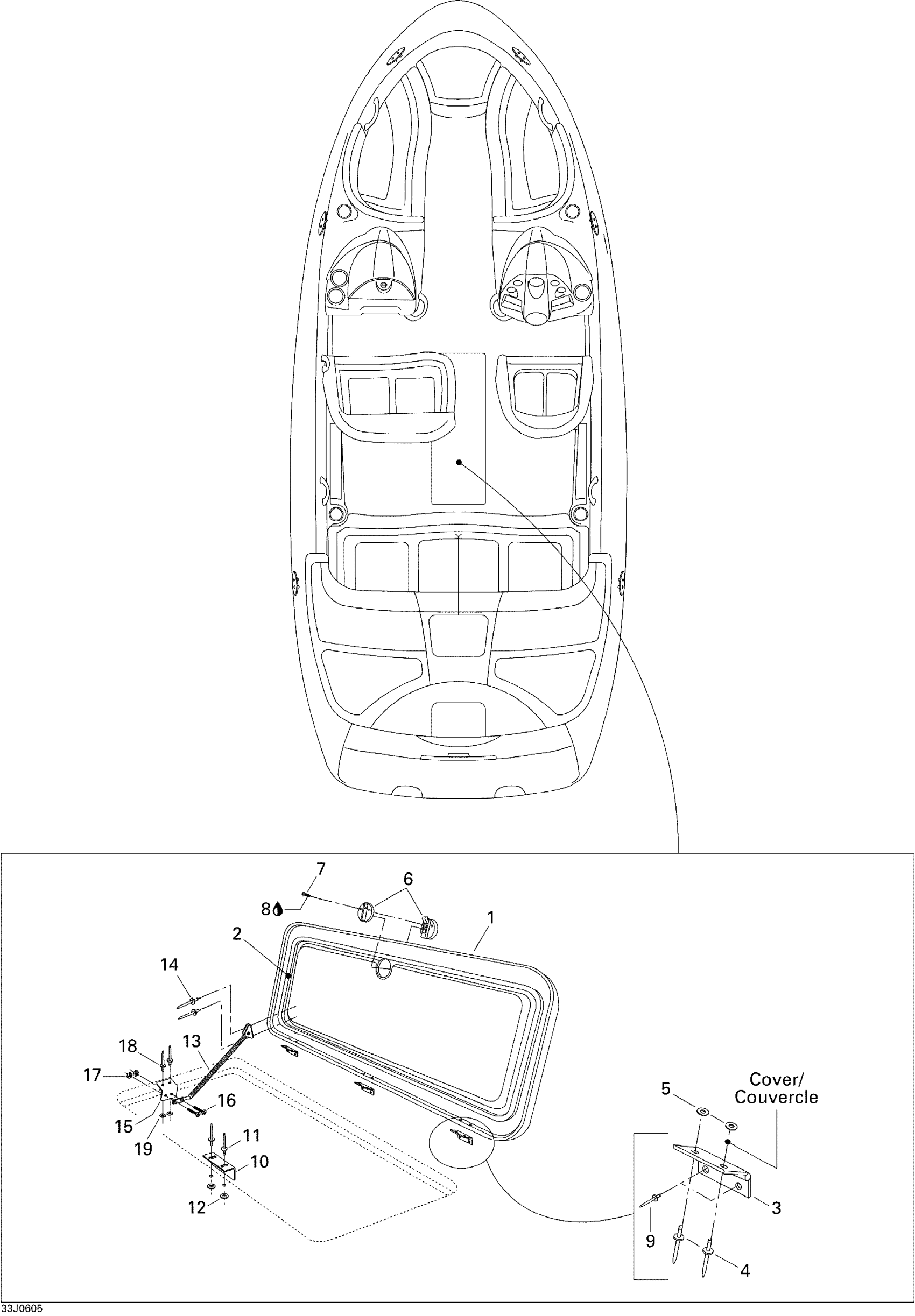

Sea-doo Utopia 205, Edition 1, 2006 09- Central Cover And Accessories Diagram

#

Description
Price

1

CENTRAL COVER - Call your local BRP dealership

204072636

Unavailable

2

Seal Tray 1000Mm Long

219704368

$13.99

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Pop Rivet 3/16"

293150088

$0.99

5

Flat Washer M5, Stainless

234051600

$0.77

6

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

7

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

8

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

9

Pop Rivet 3/16"

293150005

$0.52

10

KEEPER - Call your local BRP dealership

204070060

Unavailable

11

Pop Rivet 3/16"

293150088

$0.99

12

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

13

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

14

RIVET_POP 3/16 - Call your local BRP dealership

293150055

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

PHILLIPS SCREW 6-32 X 3/8 - Call your local BRP dealership

250000231

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Pop Rivet 3/16"

293150043

$2.09

19

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable
