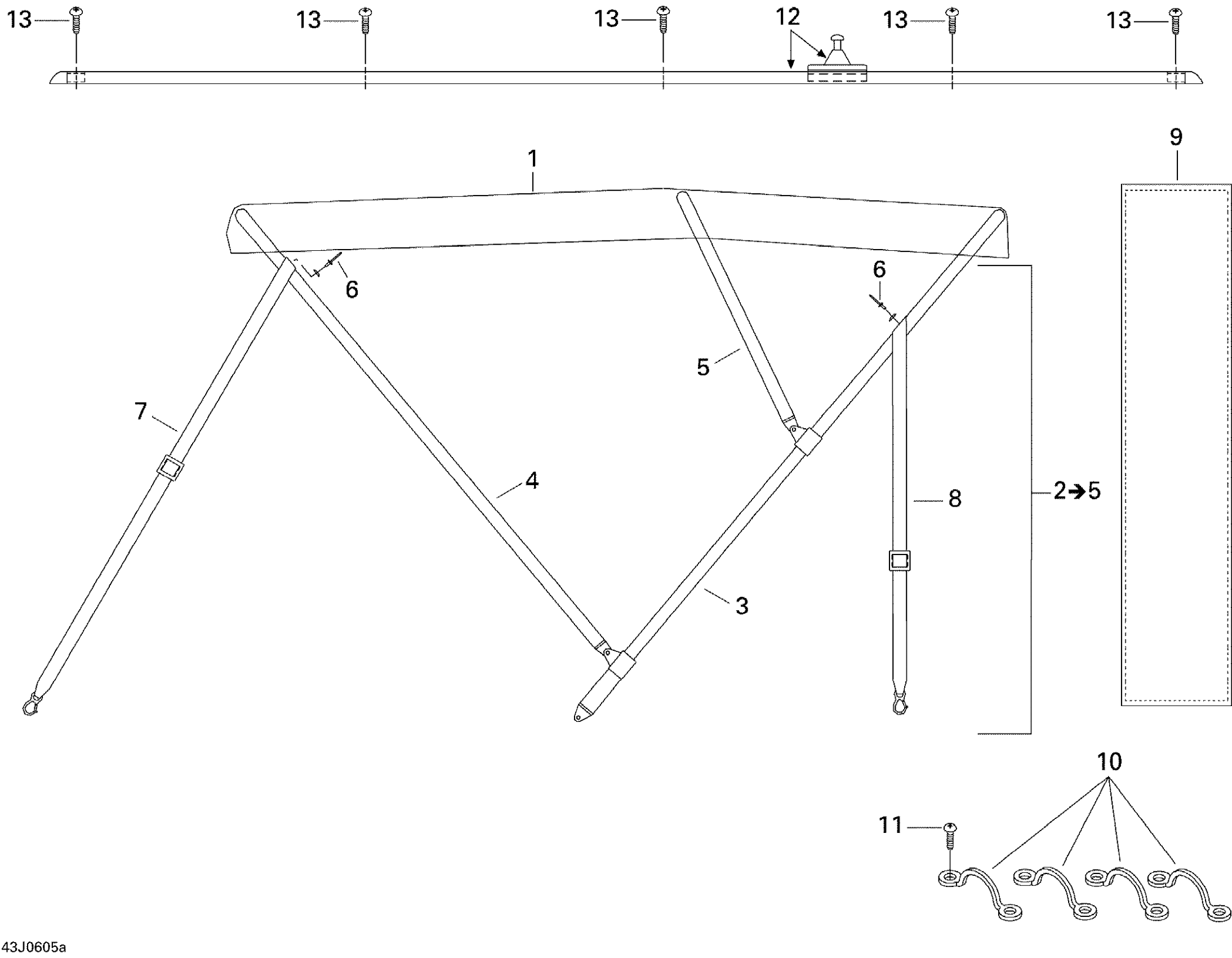

Sea-doo Utopia 205, Edition 1, 2006 Bimini Top Diagram

#

Description

Price

1

Bimini Top Canvas

204072171

Unavailable

2

Bimini Frame Ass’y | Includes 2 to 5

204071607

Unavailable

3

REAR BRACE - Call your local BRP dealership

204071608

Unavailable

4

FRONT BRACE - Call your local BRP dealership

204071609

Unavailable

5

Upper Brace

204071610

Unavailable

6

Pop Rivet 3/16"

293150039

$1.49

7

FRONT STRAP - Call your local BRP dealership

204071611

Unavailable

8

Rear Strap

204071612

Unavailable

9

Bimini Top Boot

204072172

Unavailable

10

Strap Tie

204070234

Unavailable

11

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

12

Slide Rail

204072333

Unavailable

13

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable
