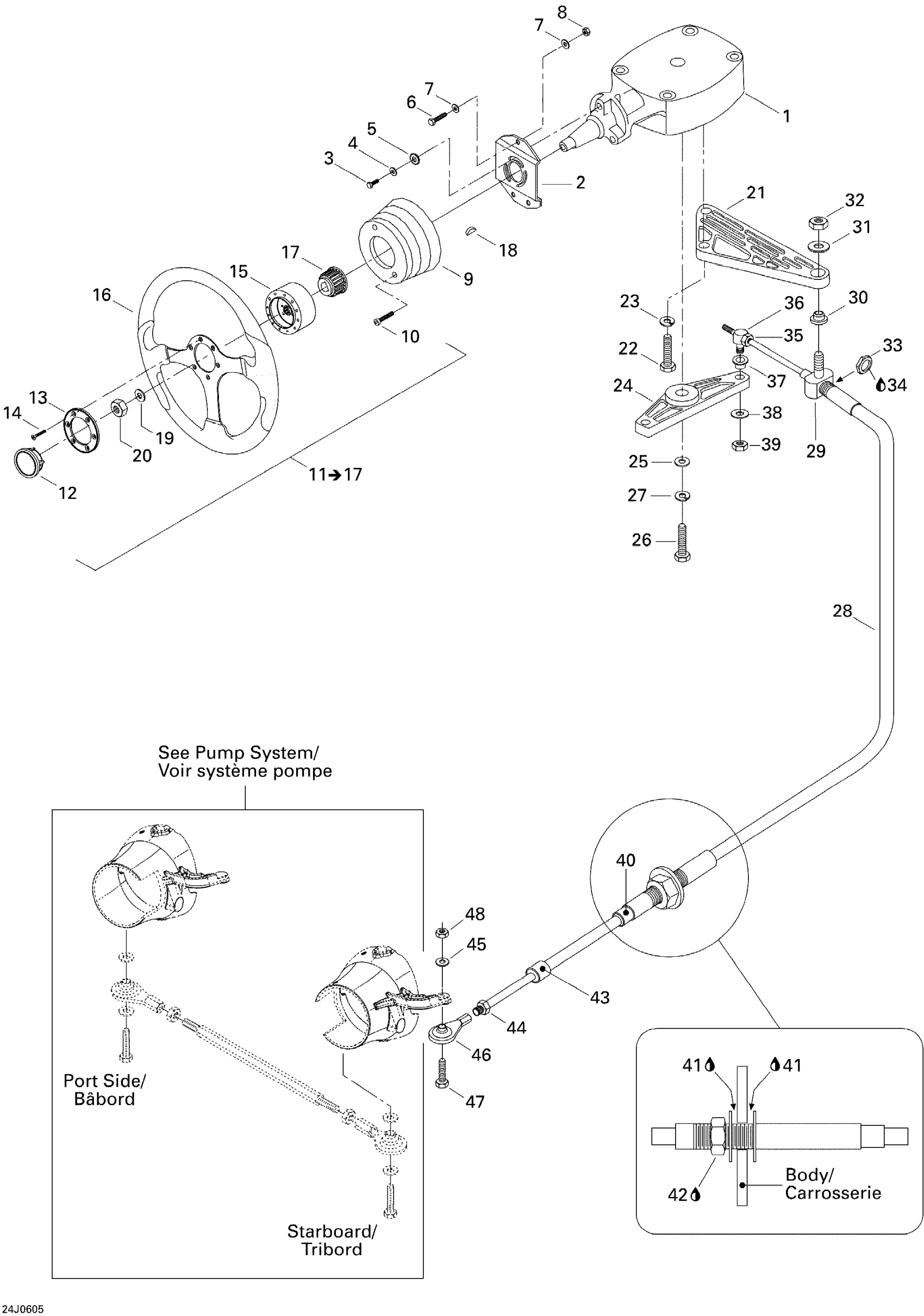

Sea-doo Utopia 205, Edition 1, 2006 07- Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
2
Support
277000383
Unavailable
3
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
4
Flat Washer M6, Stainless
234062600
$0.77
5
Serrated Lock Washer 8 mm
234481608
$1.15
6
Hex. Screw M6 X 30
207163060
$1.48
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
COLLAR, BLACK - Call your local BRP dealership
204390030
Unavailable
10
SCREW 8-32 X 1-1/4 - Call your local BRP dealership
204390059
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Center Cap
204390327
Unavailable
13
CENTER RING - Call your local BRP dealership
204390423
Unavailable
14
SCREW PACK - Call your local BRP dealership
204390329
Unavailable
15
Nylon Steering Hub
204390443
Unavailable
16
Steering Wheel
204390424
Unavailable
17
Steering Hub Insert
204390444
Unavailable
18
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
19
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
20
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
21
CABLE SUPPORT - Call your local BRP dealership
277000458
Unavailable
22
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
23
Lock Washer 1/4”
211200025
$1.29
24
ARM - Call your local BRP dealership
204390040
Unavailable
25
Flat Washer M6, Stainless
234062600
$0.77
26
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
27
Lock Washer 1/4”
211200025
$1.29
28
STEERING CABLE - Call your local BRP dealership | Single HO Engine Models
204390465
Unavailable
29
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
30
Flanged Bushing
293350014
$12.99
31
Flat Washer 10 mm, Stainless
234001600
$1.15
32
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
33
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
34
Loctite 243, 10 ml
293800060
$21.49
35
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
36
PIVOT - Call your local BRP dealership
277000456
Unavailable
37
BUSHING - Call your local BRP dealership
204130095
Unavailable
38
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
39
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
40
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
41
Silicone Sealant 51388, 300 ml
296000309
$36.99
42
Loctite 243, 10 ml
293800060
$21.49
43
Terminal Wiper
277000441
$11.99
44
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
45
Stainless Flat Washer M6
234061600
$0.33
46
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
47
Hex. Screw M6 X 35
207063560
$2.22
48
Hex. Elastic Stop Nut M6
232561600
$1.15
