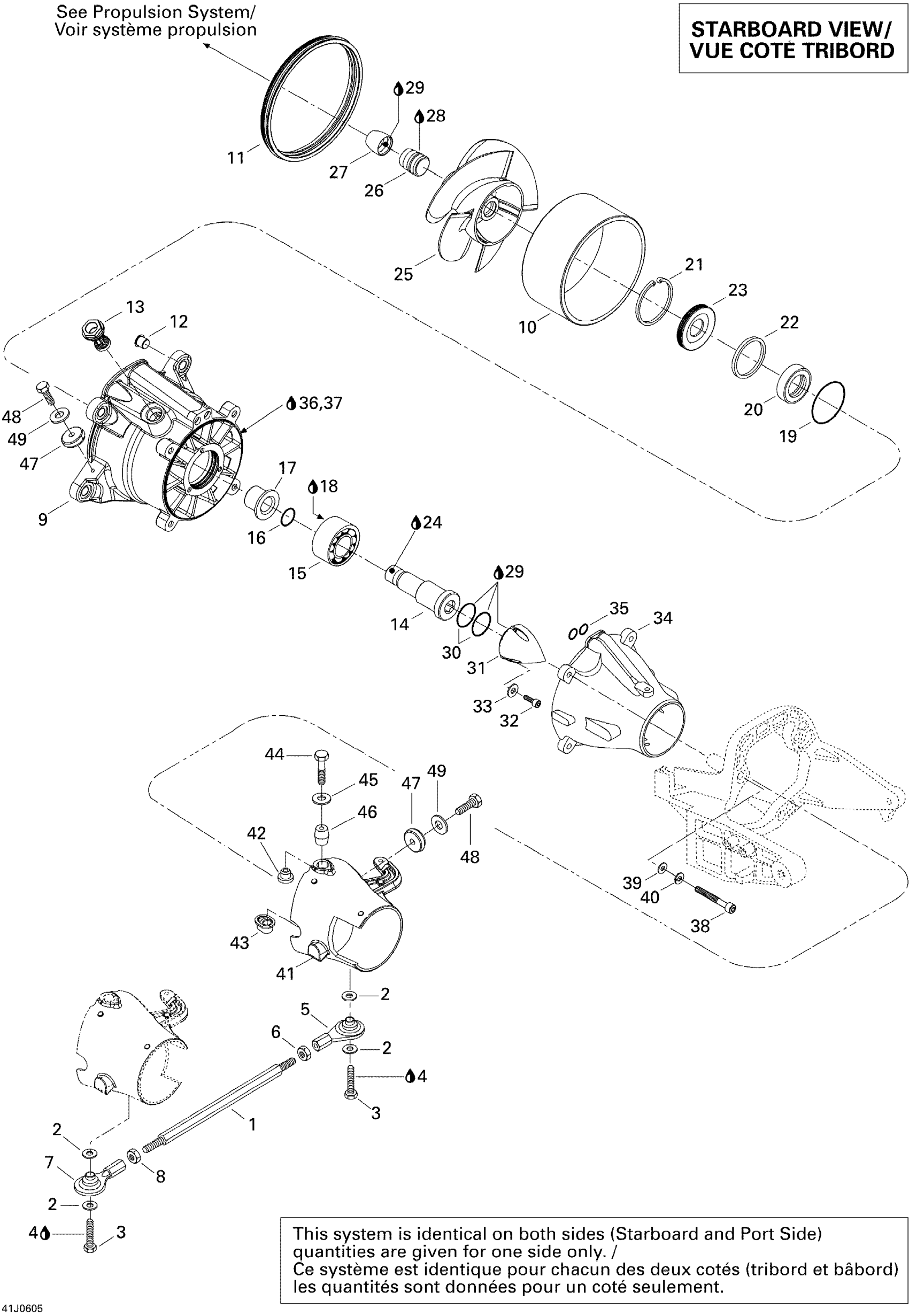

Sea-doo Utopia 205, Edition 1, 2006 Pump Diagram

#

Description
Price

1

LINK ROD - Call your local BRP dealership

204120255

Unavailable

2

Stainless Flat Washer M6

234061600

$0.28

3

Hex. Screw M6 X 25

207162560

$1.40

4

Loctite 243, 10 ml

293800060

$21.49

5

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

6

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

7

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

8

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

9

Impeller Housing

267000084

Unavailable

10

Wear Ring

267000419

$79.07

11

Neoprene Seal

293200087

$10.55

12

Bushing

267000093

$8.21

13

Plug | Includes 370z to 370z1

267000282

$16.39

14

Impeller Shaft

267000054

$108.18

15

Angled Bearing This part replaces 267000030.

267000900

$76.09

16

O-Ring

505070315

$2.69

17

Shaft Sleeve

267000318

$117.88

18

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

19

O-Ring

293300090

$6.85

20

Seal

271002071

$30.57

21

Circlip

293370038

$8.18

22

Spacer

271001393

$7.03

23

Oil Seal

293200089

$17.88

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Impeller Assy This part replaces 267000115.

267000673

$364.15

26

IMPELLER BOOT - Call your local BRP dealership

271001152

Unavailable

27

IMPELLER RING - Call your local BRP dealership

271001153

Unavailable

28

Synthetic Grease, 400 G

293550010

Unavailable

29

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

30

O-Ring

293300086

$3.33

31

Impeller Cover

267000262

$19.37

32

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

33

Stainless Flat Washer M6

234061600

$0.28

34

VENTURI, BLACK - Call your local BRP dealership

271001485

Unavailable

35

O-Ring

293300013

$6.54

36

Was 293800041 Loctite Primer 7649

219704458

$41.99

37

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

38

Socket Screw M8 X 110, Scotch Grip

231181060

$9.01

39

Flat Washer M8.5 x 18

293050001

$1.48

40

Lock Washer 8 mm, Stainless

234181601

$0.52

41

STEERING NOZZLE - Call your local BRP dealership | Port Side

204160293

Unavailable

41

STEERING NOZZLE - Call your local BRP dealership | Starboard

204160296

Unavailable

42

Venturi Bushing

293900001

$7.04

43

Plastic Bushing

293900010

$8.21

44

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

45

Flat Washer M8.5 x 18

293050001

$1.48

46

Sleeve

271001816

$13.30

47

Anode Zinc

271001813

$15.64

48

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

49

Stainless Flat Washer M6

234061600

$0.28
