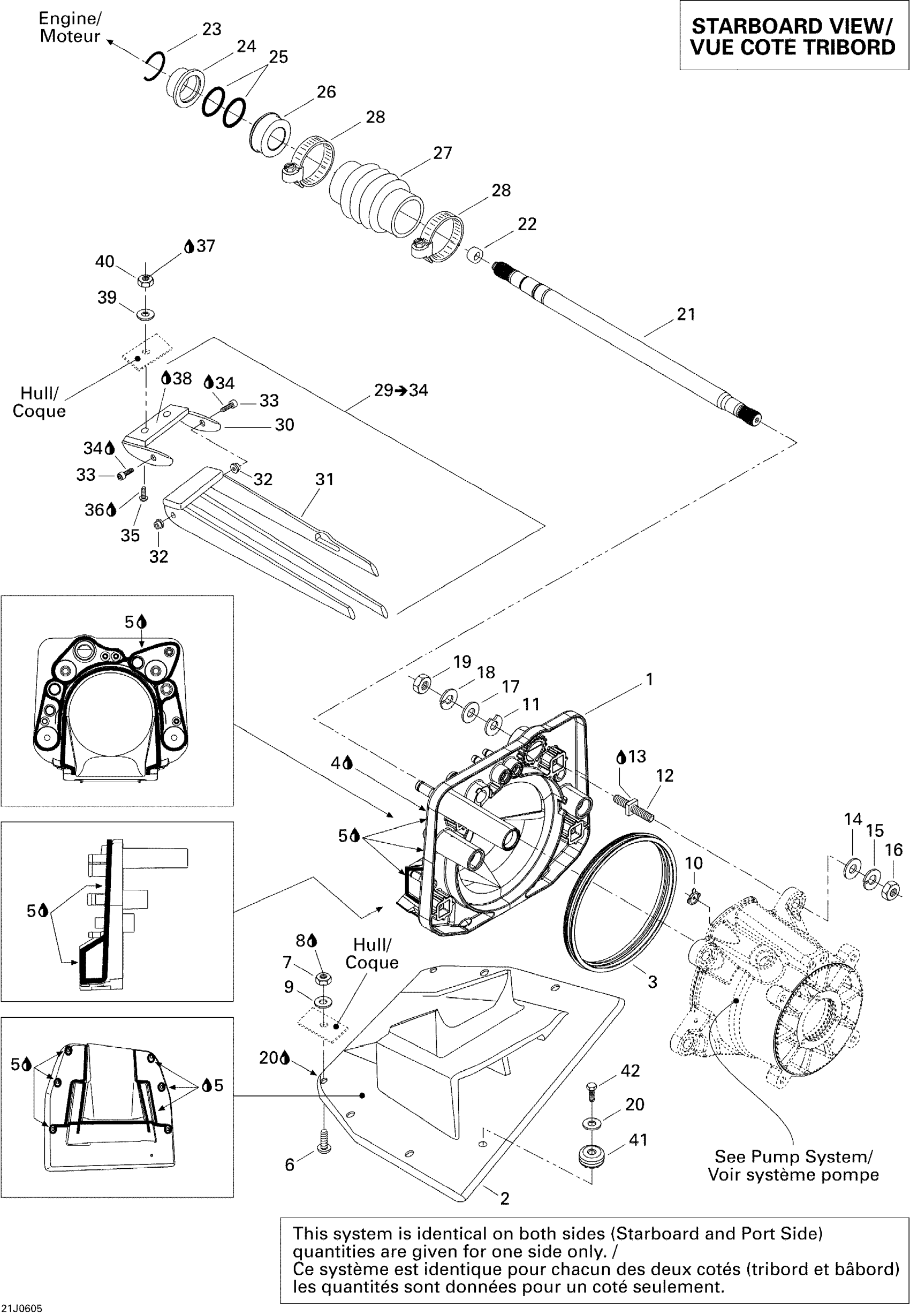

Sea-doo Utopia 205, Edition 1, 2006 05- Propulsion Diagram
#
1
PUMP SUPPORT - Call your local BRP dealership
204120313
Unavailable
2
Ride Plate, Port Side
204120299
Unavailable
2
Ride Plate, Starboard
204120300
Unavailable
3
Neoprene Seal
293200087
$12.63
4
Glue Tube, Loctite 454, 20 G
413708300
$60.99
5
Instant Gasket
219701421
$51.99
6
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
7
Hex. Elastic Stop Nut M6
232561600
$1.15
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
Flat Washer M6, Stainless
234062600
$0.77
10
Reducer This part replaces 291001887.
291004649
$17.49
11
Shim 0.3 mm
272000053
$11.49
11
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
12
Square Stud
250300022
$20.99
13
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
14
Flat Washer
211200051
$1.68
15
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
16
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
17
Flat Washer 10 mm, Stainless
234002600
$2.22
18
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
19
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
20
Instant Gasket
219701421
$51.99
21
Drive Shaft
271001449
$296.99
22
Drive Shaft Plug
272000173
$8.68
23
C-Clip
271001575
$6.11
24
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
25
O-Ring
293300044
$1.05
26
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
27
Bellows
272000183
$28.99
28
Norma Clamp
293650077
$7.41
29
Weedless Grate Ass’y, Starboard | Includes 29 to 34
204120258
Unavailable
29
Weedless Grate Ass’y, Port Side | Includes 29 to 34
204120259
Unavailable
30
Grate Support, Starboard
204120083
Unavailable
30
GRATE SUPPORT, PORT SIDE - Call your local BRP dealership
204120086
Unavailable
31
MOBILE GRATE, STARBOARD - Call your local BRP dealership
204120256
Unavailable
31
Mobile Grate, Port Side
204120257
Unavailable
32
PLASTIC BUSHING - Call your local BRP dealership
204390001
Unavailable
33
SOCKET SCREW M6 X 8 - Call your local BRP dealership
211000099
Unavailable
34
Loctite 243, 10 ml
293800060
$21.49
35
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
36
Loctite 243, 10 ml
293800060
$21.49
37
Silicone Sealant 51388, 300 ml
296000309
$36.99
38
Instant Gasket
219701421
$51.99
39
Flat Washer M6, Stainless
234062600
$0.77
40
Hex. Elastic Stop Nut M6
232561600
$1.15
41
Anode Zinc
271001813
$18.99
42
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
43
Stainless Flat Washer M6
234061600
$0.33
