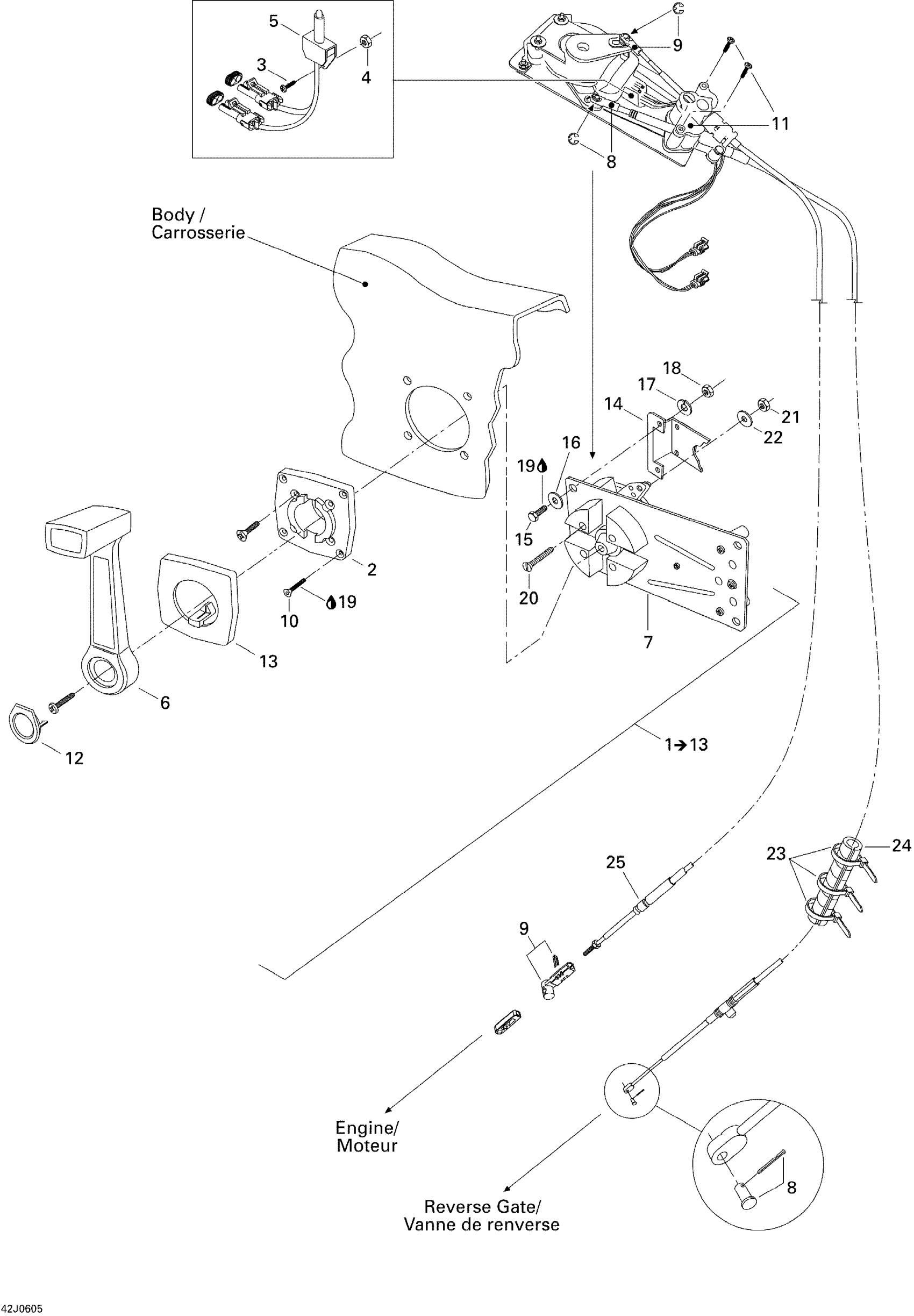

Sea-doo Utopia 205, Edition 1, 2006 Control Handle Diagram

#

Description
Price

1

ULTRAFLEX CONTROL - Call your local BRP dealership | Includes 1 to 13

204390446

Unavailable

2

INNER FLANGE - Call your local BRP dealership

204390322

Unavailable

3

Screw M3 X 10

204100103

Unavailable

4

Locking Nut M3

204100111

Unavailable

5

Double Neutral Switch

204390489

Unavailable

6

Shifter Handle

204390316

Unavailable

7

Shifter Mecanism

204390317

Unavailable

8

Cable Retainer Kit

204390318

Unavailable

9

CABLE RETAINER KIT - Call your local BRP dealership

204390319

Unavailable

10

SCREW M5 X 40 - Call your local BRP dealership | Europe

205354060

Unavailable

11

Shift Rod Cable Kit

295500919

Unavailable

12

LEVER CAP - Call your local BRP dealership

204390321

Unavailable

13

OUTER FLANGE - Call your local BRP dealership

204390314

Unavailable

14

Throttle Stop

204390466

Unavailable

15

Hex. Screw M6 X 16

207161660

$1.59

16

FLAT WASHER 6 MM - Call your local BRP dealership

234060600

Unavailable

17

Lock Washer Helical M6

234161601

$1.15

18

Hex. Nut M6

232061600

$1.15

19

Loctite 243, 10 ml

293800060

$21.49

20

Phillips Screw M5 X 40

208454060

Unavailable

21

Hex. Elastic Nut M5 | X

232551600

$1.15

22

Flat Washer M6, Stainless

234062600

$0.77

23

Tie-Rap 180 mm

414115200

$0.11

24

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

25

Throttle Cable

204390451

Unavailable
