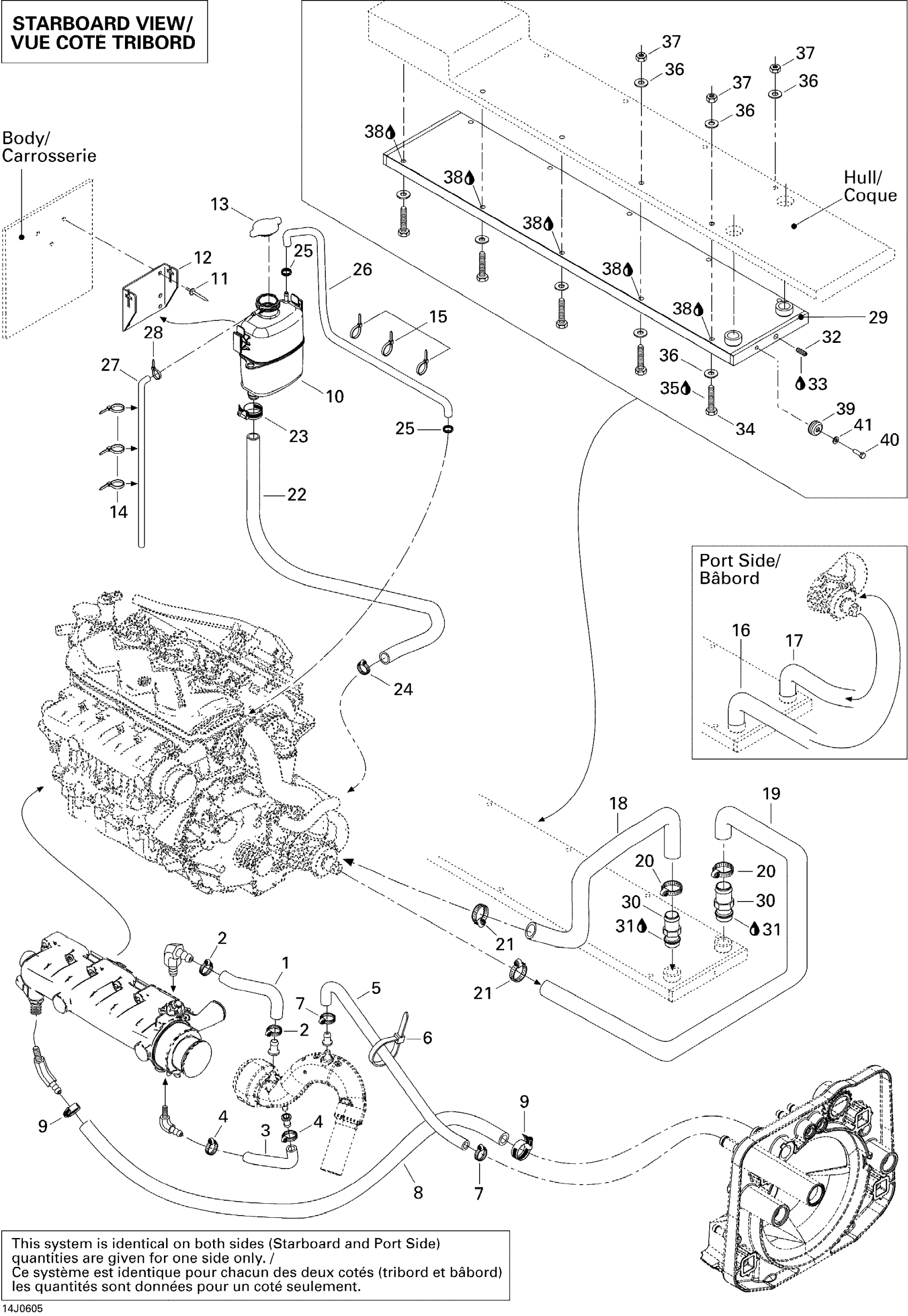

Sea-doo Utopia 205, Edition 1, 2006 Cooling System Diagram

#

Description
Price

1

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

2

Tridon Gear Clamp

293650172

$3.07

3

Lower Formed Hose

276000104

Unavailable

4

Tridon Gear Clamp

293650172

$3.07

5

Was 276000001 Hose 12.5 mm

219704394

$49.22

6

Tie Wrap 368 mm

293750008

$0.97

7

Tridon Gear Clamp

293650172

$3.07

8

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

9

Tridon Gear Clamp

293650051

$4.15

10

Coolant Tank

276000086

$100.72

11

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

12

Coolant Tank Bracket

204300165

Unavailable

13

Pressure Cap | Includes 720 to 720a

276000100

$23.85

14

Tie Wrap 142 mm

293750002

$1.01

15

Tie Wrap 142 mm

293750002

$1.01

16

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

17

Ride Plate Hose This part replaces 204300172.

423465058

Unavailable

18

Formed Hose | Starboard

204300173

Unavailable

19

Starboard Formed Hose - Call your local BRP dealership

204300174

Unavailable

20

Tridon Gear Clamp

293650045

$5.18

21

Tridon Gear Clamp

293650045

$5.18

22

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

23

Tridon Gear Clamp

293650051

$4.15

24

Tridon Gear Clamp

293650019

$5.52

25

Oetiker Gear Clamp

293650025

$2.82

26

Was 275500549 Hose 1/4"

219704357

$178.33

27

Polyurethane Hose 10000Mm Long

219704410

$52.96

28

Tie Wrap 94 mm | 4X4

293750001

$0.96

29

Heat Exchanger

204300155

Unavailable

30

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

31

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

32

Pipe Plug Socket Head 1/8-27 Npt

211500001

$8.06

33

Was 293800013 Loctite 56765

219704454

$63.40

34

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Flat Washer 10 mm, Stainless

234000600

$1.22

37

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

38

Instant Gasket

219701421

$51.99

39

Anode Zinc

271001813

$15.64

40

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

41

Stainless Flat Washer M6

234061600

$0.28
