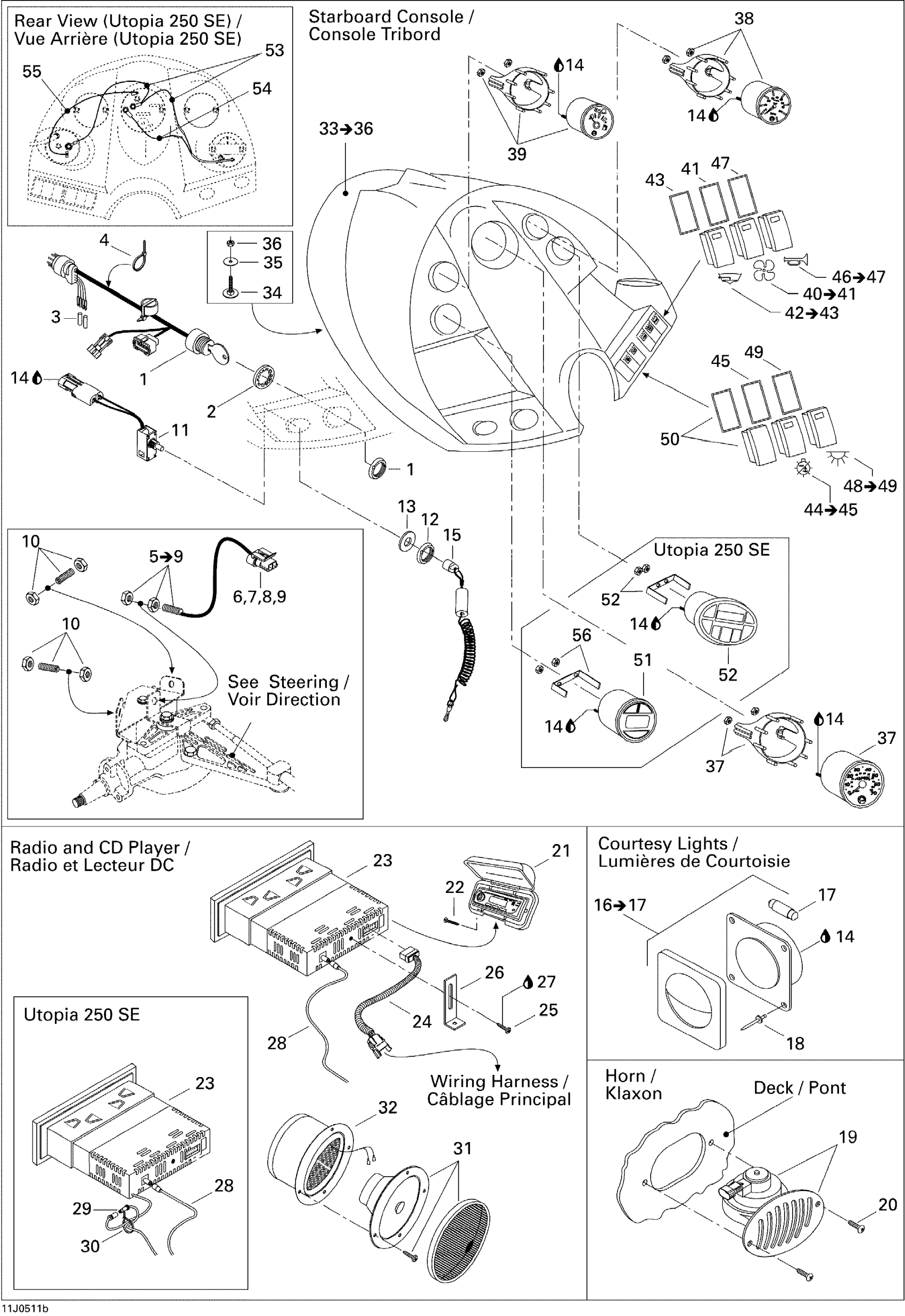

Sea-doo Utopia 205, 2005 10- Electrical Accessories 2 Diagram
#
1
Instrument Harness, Mercury
204470800
Unavailable
2
Internal Tooth Lock Washer 1"
204100085
Unavailable
3
RUBBER CAP - Call your local BRP dealership
204130033
Unavailable
4
Tie Wrap 94 mm | 4X4
293750001
$1.03
5
LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50
204470631
Unavailable
6
Female Terminal Housing
204470634
Unavailable
7
Terminal Support
204470635
Unavailable
8
Wire Seal
204470641
Unavailable
9
Female Terminal
278001481
$3.49
10
Low Speed Control Actuator
204470632
$42.99
11
SAFETY SWITCH ASS'Y - Call your local BRP dealership | Includes 10 to 13
204470867
Unavailable
12
Safety Switch Nut
278000099
Unavailable
13
FLAT WASHER - Call your local BRP dealership
204100027
Unavailable
14
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
15
Safety Lanyard
278001431
$47.49
16
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
17
BULB - Call your local BRP dealership
204470081
Unavailable
18
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
19
HORN - Call your local BRP dealership
204470801
Unavailable
20
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
21
RADIO CD PLAYER COVER - Call your local BRP dealership
204470894
Unavailable
22
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
23
Compact Disk Stereo
204470946
Unavailable
23
Compact Disk Stereo | Utopia 205 SE
204470916
Unavailable
24
Stereo Adaptor Harness
204470930
Unavailable
25
Pan Head Screw M5x8
204100148
Unavailable
26
90 RADIO SUPPORT - Call your local BRP dealership
204470926
Unavailable
27
Loctite 243, 10 ml
293800060
$21.49
28
Antenna
204470931
Unavailable
29
Stereo Remote Cable
204470993
Unavailable
30
Tie Wrap 94 mm | 4X4
293750001
$1.03
31
Speaker, White
204470948
Unavailable
32
SPEAKER COVER ASS'Y - Call your local BRP dealership
204470982
Unavailable
33
Top Dash Ass'y | Includes 31 to 34
204470936
Unavailable
33
Top Dash Ass'y | Includes 33 to 36, Utopia 205 SE
204470923
Unavailable
34
Elevator Bolt
204000130
Unavailable
35
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
36
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
37
Speedometer
204470943
Unavailable
38
Tachometer
204470944
Unavailable
39
FUEL/OIL GAUGE - Call your local BRP dealership
204470945
Unavailable
40
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
41
Gasket
204470132
Unavailable
42
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
43
Gasket
204470132
Unavailable
44
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
45
Gasket
204470132
Unavailable
46
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
47
Gasket
204470132
Unavailable
48
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
49
Gasket
204470132
Unavailable
50
SWITCH PLUG - Call your local BRP dealership
204470596
Unavailable
51
DEPTH GAUGE - Call your local BRP dealership
204470917
Unavailable
52
Stereo Remote | Utopia 205 SE
204470919
Unavailable
53
Black, Ground Wire Ass'y | Utopia 205 SE
204470994
Unavailable
54
Power Wire Ass'y, Purple | Wake
204470995
Unavailable
55
Back Light Wire Ass'y, Blue
204470996
Unavailable
56
Back Clamp, Depth Gauge | Utopia 205 SE
204471002
Unavailable
