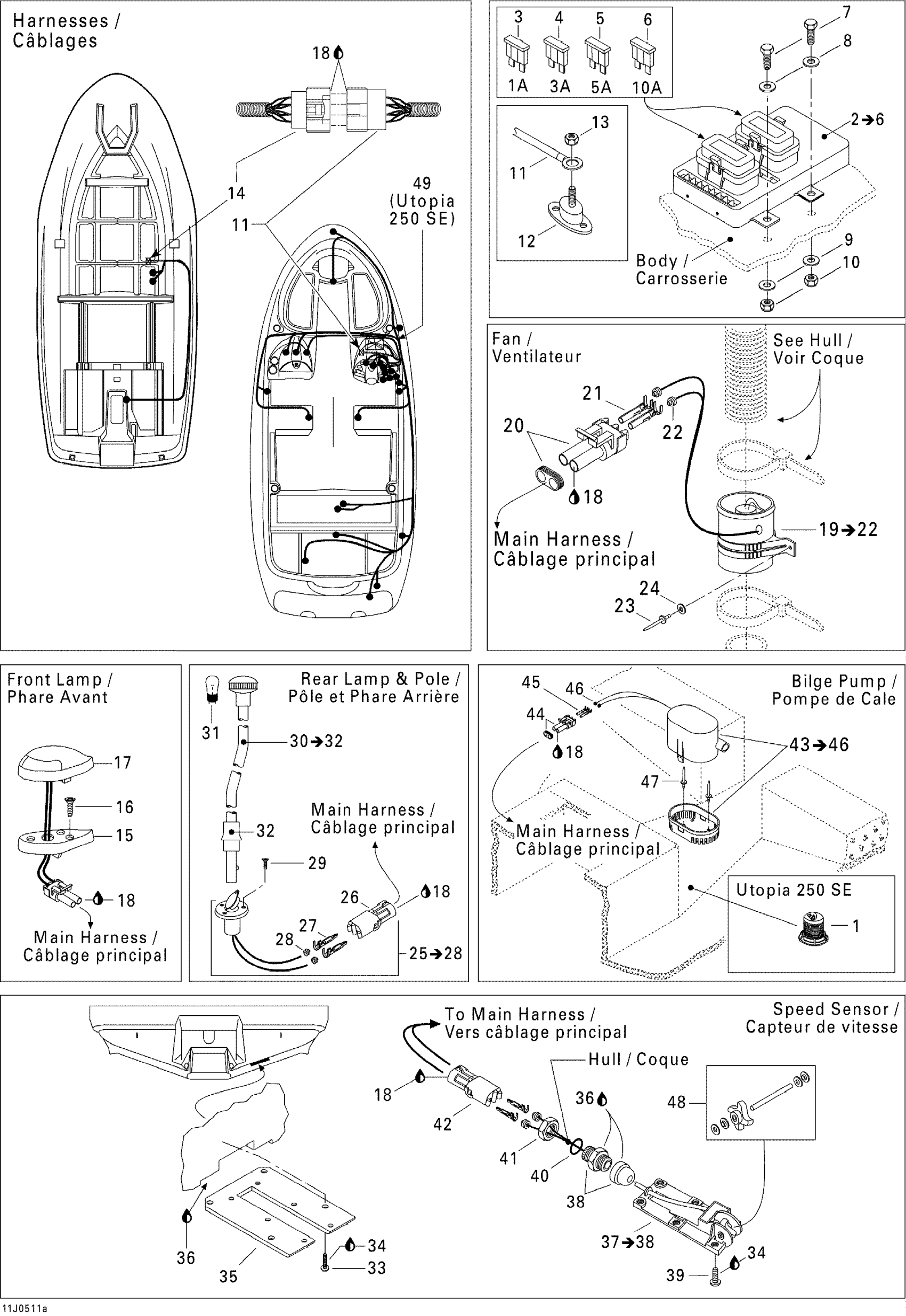

Sea-doo Utopia 205, 2005 10- Electrical Accessories 1 Diagram
#
1
Depth Sensor
204471292
$194.99
2
FUSE BLOCK - Call your local BRP dealership
204470815
Unavailable
3
FUSE, 1 AMPERE - Call your local BRP dealership
409012800
Unavailable
4
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
5
Fuse, 5 Amperes | CE
278000344
$3.28
6
Fuse, 10 Amperes | North America
278001197
$2.21
7
Hex. Screw M6 X 35
207063560
$2.22
8
Flat Washer M6, Stainless
234062600
$0.77
9
Flat Washer M6, Stainless
234062600
$0.77
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
Main Harness, Utopia 205
204470830
Unavailable
12
Ground Post
204470715
Unavailable
13
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
14
Instrument Harness, Mercury
204470800
Unavailable
15
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
16
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
17
Front Lamp
204470372
Unavailable
18
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
19
Fan Ass'y | Includes 44 to 47
204470108
$144.99
20
Male Connector, 2 Circuits
278000220
$15.49
21
Female Terminal
278000223
$3.19
22
Wire Seal
278000218
$4.39
23
Pop Rivet 3/16"
293150008
$0.50
24
Flat Washer 5 mm, Stainless
234052600
$0.77
25
REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.
204470642
Unavailable
26
Female Housing, 2 Circuits
278000217
$9.59
27
Male Terminal | XT Models
278000222
$3.19
28
Wire Seal
278000218
$4.39
29
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
30
REAR LAMP POLE - Call your local BRP dealership | Includes 26 to 28
204470625
Unavailable
31
Bulb
204470053
Unavailable
32
COLLAR - Call your local BRP dealership
204470350
Unavailable
33
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
34
Loctite 243, 10 ml
293800060
$21.49
35
Sensor Support
204470538
Unavailable
36
Silicone Sealant 51388, 300 ml
296000309
$36.99
37
SPEED SENSOR ASS'Y - Call your local BRP dealership | Includes 34 to 35
278001997
Unavailable
38
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
39
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
40
SEAL WASHER - Call your local BRP dealership
278000416
Unavailable
41
LOCKING NUT - Call your local BRP dealership
293710032
Unavailable
42
Female Housing, 2 Circuits
278000217
$9.59
43
Bilge Pump
204471431
Unavailable
44
Male Connector, 2 Circuits
278000220
$15.49
45
Female Terminal
278000223
$3.19
46
Wire Seal
278000218
$4.39
47
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
48
Paddle Wheel Kit
295500108
Unavailable
49
Stereo Remote Cable
204470993
Unavailable
