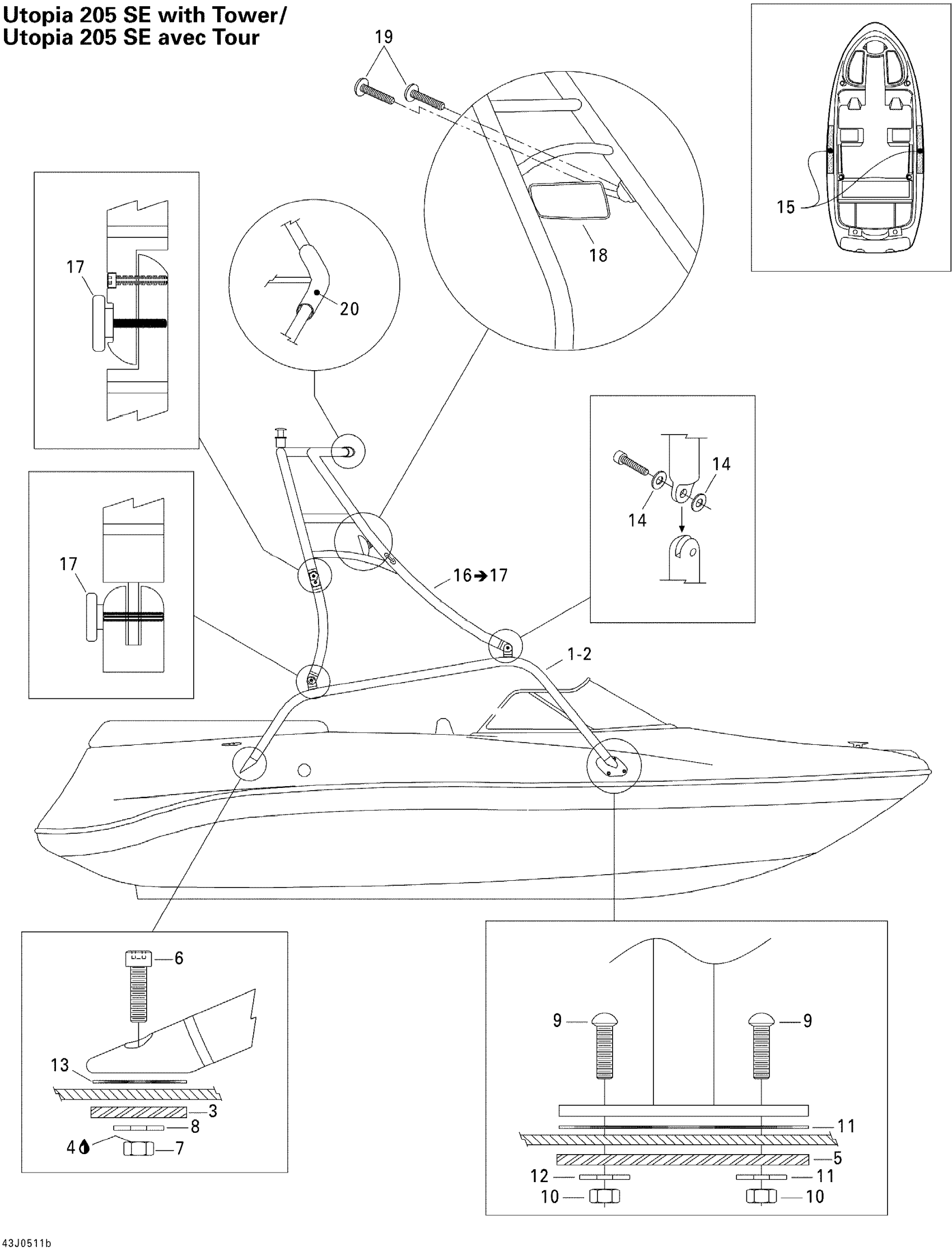

Sea-doo Utopia 205, 2005 Tower Diagram
#
Description
Price
1
RH Tower Rail
204072226
Unavailable
2
LH Tower Rail
204072227
Unavailable
3
Tower Insert
204072271
Unavailable
5
TOWER INSERT, FRONT - Call your local BRP dealership
204072228
Unavailable
6
SOCKET HEAD SCREW 5/8? X 2-1/2? - Call your local BRP dealership | Without Tower
204100092
Unavailable
7
LOCK NUT 5/8 - Call your local BRP dealership | Without Tower
204100093
Unavailable
8
WASHER - Call your local BRP dealership | Without Tower
204071423
Unavailable
9
SCREW-CTSK.OV.HD. 1/4-20 X 2 - Call your local BRP dealership
204100151
Unavailable
10
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
11
Gasket, Front
204130106
Unavailable
12
Flat Washer 1/4", Stainless
204100157
Unavailable
13
GASKET, REAR - Call your local BRP dealership
204130010
Unavailable
14
Washer, Nylon
204100158
Unavailable
15
Storage Deck Carpet
204072272
Unavailable
16
Tower Ass'y | Includes 1 to 2
204071416
Unavailable
17
Fluted Knob
204071433
Unavailable
18
SKI MIRROR - Call your local BRP dealership This part replaces 204071420.
295100386
Unavailable
19
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership
204100129
Unavailable
20
Storage Pad Ass'y
204071742
Unavailable
