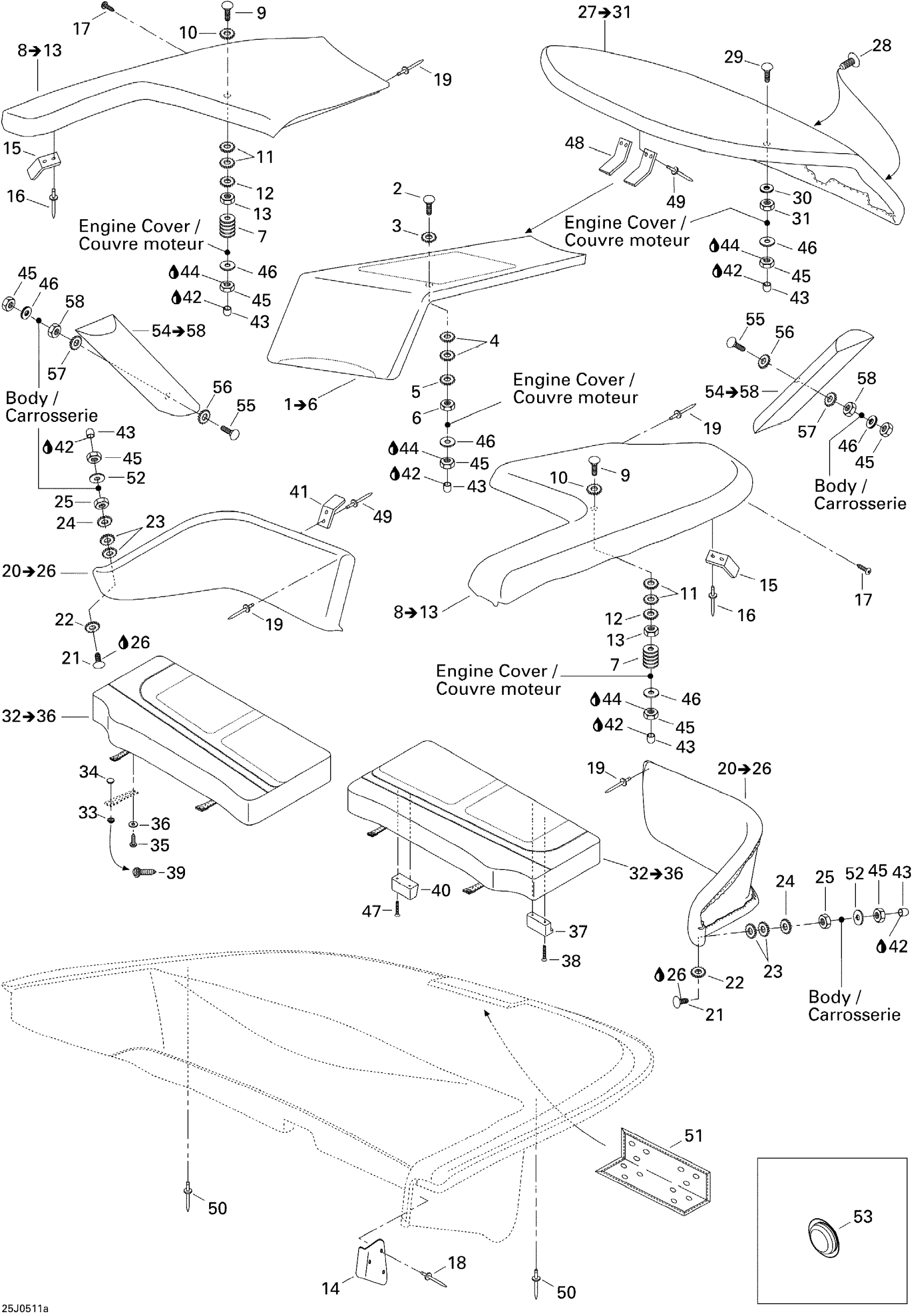

Sea-doo Utopia 205, 2005 09- Seat 1 Diagram
#
1
Center Sundeck Cushion | Includes 25 to 28
204612822
Unavailable
2
Elevator Bolt
204000130
Unavailable
3
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
4
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
5
External Serrated Lock Washer 6 mm
234461608
$1.15
6
Hex. Jam Nut
204100060
Unavailable
7
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
8
Sundeck Cushion, Port Side | Includes 19 to 22
204612823
Unavailable
8
Sundeck Cushion, Starboard | Includes 19 to 22
204612824
Unavailable
9
Screw #8 X 1/2”
204100088
Unavailable
10
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
11
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
12
External Serrated Lock Washer 6 mm
234461608
$1.15
13
Hex. Jam Nut
204100060
Unavailable
14
Upholstery Cap, Port Side
204611599
Unavailable
14
Upholstery Cap, Starboard
204611600
Unavailable
15
Slotted Keyhold Clip
204130029
Unavailable
16
Pop RIvet 1/8 X ,375
293150285
$0.33
17
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
18
Avdel Rivet 3/16"
293150037
$0.56
19
Pop Rivet 3/16"
293150013
$1.37
20
Sundeck Backrest, Port Side | Includes 6 to 9
204612825
Unavailable
20
Sundeck Backrest, Starboard | Includes 6 to 9
204612826
Unavailable
21
Elevator Bolt
204000130
Unavailable
22
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
23
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
24
External Serrated Lock Washer 6 mm
234461608
$1.15
25
Hex. Jam Nut
204100060
Unavailable
26
Loctite 243, 10 ml
293800060
$21.49
27
Rear Sundeck Cushion | Includes 36 to 38
204612827
Unavailable
28
Black, Dart
293730006
$0.99
29
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
30
External Serrated Lock Washer 6 mm
234461608
$1.15
31
Hex. Jam Nut
204100060
Unavailable
32
REAR CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 1 to 5
204612830
Unavailable
32
REAR CUSHION ASS'Y, STARBOARD - Call your local BRP dealership | Includes 1 to 5
204612831
Unavailable
33
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
34
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
35
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
36
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
37
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
38
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
39
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
40
LATCH - Call your local BRP dealership
204611805
Unavailable
41
RETAINING CLIP - Call your local BRP dealership
204611531
Unavailable
42
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
43
Plastic Cap, White
204130008
Unavailable
44
Loctite 243, 10 ml
293800060
$21.49
45
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
46
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
47
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
48
SUNDECK PLATE - Call your local BRP dealership
204611597
Unavailable
49
Pop Rivet 3/16"
293150008
$0.50
50
Pop Rivet 3/16"
293150008
$0.50
51
Hinge Cover
204612869
Unavailable
52
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
53
Black Plug
291000279
$7.69
54
Soundpad Ass'y, Starboard | Includes 54 to 58
204612836
Unavailable
54
Soundpad Ass'y, Port Side | Includes 54 to 58
204612837
Unavailable
55
Elevator Bolt
204000130
Unavailable
56
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
57
External Serrated Lock Washer 6 mm
234461608
$1.15
58
Hex. Jam Nut
204100060
Unavailable
