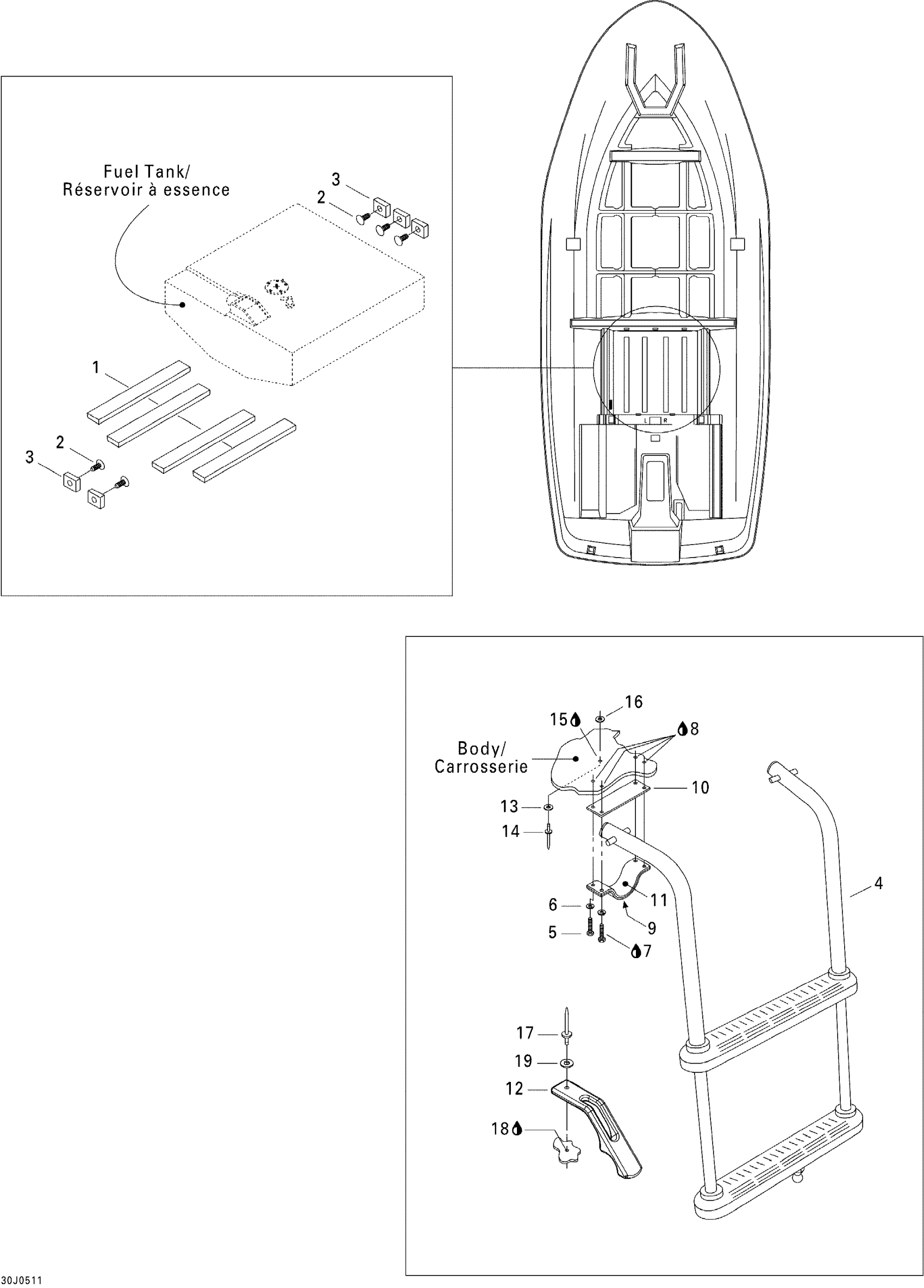

Sea-doo Utopia 205, 2005 Lower Hull And Ladder Diagram

#

Description
Price

1

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

2

Black, Dart

293730006

$0.99

3

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

4

LADDER - Call your local BRP dealership

204060186

Unavailable

5

Hex. Screw M6 X 35

207163560

$1.49

6

Lock Washer Helical M6

234161601

$1.15

7

Loctite 243, 10 ml

293800060

$21.49

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

LADDER CLIP - Call your local BRP dealership

204060055

Unavailable

10

PROTECTOR 97 - Call your local BRP dealership

204060057

Unavailable

11

PROTECTOR 158 - Call your local BRP dealership

204060056

Unavailable

12

Hood Latch

570027100

$13.49

13

Flat Washer M6, Stainless

234062600

$0.77

14

Pop Rivet 3/16"

293150043

$2.09

15

Silicone Sealant 51388, 300 ml

296000309

$36.99

16

Flat Washer M5, Stainless

234051600

$0.77

17

Pop Rivet 3/16"

293150013

$1.37

18

Silicone Sealant 51388, 300 ml

296000309

$36.99

19

Flat Washer 5 mm, Stainless

234052600

$0.77
