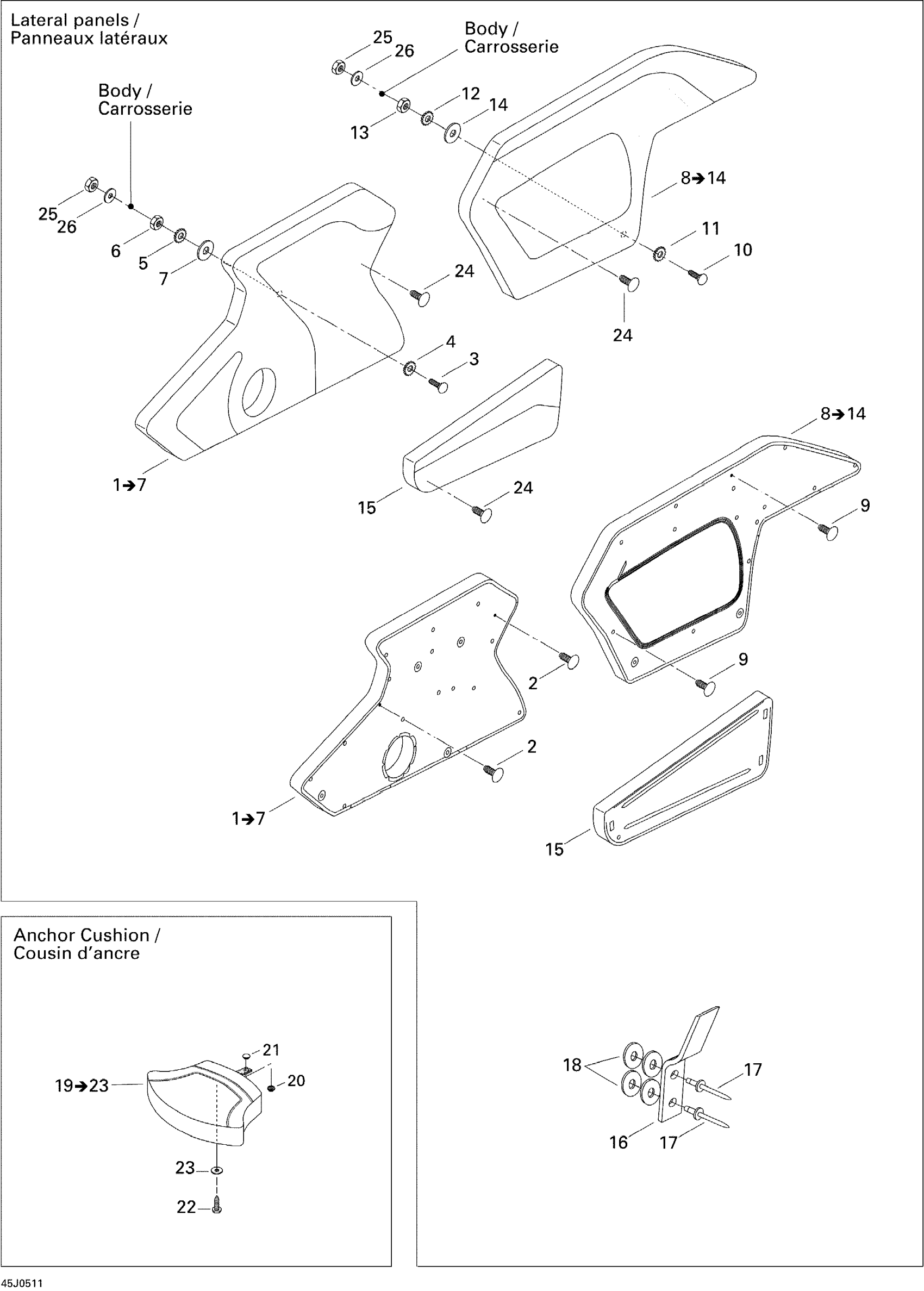

Sea-doo Utopia 205, 2005 09- Lateral Panel And Anchor Cushion Diagram
#
Description
Price
1
Front Lateral Panel Ass'y, Port Side | Includes 1 to 7
204612959
Unavailable
1
Front Lateral Panel Ass'y, Starboard | Includes 1 to 7
204612963
Unavailable
2
Black Dart
293730014
$0.99
3
Elevator Bolt
204000130
Unavailable
4
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
5
External Serrated Lock Washer 6 mm
234461608
$1.15
6
Hex. Jam Nut
204100060
Unavailable
7
Flat Washer M6, Stainless
234062600
$0.77
8
Rear Lateral Panel Ass'y, Port Side | Includes 8 to 14
204612960
Unavailable
8
Rear Lateral Panel Ass'y, Starboard | Includes 8 to 14
204612964
Unavailable
9
Black Dart
293730014
$0.99
10
ELEVATOR BOLT 1/4-20 X 2 - Call your local BRP dealership
204100143
Unavailable
11
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
12
External Serrated Lock Washer 6 mm
234461608
$1.15
13
Hex. Jam Nut
204100060
Unavailable
14
Flat Washer M6, Stainless
234062600
$0.77
15
Lower Panel, Port Side
204612961
Unavailable
15
Lower Panel, Starboard
204612965
Unavailable
16
S-clip
204130048
Unavailable
17
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
18
Flat Washer M5, Stainless
234051600
$0.77
19
Anchor Case Cushion Ass'y | Includes 33 to 37
204612967
Unavailable
20
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
21
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
22
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
23
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
24
Black Dart
293730014
$0.99
25
Plastite Hex. Screw M6.8 X 35
243163560
$4.44
26
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
