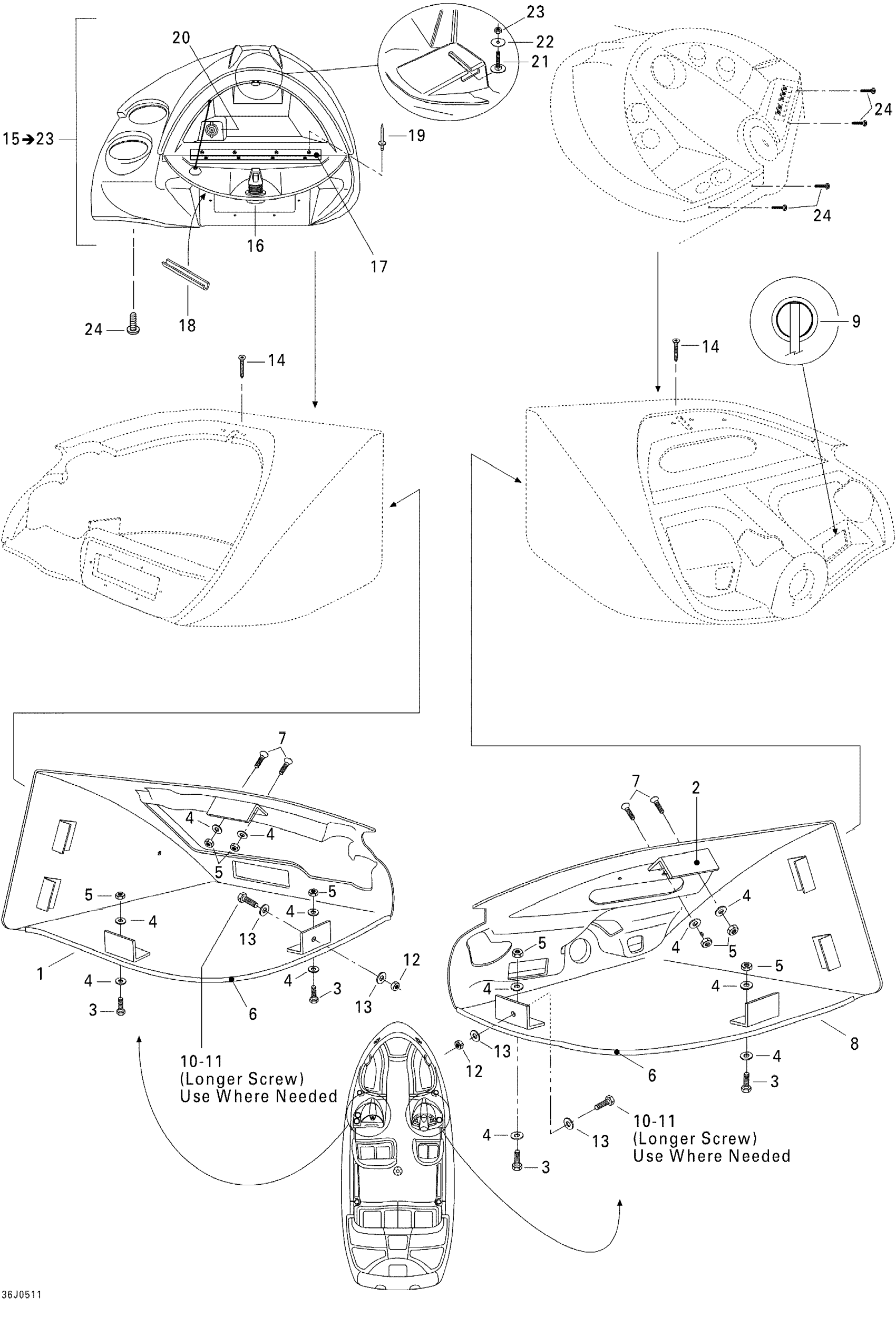

Sea-doo Utopia 205, 2005 09- Front Console And Glove Box Diagram
#
Description
Price
1
Console Ass'y, Port Side
204072115
Unavailable
2
Angle Bracket 90 mm
204071803
Unavailable
3
Hex. Screw M6 X 30
207163060
$1.48
4
FLAT WASHER 6 MM - Call your local BRP dealership
234060600
Unavailable
5
Hex. Elastic Stop Nut M6
232561600
$1.15
6
TRIM, WHITE - Call your local BRP dealership
204071878
Unavailable
7
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership
208563060
Unavailable
8
Console Ass'y, Starboard
204072116
Unavailable
9
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
10
Hex. Screw M6 X 45
207164560
$1.89
11
Hex. Screw M6 X 65
207166560
$2.75
12
Hex. Elastic Stop Nut M6
232561600
$1.15
13
Flat Washer M6, Stainless
234062600
$0.77
14
PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership
204100056
Unavailable
15
GLOVE BOX ASS'Y - Call your local BRP dealership | Includes 21 to 29
204073355
Unavailable
16
DOOR LATCH - Call your local BRP dealership
204071524
Unavailable
17
Hinge
204071525
Unavailable
18
Door Edge
204071526
Unavailable
19
Pop Rivet
204130021
Unavailable
20
DC Outlet
710001248
$37.99
21
Elevator Bolt
204000130
Unavailable
22
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
23
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
24
Phillips Screw #8 X 3/4"
204100153
Unavailable
