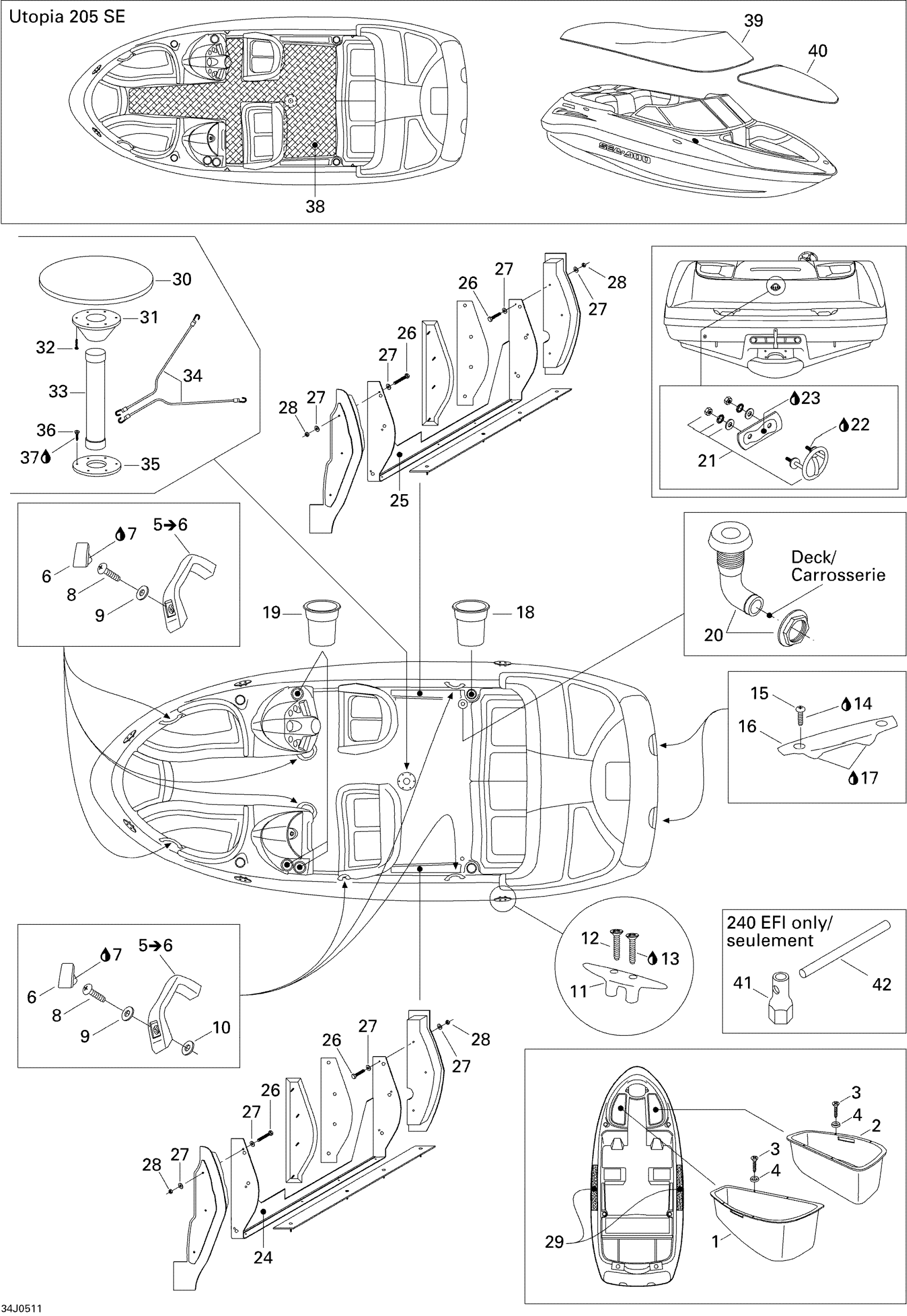

Sea-doo Utopia 205, 2005 09- Body And Accessories Diagram
#
1
Storage Tray, Port Side
204071773
Unavailable
2
Storage Tray, Starboard
204071774
Unavailable
3
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
4
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
5
GRIP HANDLE, WHITE - Call your local BRP dealership | Includes 20a to 20b
204071182
Unavailable
6
Snap Cap
204071195
Unavailable
7
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
8
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership
205963060
Unavailable
9
Stainless Flat Washer M6
234061600
$0.33
10
Flat Washer M6, Stainless
234062600
$0.77
11
CLEAT - Call your local BRP dealership | STD
204070592
Unavailable
12
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD
204100144
Unavailable
13
Loctite 243, 10 ml
293800060
$21.49
14
Loctite 243, 10 ml
293800060
$21.49
15
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
16
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
17
Silicone Sealant 51388, 300 ml
296000309
$36.99
18
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
19
HOLDER CUP, BLACK - Call your local BRP dealership
204072216
Unavailable
20
DRAIN FITTING 90 - Call your local BRP dealership
204071166
Unavailable
21
Ski Tow Hook
204070206
Unavailable
22
Loctite 271, 10 ml
293800005
$26.99
23
Silicone Sealant 51388, 300 ml
296000309
$36.99
24
Storage Latéral Carpet
204071521
Unavailable
25
Storage Latéral Carpet
204071522
Unavailable
26
Hex. Screw M6 X 70
207067060
$5.61
27
Flat Washer M6, Stainless
234062600
$0.77
28
Hex. Elastic Stop Nut M6
232561600
$1.15
29
Deck/Storage Carpet
204071534
Unavailable
30
Cockpit Table
204070632
Unavailable
31
TABLE MOUNT - Call your local BRP dealership | Challenger S
204071315
Unavailable
32
TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S
209951960
Unavailable
33
TABLE POST, LARGE - Call your local BRP dealership | Challenger S
204070634
Unavailable
34
ICE CHEST STRAP - Call your local BRP dealership
204070905
Unavailable
35
TABLE BASE - Call your local BRP dealership
204071209
Unavailable
36
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
37
Silicone Sealant 51388, 300 ml
296000309
$36.99
38
Carpet, Cockpit | Utopia 205 SE
204072201
Unavailable
39
Cover, Cockpit | Utopia 205 SE
204072203
Unavailable
40
Cover, Bow
204072202
Unavailable
41
Socket Wrench
204630050
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
