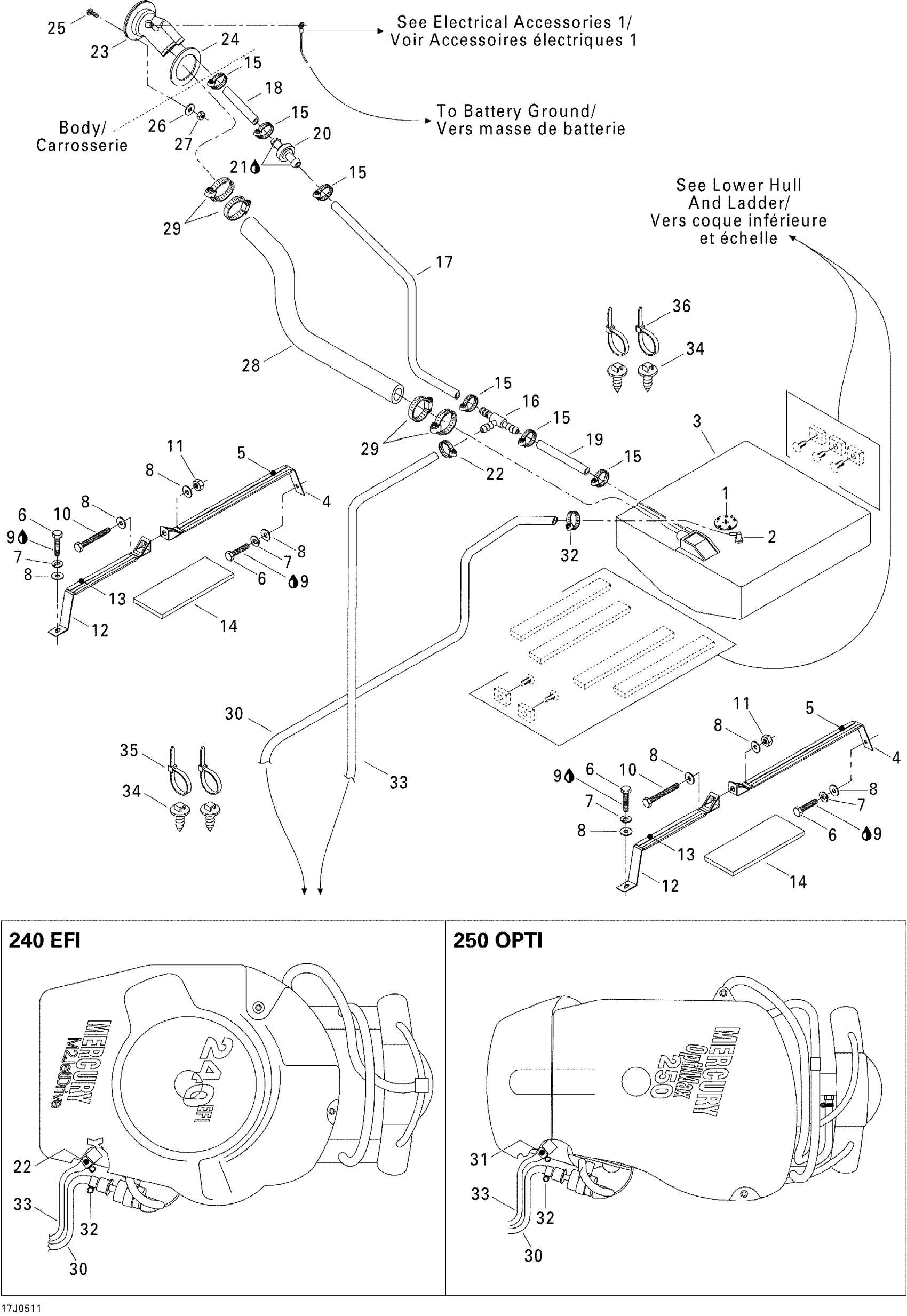

Sea-doo Utopia 205, 2005 02- Fuel System Diagram
#
1
Fule Level Sensor
204560296
Unavailable
2
Pick-up Tube With Ant-siphon Valve
204560297
Unavailable
3
Fuel Tank
204560299
Unavailable
4
FUEL TANK STRAP - Call your local BRP dealership
204560181
Unavailable
5
PROTECTOR PAD - Call your local BRP dealership
204560185
Unavailable
6
Hex. Screw M8 X 30
207183060
$1.58
7
Lock Washer 8 mm, Stainless
234181601
$0.55
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
Loctite 271, 10 ml
293800005
$26.99
10
HEX. SCREW M8 X 80 - Call your local BRP dealership
207188060
Unavailable
11
Hex. Elastic Nut M8
232581600
$1.48
12
Fuel Tank Strap
204560184
Unavailable
13
Protector Pad
204560186
Unavailable
14
NEOPRENE PAD - Call your local BRP dealership
204560191
Unavailable
15
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
16
T-Fitting
204560038
Unavailable
17
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
18
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
19
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
20
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership
204560101
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
22
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
23
FILLER NECK - Call your local BRP dealership
204560182
Unavailable
24
SPACER - Call your local BRP dealership This part replaces 275500801.
204560188
Unavailable
25
Phillips Screw M4 X 35
208643560
Unavailable
26
Flat Washer 4 mm
234040600
$0.55
27
Elastic Stop Nut M4
232541600
$1.15
28
Filler Neck Hose
204560294
Unavailable
29
NORMA CLAMP - Call your local BRP dealership
293650174
Unavailable
30
Hose 5/16”, Meter
204560177
Unavailable
31
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
32
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
32
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
33
HOSE 1/4 - Call your local BRP dealership
204560178
Unavailable
34
Mount Dart
293730040
$1.04
35
Tie-Rap 180 mm
414115200
$0.11
36
Tie Wrap 368 mm
293750008
$1.04
