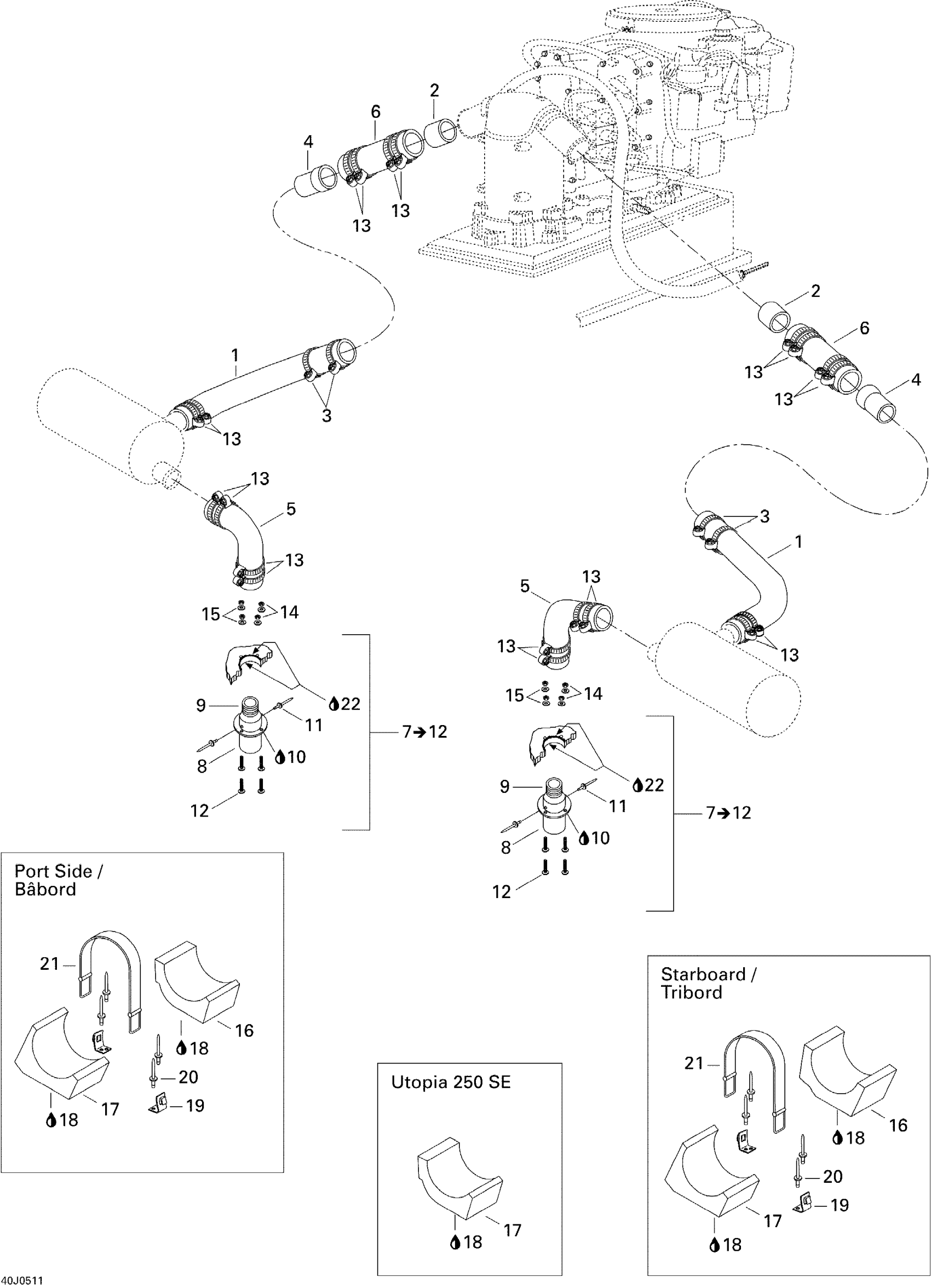

Sea-doo Utopia 205, 2005 Exhaust System Diagram

#

Description
Price

1

Exhaust Hose

204340408

Unavailable

2

Exhaust Spacer

204340403

$30.49

3

Tridon Clamp

293650064

$8.29

4

Exhaust Adaptor

204340402

$59.49

5

Exhaust Hose

204340368

Unavailable

5

Exhaust Hose

204340299

Unavailable

6

Exhaust Hose, Meter

204340256

Unavailable

7

Exhaust Outlet Ass’Y | Includes 7 to 10

204340322

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Exhaust Outlet

204340229

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Pop Rivet 3/16"

293150043

$2.09

12

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

Unavailable

13

Tridon Clamp

293650112

$12.99

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Stainless Flat Washer M6

234061600

$0.33

16

Outer Muffler Support, Port Side

204340369

Unavailable

16

Outer Muffler Support, Starboard

204340371

Unavailable

17

Muffler Inner Support, Port Side

204340370

Unavailable

17

Inner Muffler Support

204340383

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Strap Clip 90°

204060017

Unavailable

20

Pop Rivet 3/16"

293150088

$0.99

21

STRAP - Call your local BRP dealership

293850022

Unavailable

22

Silicone Sealant 51388, 300 ml

296000309

$36.99
