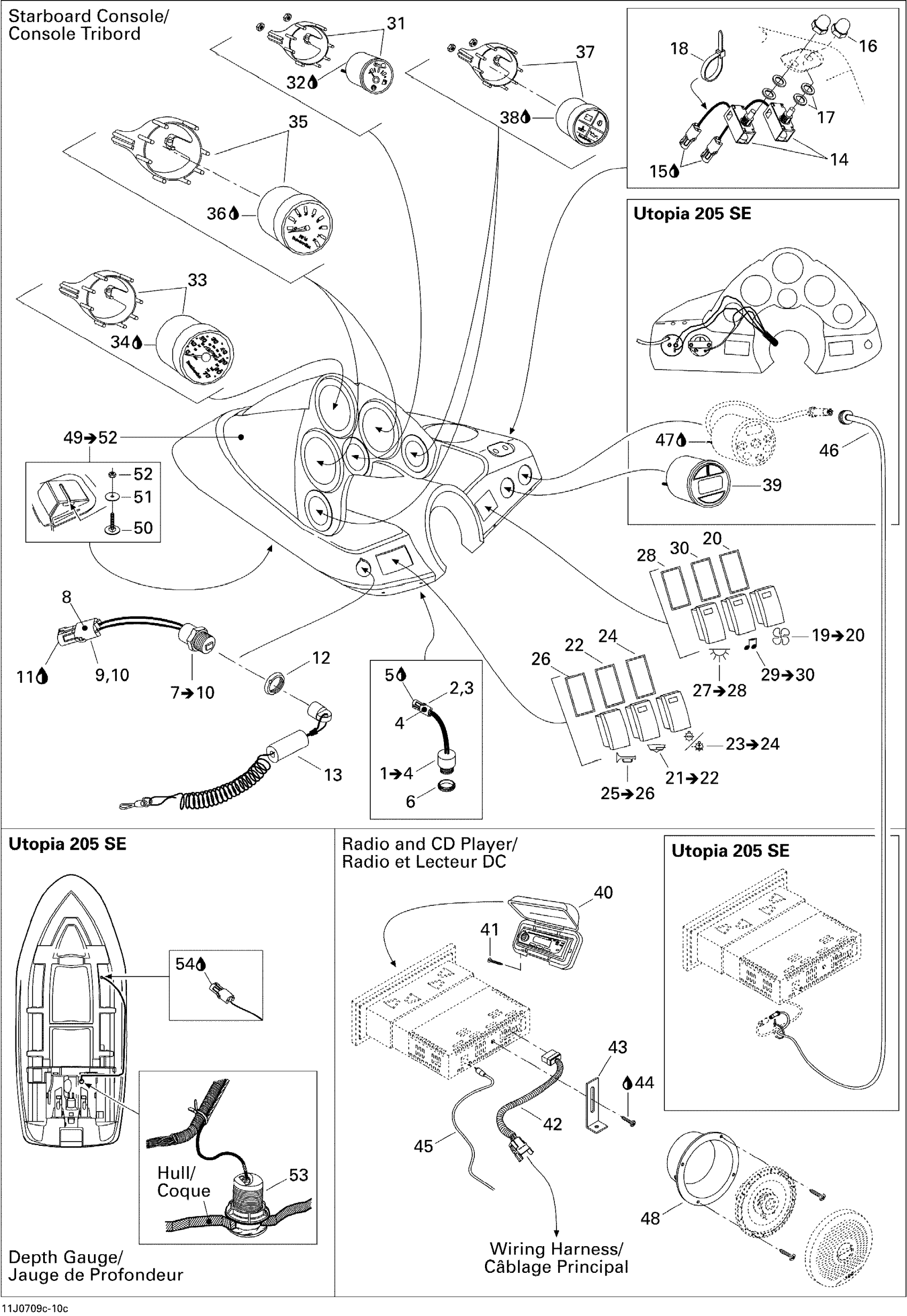

Sea-doo Utopia 205 155NA, 2007 10- Electrical Accessories 3 Diagram
#
1
Buzzer Ass'y
204470913
$92.99
2
Male Terminal | XT Models
278000222
$3.19
3
Wire Seal
278000218
$4.39
4
Female Housing, 2 Circuits
278000217
$9.59
5
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
6
Buzzer Nut
278000707
Unavailable
7
Safety Switch This part replaces 278002325.
278002773
$114.99
8
Male Housing, 3 Circuits
278000273
$9.59
9
Wire Seal
278000218
$4.39
10
Female Terminal
278000223
$3.19
11
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
12
Safety Nut (DESS Switch)
278002963
$3.28
13
Safety Lanyard
204471206
$56.99
14
IGNITION SWITCH - Call your local BRP dealership
278000621
Unavailable
15
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
16
IGNITION SWITCH CAP, RED - Call your local BRP dealership
278000565
Unavailable
17
FLAT WASHER - Call your local BRP dealership
204100027
Unavailable
18
Tie Wrap 142 mm
293750002
$1.25
19
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
20
Gasket
204470132
Unavailable
21
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
22
Gasket
204470132
Unavailable
23
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
24
Gasket
204470132
Unavailable
25
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
26
Gasket
204470132
Unavailable
27
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
28
Gasket
204470132
Unavailable
29
STEREO SWITCH - Call your local BRP dealership | Includes 28 to 29
204471116
Unavailable
30
Gasket
204470132
Unavailable
31
FUEL GAUGE - Call your local BRP dealership
204471129
Unavailable
32
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
33
Speedometer
204470943
Unavailable
34
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
35
Tachometer Gauge
204471019
Unavailable
36
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
37
ENGINE WARNING GAUGE - Call your local BRP dealership
204471130
Unavailable
38
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
39
Not Available As Spare Parts
XXX
Unavailable
40
RADIO CD PLAYER COVER - Call your local BRP dealership
204470894
Unavailable
41
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
42
Stereo Adaptor Harness
204470930
Unavailable
43
90 RADIO SUPPORT - Call your local BRP dealership
204470926
Unavailable
44
Loctite 243, 10 ml
293800060
$21.49
45
Antenna
204470931
Unavailable
46
Not Available As Spare Parts
XXX
Unavailable
47
Not Available As Spare Parts
XXX
Unavailable
48
SPEAKER COVER ASS'Y - Call your local BRP dealership
204470982
Unavailable
49
Dash Panel Ass'y | Includes 49 to 52
204471009
Unavailable
50
Elevator Bolt
204000130
Unavailable
51
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
52
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
53
Not Available As Spare Parts
XXX
Unavailable
54
Not Available As Spare Parts
XXX
Unavailable
