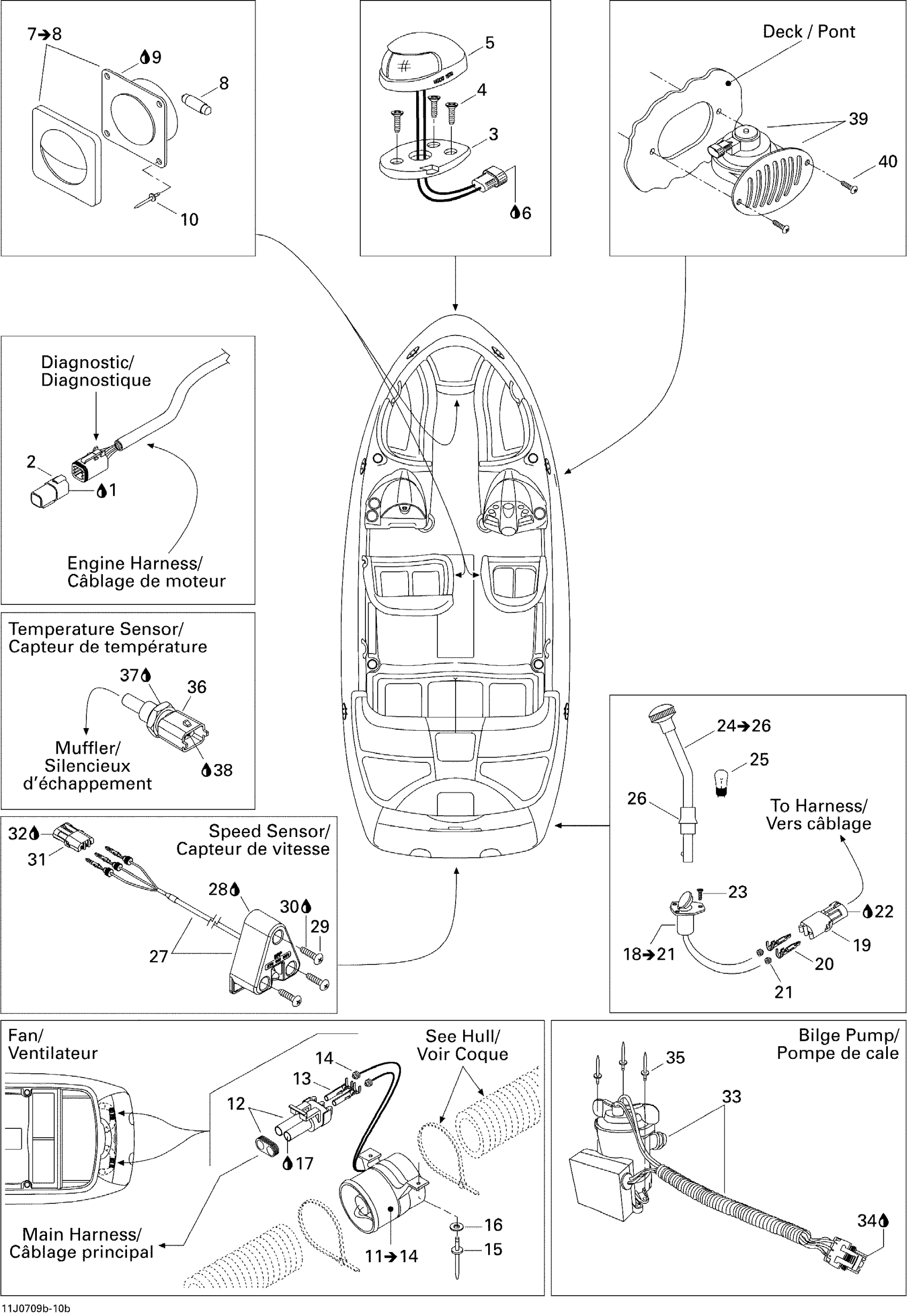

Sea-doo Utopia 205 155NA, 2007 10- Electrical Accessories 2 Diagram
#
Description
Price
1
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
2
Diagnostic Connector
278002704
$19.49
3
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
4
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
5
Front Lamp
204470372
Unavailable
6
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
7
Courtesy Light Ass'y | Includes 12 to 13
204471159
Unavailable
8
BULB - Call your local BRP dealership
204470081
Unavailable
9
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
10
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
11
Fan Ass'y | Includes 44 to 47
204470108
$144.99
12
Male Connector, 2 Circuits
278000220
$15.49
13
Female Terminal
278000223
$3.19
14
Wire Seal
278000218
$4.39
15
Pop Rivet 3/16"
293150008
$0.50
16
Flat Washer 5 mm, Stainless
234052600
$0.77
17
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
18
REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.
204470642
Unavailable
19
Female Housing, 2 Circuits
278000217
$9.59
20
Male Terminal | XT Models
278000222
$3.19
21
Wire Seal
278000218
$4.39
22
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
23
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
24
REAR LAMP POLE - Call your local BRP dealership | Includes 26 to 28
204470625
Unavailable
25
Bulb
204470053
Unavailable
26
COLLAR - Call your local BRP dealership
204470350
Unavailable
27
Speed Sensor
278001993
$169.99
28
Silicone Sealant 51388, 300 ml
296000309
$36.99
29
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
30
Silicone Sealant 51388, 300 ml
296000309
$36.99
31
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
32
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
33
Bilge Pump With Screen
204471176
Unavailable
34
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
35
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
36
Temperature Sensor
278002895
$39.99
37
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
38
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
39
Horn, Stainless
204471160
Unavailable
40
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
