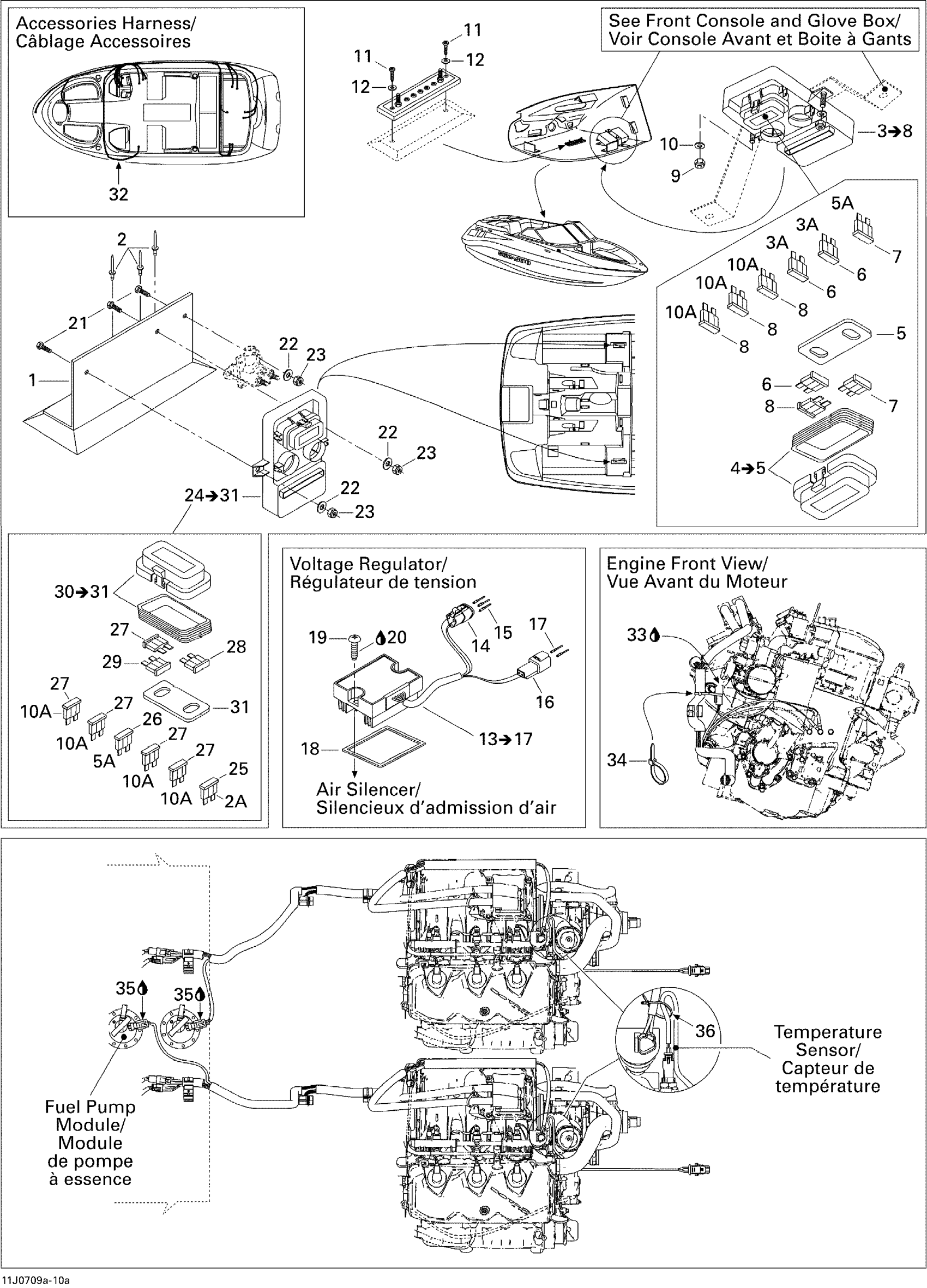

Sea-doo Utopia 205 155NA, 2007 10- Electrical Accessories 1 Diagram
#
Description
Price
1
BRACKET - Call your local BRP dealership
204471071
Unavailable
2
Avdel Rivet 3/16"
293150037
$0.56
3
TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America
204471262
Unavailable
4
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
5
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
6
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
7
Fuse, 5 Amperes | CE
278000344
$3.28
8
Fuse, 10 Amperes | North America
278001197
$2.21
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
Flat Washer M6, Stainless
234062600
$0.77
11
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
$1.15
13
REGULATOR - Call your local BRP dealership | Includes 11 to 15
278001969
$174.99
14
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
15
Female Terminal
278000632
$2.09
16
Male Housing, 2 Circuits
409206900
$9.59
17
Female Terminal
515175567
$7.69
18
SEAL - Call your local BRP dealership
293250123
Unavailable
19
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
20
Loctite 271, 10 ml
293800005
$26.99
21
Hex. Forming Screw M6 X 20
207162060
$1.29
22
Flat Washer M6, Stainless
234062600
$0.77
23
Hex. Elastic Stop Nut M6
232561600
$1.15
24
FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24
204470770
Unavailable
25
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
26
Fuse, 5 Amperes | CE
278000344
$3.28
27
Fuse, 10 Amperes | North America
278001197
$2.21
28
Fuse, 20 Amperes
409003900
$3.28
29
Fuse, 30 Amperes
410917200
$3.28
30
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
31
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
32
Accessory Harness
204471119
Unavailable
33
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
34
Tie-Rap 180 mm
414115200
$0.11
35
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
36
Tie Wrap 142 mm
293750002
$1.25
