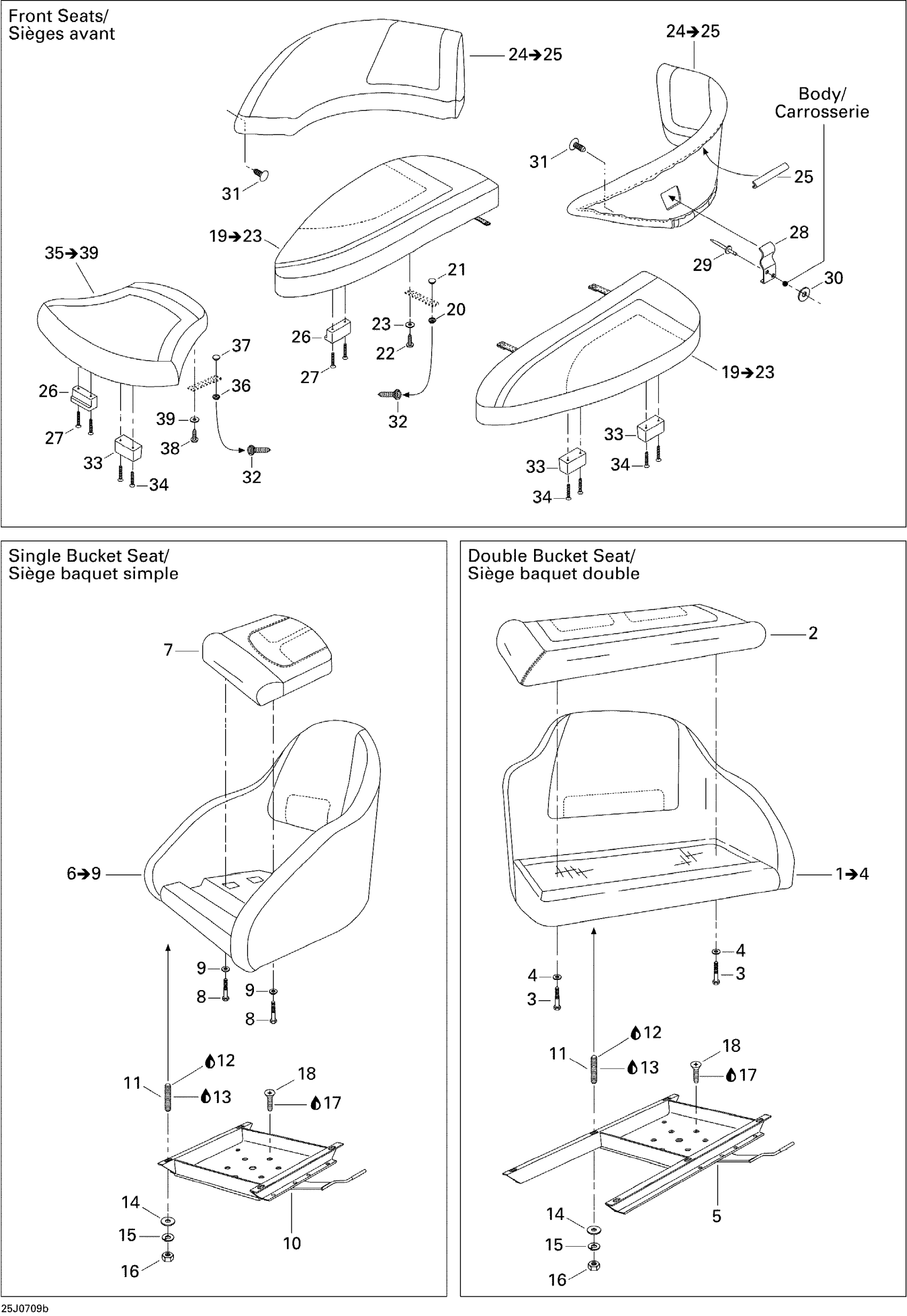

Sea-doo Utopia 205 155NA, 2007 09- Seat 2 Diagram
#
1
Double Bucket Seat Ass'y, Port Side | Includes 21 to 24
204612828
Unavailable
2
Bucket Seat Cushion, Port Side
204612850
Unavailable
3
Pan Head Phillips Screw 1/4-20
204100125
Unavailable
4
Flat Washer 8 mm, Stainless
234082600
$2.43
5
Bucket Seat Swivel Base, Port Side
204611749
Unavailable
6
Simple Bucket Seat Ass'y | Includes 10 to 13
204612829
Unavailable
7
Bucket Seat Cushion
204612854
Unavailable
8
Pan Head Phillips Screw 1/4-20
204100125
Unavailable
9
Flat Washer 8 mm, Stainless
234082600
$2.43
10
Single Seat Swivel Base
204611789
Unavailable
11
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership
204100077
Unavailable
12
Loctite 271, 10 ml
293800005
$26.99
13
Was 293800041 Loctite Primer 7649
219704458
$39.99
14
Flat Washer M6, Stainless
234062600
$0.77
15
Lock Washer Helical M6
234161601
$1.15
16
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
17
Loctite 243, 10 ml
293800060
$21.49
18
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208463560
Unavailable
19
Seat Cushion Ass'y, Port Side | Includes 28 to 32
204612832
Unavailable
19
Seat Cushion Ass'y, Starboard | Includes 28 to 32
204612833
Unavailable
20
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
21
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
22
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
23
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
24
Backrest Ass'y, Port Side | Includes 38 to 39
204612834
Unavailable
24
Backrest Ass'y, Starboard | Includes 38 to 39
204612835
Unavailable
25
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
26
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
27
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
28
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
29
Pop Rivet 3/16"
293150043
$2.09
30
Stainless Flat Washer M6
234061600
$0.33
31
Black Dart
293730014
$0.99
32
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
33
LATCH - Call your local BRP dealership
204611805
Unavailable
34
SCREW #8 X 1-1/4? - Call your local BRP dealership
204100081
Unavailable
35
Anchor Case Cushion Ass'y | Includes 33 to 37
204612967
Unavailable
36
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
37
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
38
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
39
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
