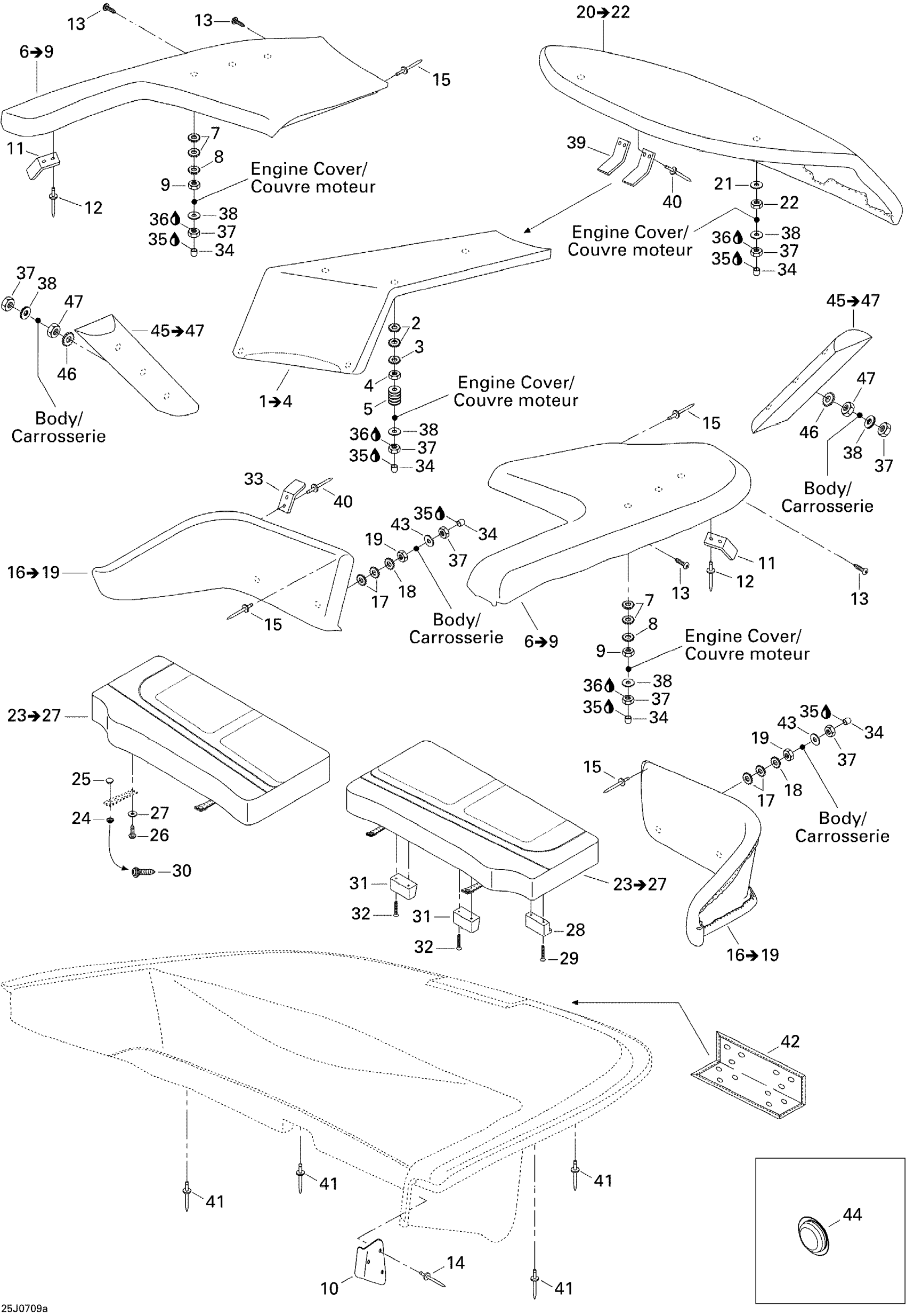

Sea-doo Utopia 205 155NA, 2007 09- Seat 1 Diagram
#
1
Center Sundeck Cushion | Includes 25 to 28
204612822
Unavailable
2
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
3
External Serrated Lock Washer 6 mm
234461608
$1.15
4
Hex. Jam Nut
204100060
Unavailable
5
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
6
Sundeck Cushion, Port Side | Includes 19 to 22
204612823
Unavailable
6
Sundeck Cushion, Starboard | Includes 19 to 22
204612824
Unavailable
7
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
8
External Serrated Lock Washer 6 mm
234461608
$1.15
9
Hex. Jam Nut
204100060
Unavailable
10
Upholstery Cap, Port Side
204613739
Unavailable
10
Upholstery Cap, Starboard
204613740
Unavailable
11
Slotted Keyhold Clip
204130029
Unavailable
12
Pop RIvet 1/8 X ,375
293150285
$0.33
13
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
14
Avdel Rivet 3/16"
293150037
$0.56
15
Pop Rivet 3/16"
293150013
$1.37
16
Sundeck Backrest, Port Side | Includes 6 to 9
204612825
Unavailable
16
Sundeck Backrest, Starboard | Includes 6 to 9
204612826
Unavailable
17
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
18
External Serrated Lock Washer 6 mm
234461608
$1.15
19
Hex. Jam Nut
204100060
Unavailable
20
Rear Sundeck Cushion | Includes 36 to 38
204612827
Unavailable
21
External Serrated Lock Washer 6 mm
234461608
$1.15
22
Hex. Jam Nut
204100060
Unavailable
23
REAR CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 1 to 5
204612830
Unavailable
23
REAR CUSHION ASS'Y, STARBOARD - Call your local BRP dealership | Includes 1 to 5
204612831
Unavailable
24
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
25
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
26
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
27
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
28
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
29
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
30
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
31
LATCH - Call your local BRP dealership
204611805
Unavailable
32
SCREW #8 X 1-1/4? - Call your local BRP dealership
204100081
Unavailable
33
RETAINING CLIP - Call your local BRP dealership
204611531
Unavailable
34
Plastic Cap, White
204130008
Unavailable
35
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
36
Loctite 243, 10 ml
293800060
$21.49
37
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
38
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
39
SUNDECK PLATE - Call your local BRP dealership
204611597
Unavailable
40
Pop Rivet 3/16"
293150008
$0.50
41
Pop Rivet 3/16"
293150008
$0.50
42
Hinge Cover
204612869
Unavailable
43
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
44
Black Plug
291000279
$7.69
45
Soundpad Ass'y, Port Side | Includes 44 to 46
204613456
Unavailable
45
Soundpad Ass'y, Starboard | Includes 44 to 46
204613457
Unavailable
46
External Serrated Lock Washer 6 mm
234461608
$1.15
47
Hex. Jam Nut
204100060
Unavailable
