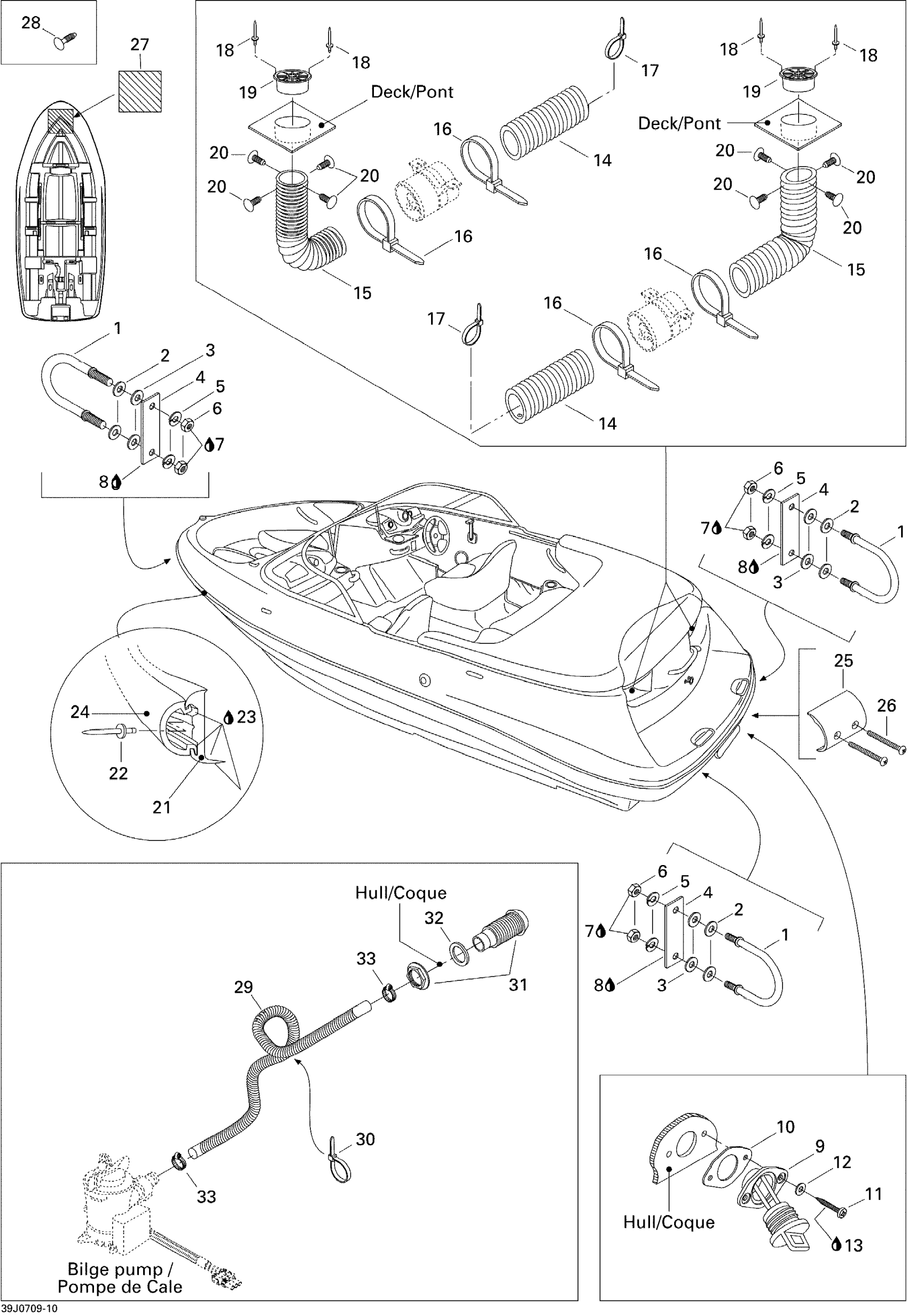

Sea-doo Utopia 205 155NA, 2007 09- Hull Diagram
#
Description
Price
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
$3.07
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
$0.55
6
Hex. Nut M8
232081600
$1.47
7
Loctite 271, 10 ml
293800005
$26.99
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
Drain Plug
292000187
$14.49
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
$1.15
13
Silicone Sealant 51388, 300 ml
296000309
$36.99
14
Was 204050122 Vent Hose 4"
219704358
$25.99
15
Was 204050122 Vent Hose 4"
219704358
$25.99
16
Tie Wrap 368 mm
293750008
$1.04
17
Tie-Rap 180 mm
414115200
$0.11
18
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
19
Vent Grille 4 - Call your local BRP dealership
204050637
Unavailable
20
Black, Dart
293730006
$0.99
21
Bumper, Charcoal Gray
204050606
Unavailable
22
Pop Rivet 3/16"
293150013
$1.37
23
Silicone Sealant 51388, 300 ml
296000309
$36.99
24
Charcoal Gray, Bumper Trim - Call your local BRP dealership
204050607
Unavailable
25
Bumper Cover, Charcoal Gray
204050630
Unavailable
26
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Black Dart
293730014
$0.99
29
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
30
Tie-Rap 180 mm
414115200
$0.11
31
Fitting
293710162
$13.49
32
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
33
Tridon Clamp
293650016
$10.99
