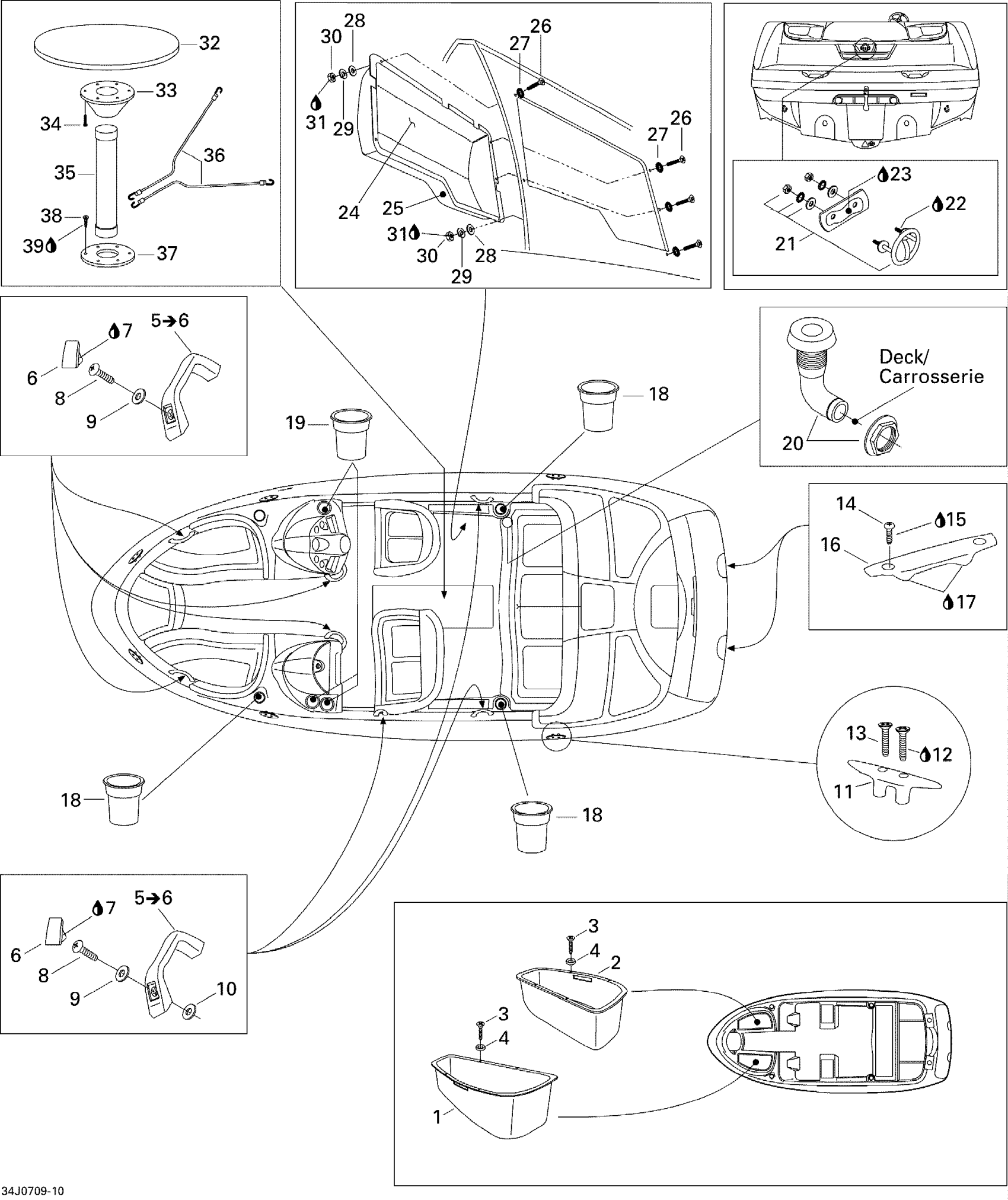

Sea-doo Utopia 205 155NA, 2007 09- Body And Accessories Diagram
#
1
Storage Tray, Port Side, Beige
204072625
Unavailable
2
Storage Tray, Starboard, Beige
204072626
Unavailable
3
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
4
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
5
Handle Grip
204071710
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
8
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership
205963060
Unavailable
9
Stainless Flat Washer M6
234061600
$0.33
10
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
11
CLEAT - Call your local BRP dealership | STD
204070592
Unavailable
12
Loctite 243, 10 ml
293800060
$21.49
13
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD
204100144
Unavailable
14
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
15
Loctite 243, 10 ml
293800060
$21.49
16
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
17
Silicone Sealant 51388, 300 ml
296000309
$36.99
18
Holder Cup
204072721
Unavailable
19
HOLDER CUP, BLACK - Call your local BRP dealership
204072216
Unavailable
20
Drain Fitting 90°, Black
204072742
Unavailable
21
Ski Tow Hook
204070206
Unavailable
22
Loctite 271, 10 ml
293800005
$26.99
23
Silicone Sealant 51388, 300 ml
296000309
$36.99
24
Lateral Storage Carpet, Port Side
204072701
Unavailable
24
Lateral Storage Carpet, Starboard
204072697
Unavailable
25
Side Storage, Port Side
204072348
Unavailable
25
Side Storage, Starboard
204072363
Unavailable
26
Elevator Bolt
204000130
Unavailable
27
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
28
Flat Washer M6, Stainless
234062600
$0.77
29
Lock Washer 1/4”
211200025
$1.29
30
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
31
Loctite 243, 10 ml
293800060
$21.49
32
Cockpit Table
204072768
Unavailable
33
TABLE MOUNT - Call your local BRP dealership | Challenger S
204071315
Unavailable
34
TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S
209951960
Unavailable
35
TABLE POST, LARGE - Call your local BRP dealership | Challenger S
204070634
Unavailable
36
ICE CHEST STRAP - Call your local BRP dealership
204070905
Unavailable
37
TABLE BASE - Call your local BRP dealership
204071209
Unavailable
38
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
39
Silicone Sealant 51388, 300 ml
296000309
$36.99
