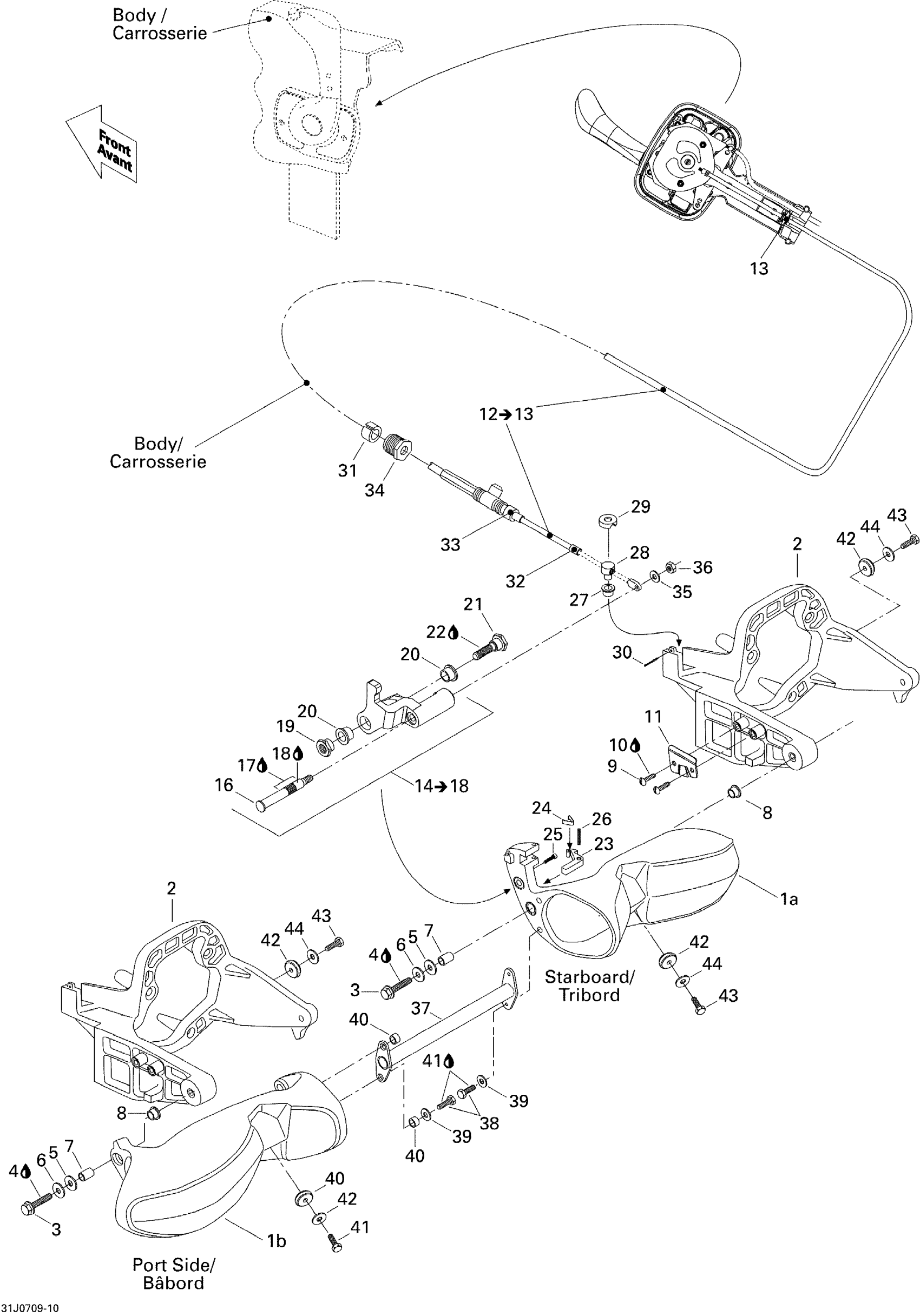

Sea-doo Utopia 205 155NA, 2007 05- Reverse Diagram
#
1a
Reverse Gate, Starboard
268000107
$359.99
1b
NEEDS DESCRIPTION This part replaces 204170217.
423465080
$369.99
2
Reverse Gate Support
204170214
$189.99
3
Hex. Flange Screw 18 X 1.56
204100163
$9.09
4
Loctite 243, 10 ml
293800060
$21.49
5
WASHER, NYLON - Call your local BRP dealership
204100128
Unavailable
6
Flat Washer 8 mm, Stainless
234082600
$2.43
7
Sleeve
204170177
$33.99
8
Bushing
204130237
$12.11
9
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership
204100122
Unavailable
10
Loctite 243, 10 ml
293800060
$21.49
11
STOP PAWL - Call your local BRP dealership
271000485
Unavailable
12
Reverse Cable
268000110
$148.49
13
End Piece
277001583
$14.49
14
NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.
0460979
$224.99
16
PIN - Call your local BRP dealership
204130037
Unavailable
17
Was 293800041 Loctite Primer 7649
219704458
$39.99
18
Sealant Loctite 648
219703000
$45.99
19
SHOULDER NUT - Call your local BRP dealership
204100123
Unavailable
20
BUSHING - Call your local BRP dealership
204130036
Unavailable
21
SHOULDER SCREW - Call your local BRP dealership
204100124
Unavailable
22
Loctite 271, 10 ml
293800005
$26.99
23
HOOK - Call your local BRP dealership
204170220
Unavailable
24
Spring
271000431
$15.49
25
Socket Head Screw
204100127
$3.70
26
Pin
211400009
$1.68
27
Bushing
204130237
$12.11
28
THREADED END PIECE - Call your local BRP dealership
204130038
Unavailable
29
Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.
296000396
Unavailable
30
Cotter Pin
204130040
$2.85
31
RUBBER GROMMET - Call your local BRP dealership
204130041
Unavailable
32
Wiper Rod
277001582
$11.11
33
End Piece
277001583
$14.49
34
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
35
Flat Washer 5 mm, Stainless
234052600
$0.77
36
NEEDS DESCRIPTION This part replaces 204100034.
0460000
$0.60
37
Reverse Rod
204170231
Unavailable
38
SCREW HEX. M4 X 20 - Call your local BRP dealership
207142060
Unavailable
39
Flat Washer 4 mm, Stainless
234042600
$1.15
40
SPACER BUSHING - Call your local BRP dealership
204170026
Unavailable
41
Loctite 243, 10 ml
293800060
$21.49
42
Anode Zinc
271001813
$18.99
43
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
44
Stainless Flat Washer M6
234061600
$0.33
