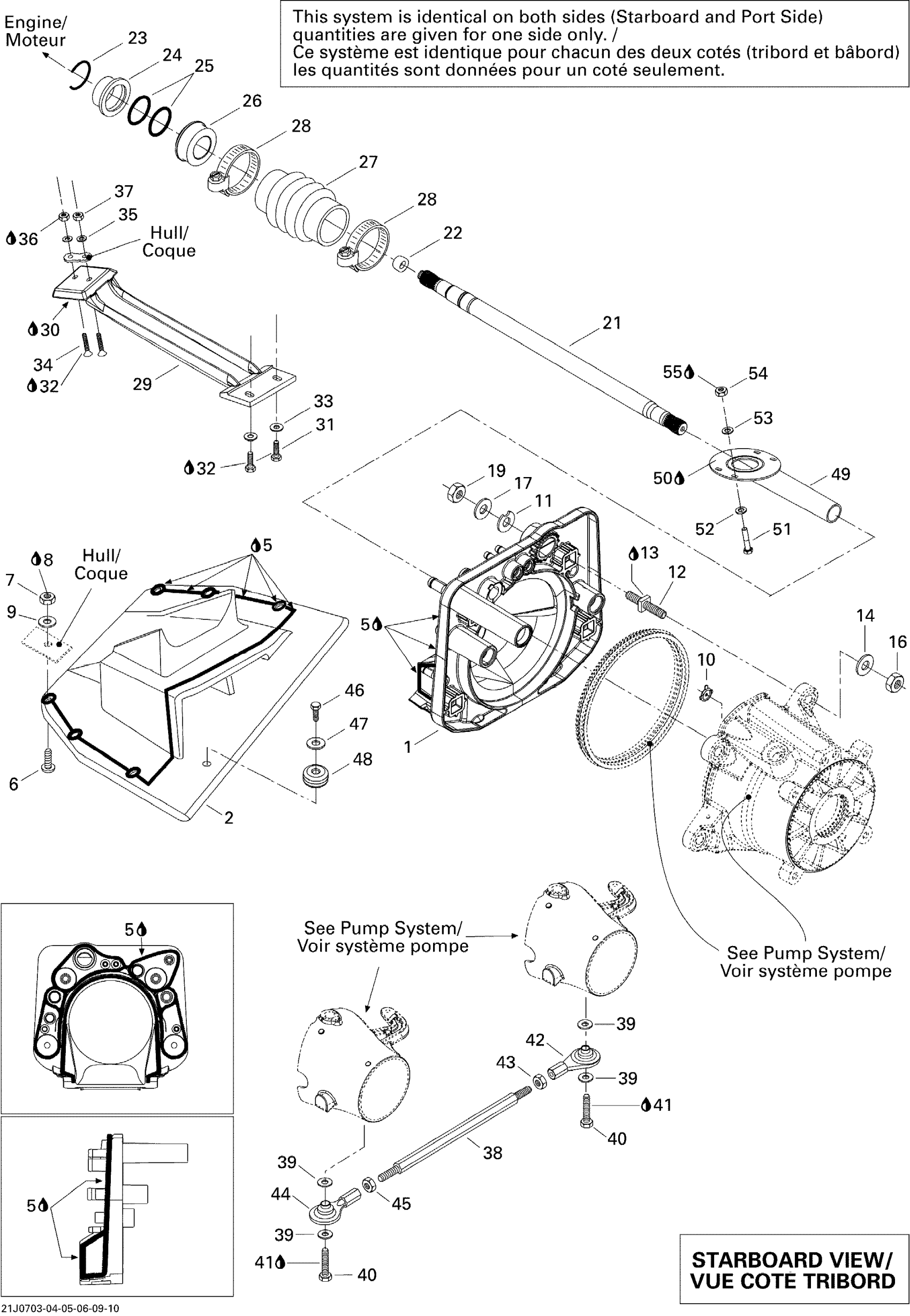

Sea-doo Utopia 205 155NA, 2007 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120313

Unavailable

2

Ride Plate, Starboard

204120324

Unavailable

2

Ride Plate, Port Side

204120323

Unavailable

5

Instant Gasket

219701421

$51.99

6

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

Flat Washer M6, Stainless

234062600

$0.77

10

Reducer This part replaces 291001887.

291004649

$17.49

11

Shim 0.3 mm

272000053

$11.49

11

NEEDS DESCRIPTION This part replaces 204120067.

0460011

$10.49

12

Square Stud

250300022

$20.99

13

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

14

Flat Washer

211200051

$1.68

16

Elastic Stop Nut M10, Brass

232501200

$2.64

17

Flat Washer 10 mm, Stainless

234002600

$2.22

19

Elastic Stop Nut M10, Brass

232501200

$2.64

21

Drive Shaft This part replaces 271001534.

271001724

$328.49

22

Drive Shaft Plug

272000173

$8.68

23

C-Clip

271001575

$6.11

24

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

25

O-Ring

293300044

$1.05

26

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

27

Bellows

272000183

$28.99

28

Norma Clamp

293650077

$7.41

29

FIXED GRATE PORT SIDE - Call your local BRP dealership

204120325

Unavailable

30

Instant Gasket

219701421

$51.99

29

Fixed Grate, Starboard

204120326

Unavailable

31

Hex. Screw M6 X 16

207161660

$1.59

32

Loctite 271, 10 ml

293800005

$26.99

33

Stainless Flat Washer M6

234061600

$0.33

34

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

35

Flat Washer M6, Stainless

234062600

$0.77

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Hex. Elastic Stop Nut M6

232561600

$1.15

38

LINK ROD - Call your local BRP dealership

204120255

Unavailable

39

Stainless Flat Washer M6

234061600

$0.33

40

Hex. Screw M6 X 25

207162560

$1.47

41

Loctite 243, 10 ml

293800060

$21.49

42

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

43

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

44

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

45

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

46

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

47

Stainless Flat Washer M6

234061600

$0.33

48

Anode Zinc

271001813

$18.99

49

SHAFT GUARD - Call your local BRP dealership

204120328

Unavailable

50

Instant Gasket

219701421

$51.99

51

Phillips Screw M5 X 35

208653560

$2.22

52

Flat Washer M5, Stainless

234051600

$0.77

53

Flat Washer 5 mm, Stainless

234052600

$0.77

54

Hex. Elastic Nut M5 | X

232551600

$1.15

55

Silicone Sealant 51388, 300 ml

296000309

$36.99
