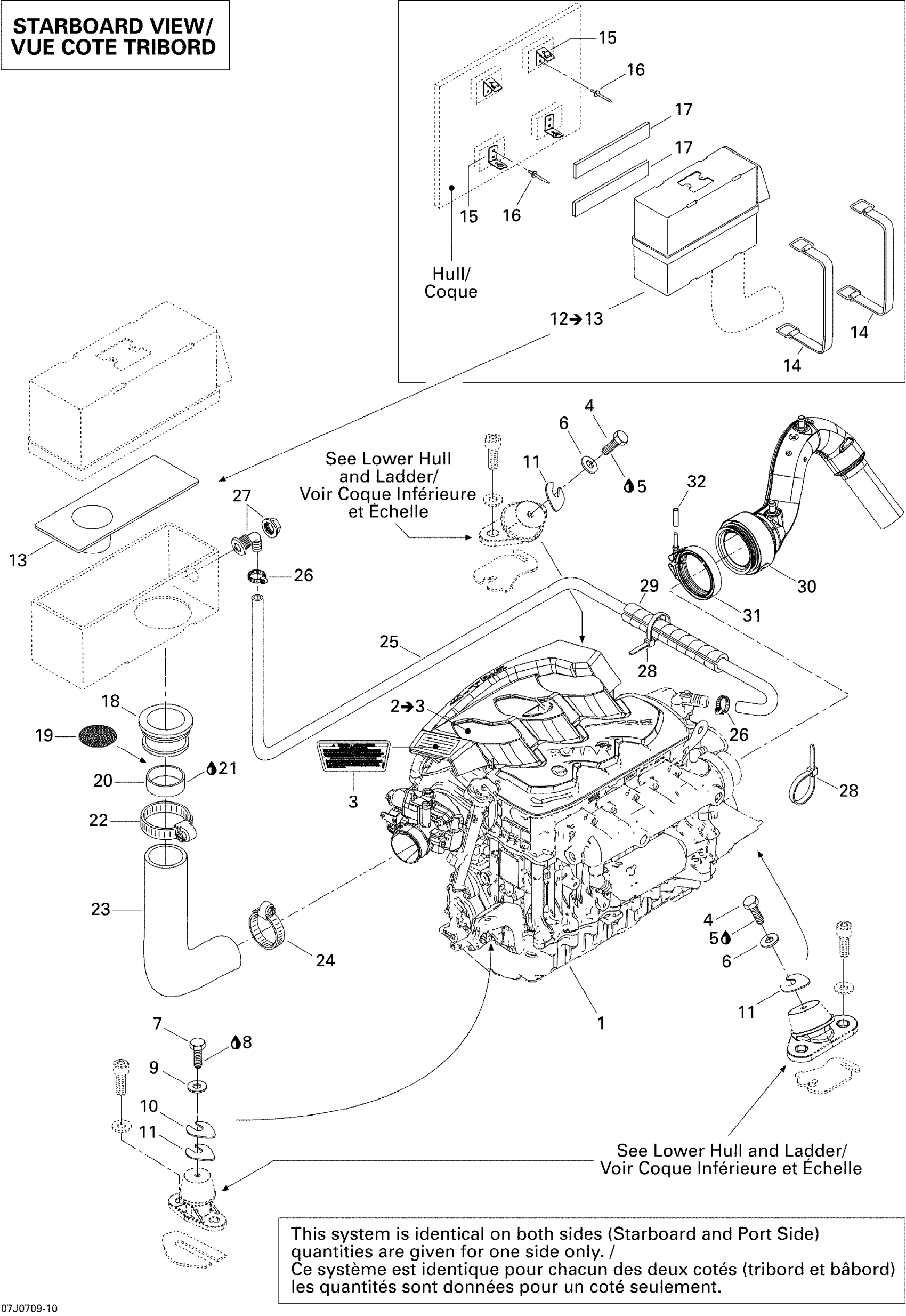

Sea-doo Utopia 205 155NA, 2007 Engine And Air Intake Silencer Diagram
#
Description
Price
1
Rotax Engine 4 Strokes, 1503 NA
204250391
Unavailable
2
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
3
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership
219902674
Unavailable
4
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
7
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
10
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
11
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
12
Air Silencer Ass'y | Includes 13 to 14
204250333
Unavailable
13
Air Silencer Divider
204250324
Unavailable
15
Strap Clip 90°
204060017
Unavailable
17
NEOPRENE, METER - Call your local BRP dealership
202000024
Unavailable
18
INTAKE ADAPTATOR - Call your local BRP dealership
508000254
Unavailable
20
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
21
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
23
INTAKE HOSE, STARBOARD - Call your local BRP dealership
204250351
Unavailable
23
Intake Hose, Port Side
204250350
Unavailable
25
HOSE 3/4 - Call your local BRP dealership
204250353
Unavailable
27
Fitting 90°
204250335
Unavailable
29
Slit Conduit, Meter
204550045
Unavailable
30
EXHAUST PIPE - Call your local BRP dealership
274001030
Unavailable
