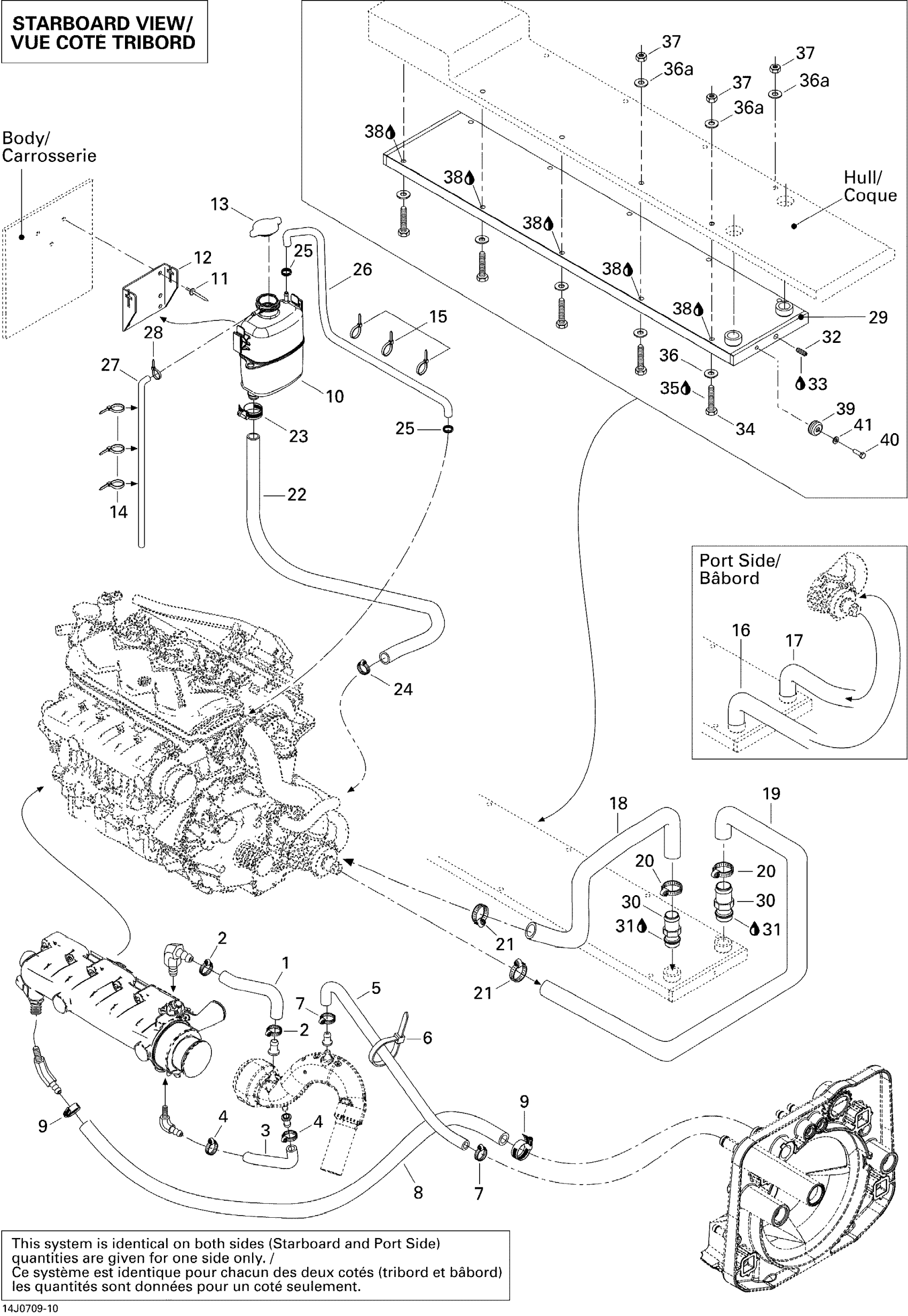

Sea-doo Utopia 205 155NA, 2007 01- Cooling System Diagram
#
1
Formed Hose
276000155
Unavailable
2
Tridon Gear Clamp
293650172
$3.09
3
FORMED HOSE - Call your local BRP dealership
276000156
Unavailable
4
Tridon Gear Clamp
293650172
$3.09
5
Was 276000001 Hose 12.5 mm
219704394
$51.99
6
Tie Wrap 368 mm
293750008
$1.04
7
Tridon Gear Clamp
293650172
$3.09
8
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
9
Tridon Gear Clamp
293650051
$4.19
10
Coolant Tank
276000086
$109.99
11
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
12
Coolant Tank Bracket
204300165
Unavailable
13
Pressure Cap | Includes 720 to 720a
276000100
$25.99
14
Tie Wrap 142 mm
293750002
$1.25
15
Tie Wrap 142 mm
293750002
$1.25
16
HOSE 25.4 MM, METER - Call your local BRP dealership
204300199
Unavailable
17
Ride Plate Hose This part replaces 204300172.
423465058
$43.99
18
Formed Hose | Starboard
204300173
Unavailable
19
Starboard Formed Hose - Call your local BRP dealership
204300174
Unavailable
20
Tridon Gear Clamp
293650045
$5.69
21
Tridon Gear Clamp
293650045
$5.69
22
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
23
Tridon Gear Clamp
293650051
$4.19
24
Tridon Gear Clamp
293650019
$5.82
25
Oetiker Gear Clamp
293650025
$3.09
26
HOSE 1/4 - Call your local BRP dealership
204300184
Unavailable
27
Polyurethane Hose 10000Mm Long
219704410
$56.99
28
Tie Wrap 94 mm | 4X4
293750001
$1.03
29
Heat Exchanger
204300183
Unavailable
30
Hose Fitting - Call your local BRP dealership
204300133
Unavailable
31
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
32
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
33
Was 293800013 Loctite 56765
219704454
$65.99
34
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
205405060
Unavailable
35
Loctite 243, 10 ml
293800060
$21.49
36
Flat Washer 10 mm, Stainless
234000600
$1.46
36a
Flat Washer 10 mm, Stainless
234002600
$2.22
37
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
38
Instant Gasket
219701421
$51.99
39
Anode Zinc
271001813
$18.99
40
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
41
Stainless Flat Washer M6
234061600
$0.33
