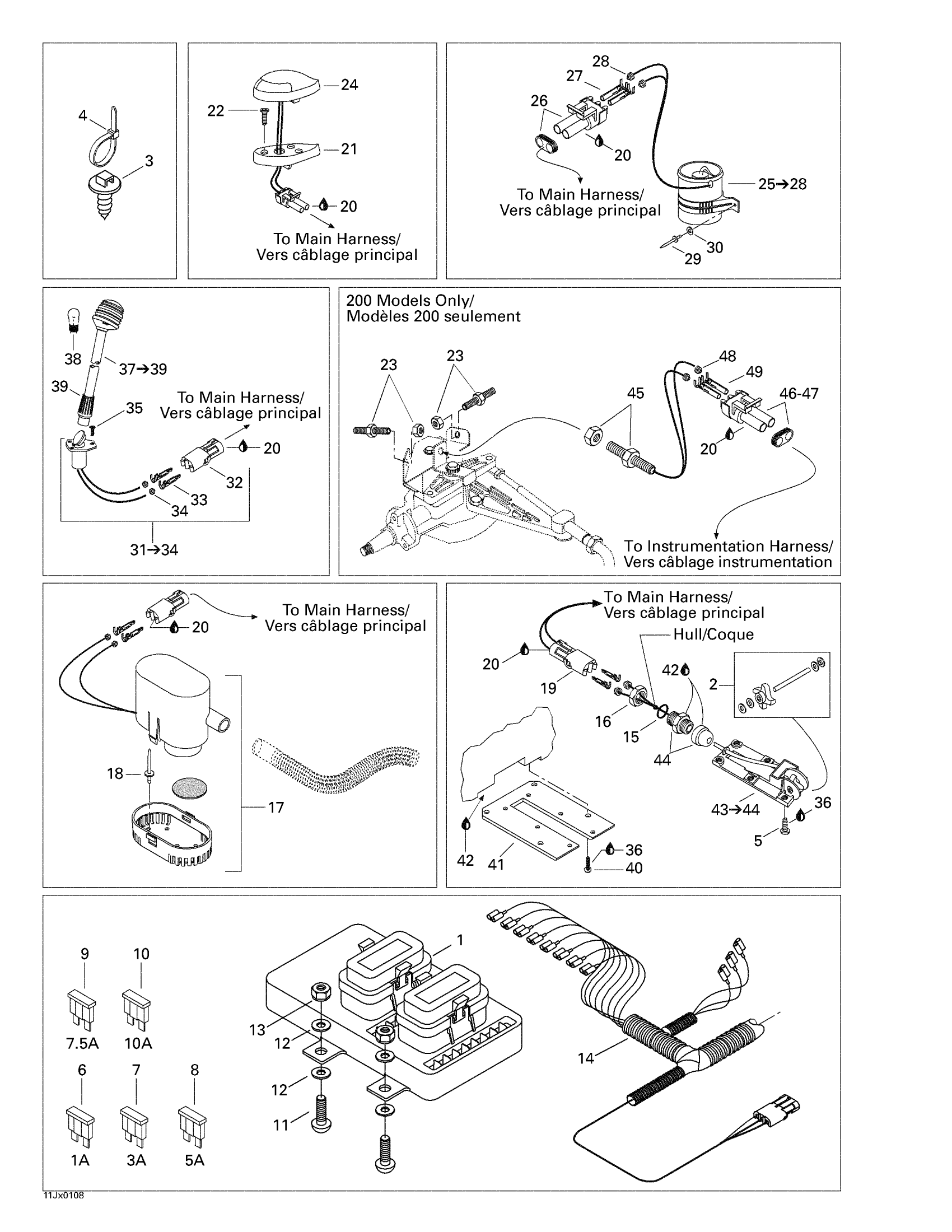

Sea-doo Utopia, 200 Optimax, 2001 10- Electrical Accessories 2 Diagram
#
1
Fuse Block
204470597
Unavailable
2
Paddle Wheel Kit
295500108
Unavailable
3
Mount Dart
293730040
$1.04
4
Tie-Rap 180 mm
414115200
$0.11
5
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
6
FUSE, 1 AMPERE - Call your local BRP dealership
409012800
Unavailable
7
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
8
Fuse, 5 Amperes | CE
278000344
$3.28
9
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
10
Fuse, 10 Amperes | North America
278001197
$2.21
11
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
12
Flat Washer M6, Stainless
234062600
$0.77
13
Hex. Elastic Stop Nut M6
232561600
$1.15
14
Harness | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204470624
Unavailable
15
SEAL WASHER - Call your local BRP dealership
278000416
Unavailable
16
LOCKING NUT - Call your local BRP dealership
293710032
Unavailable
17
Bilge Pump
204471431
Unavailable
18
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
19
Female Housing, 2 Circuits
278000217
$9.59
20
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
21
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
22
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
23
Low Speed Control Actuator
204470632
$42.99
24
Front Lamp
204470372
Unavailable
25
Fan Ass'y | Includes 44 to 47
204470108
$144.99
26
Male Connector, 2 Circuits
278000220
$15.49
27
Female Terminal
278000223
$3.19
28
Wire Seal
278000218
$4.39
29
Pop Rivet 3/16"
293150008
$0.50
30
Flat Washer 5 mm, Stainless
234052600
$0.77
31
REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.
204470642
Unavailable
32
Female Housing, 2 Circuits
278000217
$9.59
33
Male Terminal | XT Models
278000222
$3.19
34
Wire Seal
278000218
$4.39
35
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
36
Loctite 243, 10 ml
293800060
$21.49
37
REAR LAMP POLE - Call your local BRP dealership | Includes 26 to 28
204470625
Unavailable
38
Bulb
204470053
Unavailable
39
COLLAR - Call your local BRP dealership
204470350
Unavailable
40
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
41
Sensor Support
204470538
Unavailable
42
Silicone Sealant 51388, 300 ml
296000309
$36.99
43
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
44
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
45
LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50
204470631
Unavailable
46
Female Terminal Housing
204470634
Unavailable
47
Terminal Support
204470635
Unavailable
48
Wire Seal
204470641
Unavailable
49
Female Terminal
278001481
$3.49
