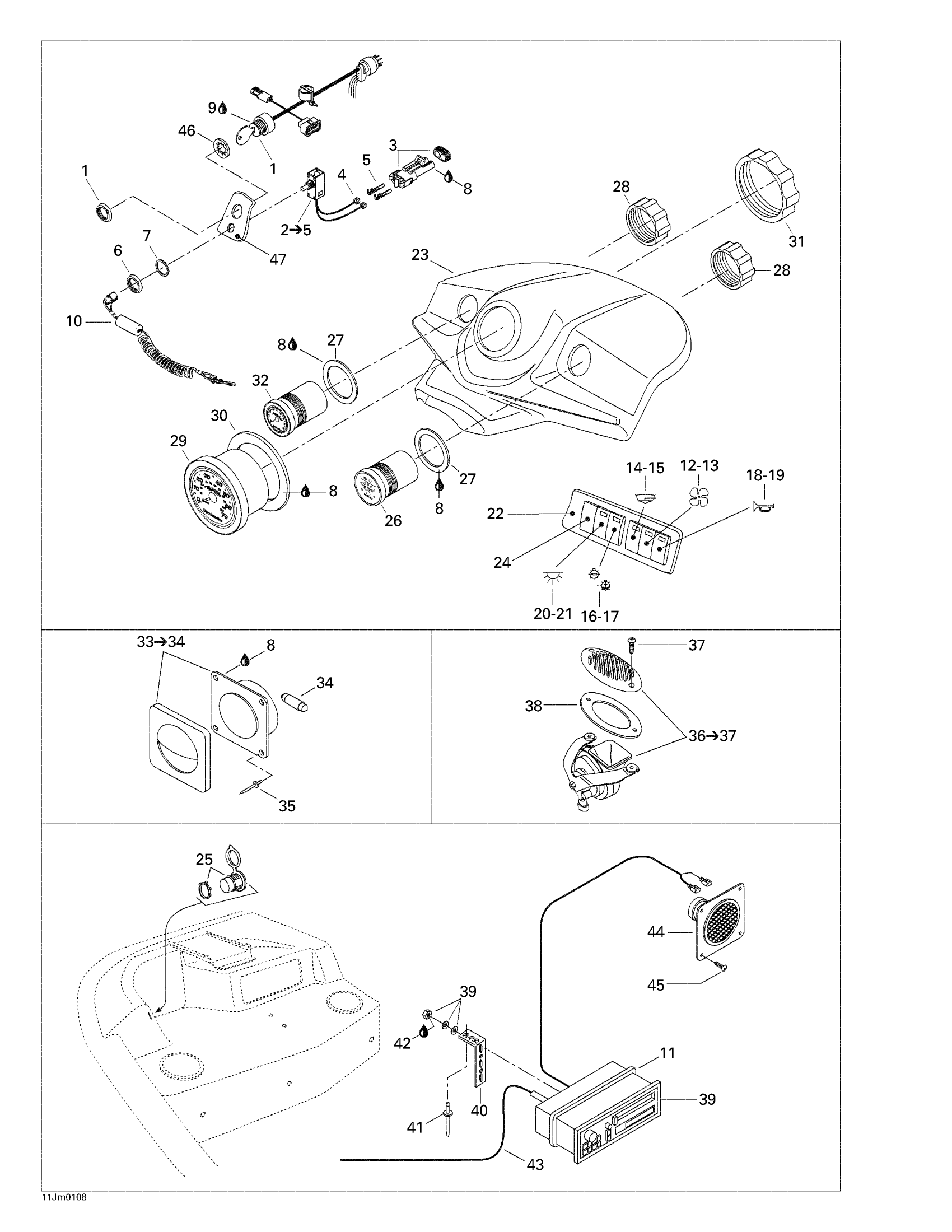

Sea-doo Utopia, 200 Optimax, 2001 Electrical Accessories 1 Diagram

#

Description
Price

1

Instrumentation Harness | CHALLENGER 1800 (5774).

204470630

Unavailable

2

Safety Switch | Includes 17 - 20.

204470463

Unavailable

3

Male Connector, 2 Circuits

278000220

$15.49

4

Wire Seal

278000218

$4.39

5

Female Terminal

278000223

$3.19

6

Safety Switch Nut

278000099

Unavailable

7

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

9

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

10

Safety Lanyard

278001431

$47.49

11

Radio Trim

204470647

Unavailable

12

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

13

Gasket

204470132

Unavailable

14

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

15

Gasket

204470132

Unavailable

16

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

17

Gasket

204470132

Unavailable

18

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

19

Gasket

204470132

Unavailable

20

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

21

Gasket

204470132

Unavailable

22

Switch Plate (Starboard)

204470623

Unavailable

23

Dashboard | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.

204470608

Unavailable

24

SWITCH PLUG - Call your local BRP dealership

204470596

Unavailable

25

DC Outlet

710001248

$37.99

26

Oil/Fuel Gauge 52 mm

204470604

Unavailable

27

Gasket

204470308

Unavailable

28

Gauge Nut

204470146

Unavailable

29

Speedometer Gauge 85 mm

204470605

Unavailable

30

Gasket

204470309

Unavailable

31

Gauge Nut

204470171

Unavailable

32

TACHOMETER - Call your local BRP dealership

204470606

Unavailable

33

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

34

BULB - Call your local BRP dealership

204470081

Unavailable

35

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

36

HORN - Call your local BRP dealership

204470801

Unavailable

37

SCREW-RD.HD.PH. - Call your local BRP dealership

211000100

Unavailable

38

Horn Gasket

293250108

Unavailable

39

Tape-Radio | CHALLENGER 1800 (5445).

204470377

Unavailable

Radio-Compact Disk

204470659

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Pop Rivet 3/16"

293150008

$0.50

42

Loctite 243, 10 ml

293800060

$21.49

43

Antenna

204470380

Unavailable

44

Speaker

204470378

Unavailable

45

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

46

Internal Tooth Lock Washer 1"

204100085

Unavailable

47

Switch Plate

204470645

Unavailable
